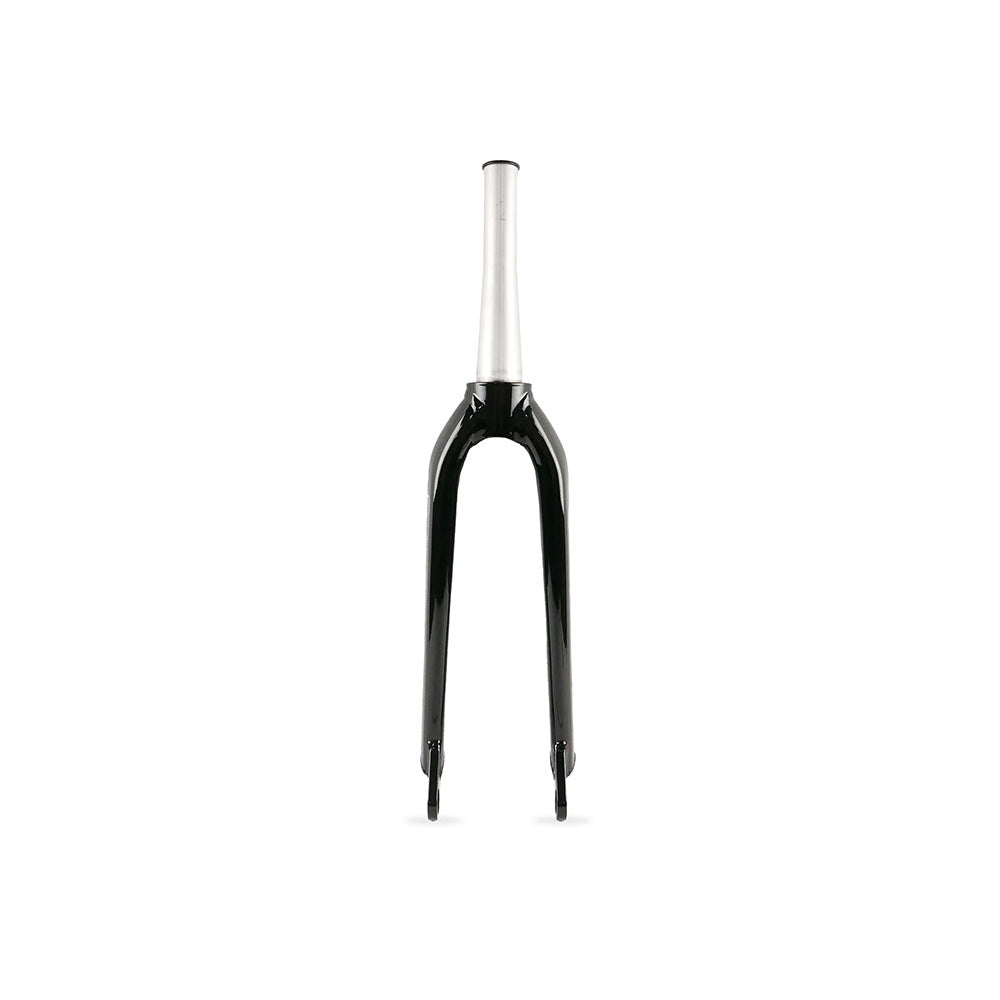

ARISE QUARTZ PRO FORK

A slim and lightweight PRO sized fork made with a full 6061-T6 alloy steerer tube with hydroformed legs and cnc detailed dropouts. Utilizing a special fork leg shape for the perfect balance between aesthetics and performance. Incredibly stiff and lightweight when compared to a carbon fiber fork. Laboratory tested and race proven. For a tapered 1.5”- 1 1/8” steerer tube and 20mm thru axle or 3/8” front hubs.

Material: 6061-T6 alloy steerer tube, fork legs and dropouts
Color: Black
Machining: fully cnc machined alloy steerer tube, hydroformed alloy legs and cnc dropouts
Steerer Tube: 1 1/8”-1.5” tapered steerer, 180mm long
Dropouts: 20mm thru axle (includes adaptors for 3/8"/10mm female bolt hubs)
Offset: 31mm
Axle to crown: 307mm
Max Tire Size (inc 3mm Clearance Min): 50mm
Top Bolt: Includes Includes M18 thread Quartz Fork Compression Bolt
Weight: 766g (27oz / 1.68lbs)

Features:
• super lightweight fork for PRO riders
• 100% 6061-T6 alloy steerer, legs and dropouts
• super stiff and durable fork with oversize welds for increased durability
• 20mm thru-axle dropouts with 3/8” adaptors
• to fit 39.8mm crown races

WEIGHT LIMIT 115KG
