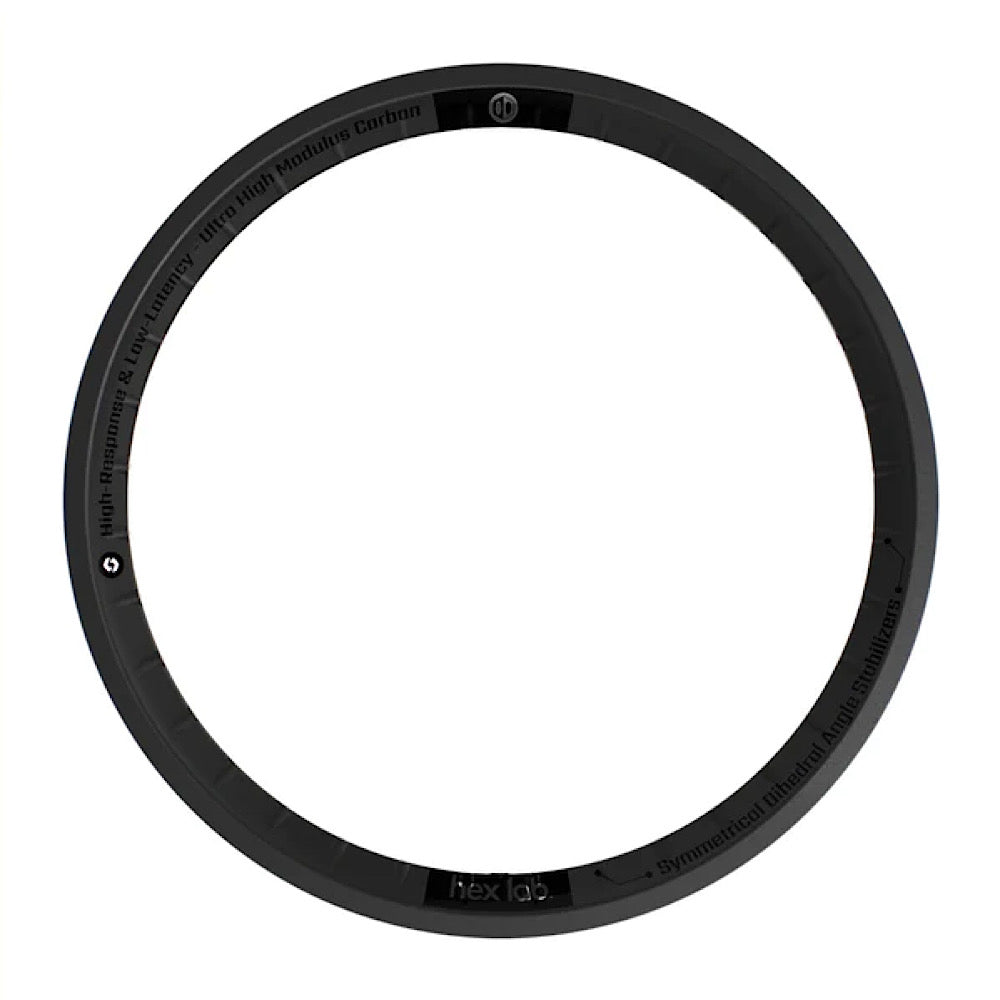

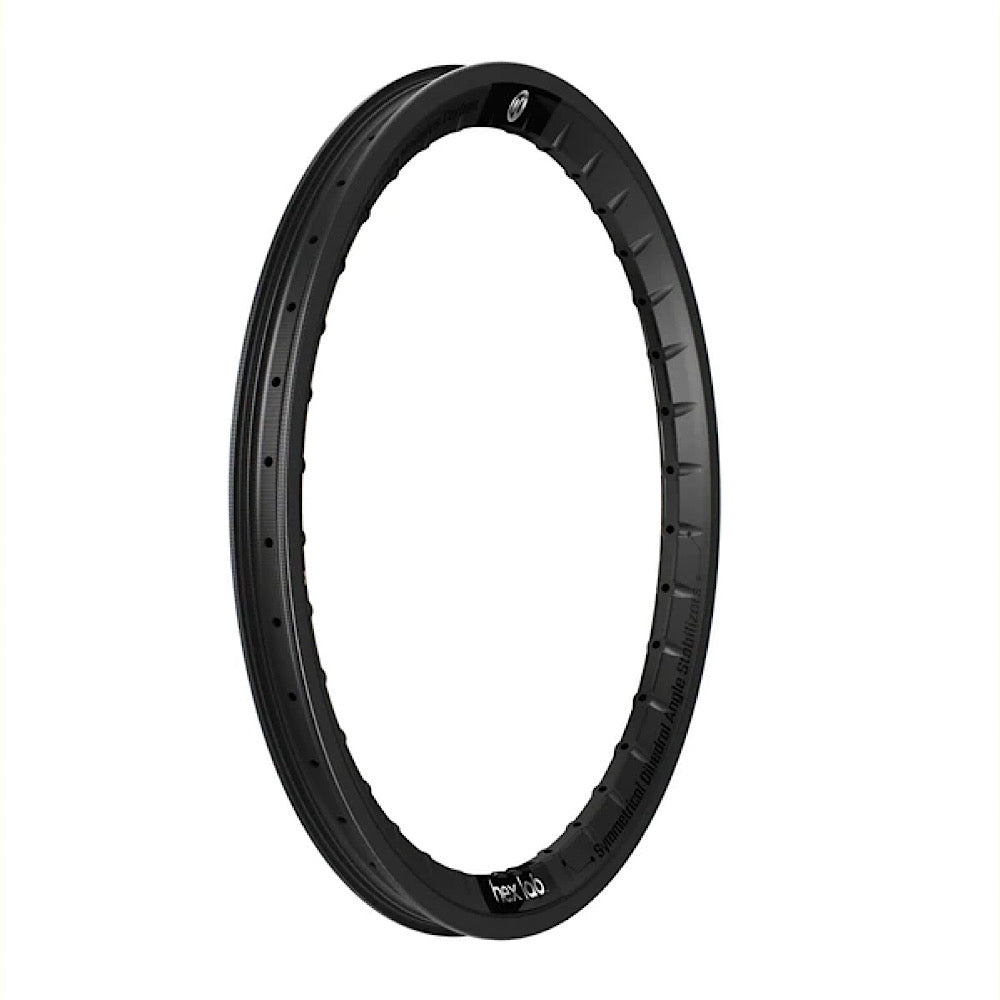

BOX HEX LAB CARBON BMX 20 X 1.75" FRONT RIM

The Hex Lab Carbon BMX Rims are the only rims in the Box line-up to feature Oversized Technology. They also pack Ultra High Modulus Carbon Fiber (stiffer than other carbons variants). Take notice of the unique Symmetrical Dihedral Angle Stabilizers. Yes, it’s a mouthful but each of those words carries meaning. The sculpted bullet-shaped spoke beds are designed to bridge the angle between the rim's angled flanks and the vertical plane. With that, we achieve the stability, stiffness, and durability of a much broader rim profile without actually taking on most of the extra material.

Specifications

Material: Ultra High Modulus Carbon Fiber
Process: Vacuum Mold
Hole Drilling: 36
Seam: None
Valve Hole: Presta
Finish: Matte Black with Foil Stamped Chrome Logos
Compatibility:
• Tubeless: Tubeless-Ready
• Brake:
• Rear: Brake
• Front: Brake-Less Profiles
• Tire Size: 20 x 1.50 to 1.95"
Size:
• Diameter: 20”
• External Width: 30mm
• Internal Width: 23mm
• ERD: 364mm
• ISO (E.T.R.T.O): 406mm (front and rear)
Weight: 315g/ 11oz (front and rear)
