BOX ONE CARBON INTEGRATED TAPERED HEADSET 1.5"
BOX ONE CARBON INTEGRATED TAPERED HEADSET 1.5"
BOX ONE CARBON INTEGRATED TAPERED HEADSET 1.5"
BOX ONE CARBON INTEGRATED TAPERED HEADSET 1.5"
BOX ONE CARBON INTEGRATED TAPERED HEADSET 1.5"

BOX

BOX ONE CARBON INTEGRATED TAPERED HEADSET 1.5"

Sale price$99.99 USD
Color:

Color

Quantity:

Pickup currently unavailable at Full Tilt Bike Co Isanti

BOX ONE CARBON INTEGRATED TAPERED HEADSET 1.5"

RED

Full Tilt Bike Co Isanti

Pickup currently unavailable

101 Isanti Parkway Northwest
Isanti MN 55040
United States

WAREHOUSE

Pickup currently unavailable

3909 County Road 115
Saint Augusta MN 56301
United States

+13163085435

FULL TILT BIKE CO trailer

Pickup available, usually ready in 24 hours

4145 E 21st St
Tulsa OK 74114
United States

+13204230559

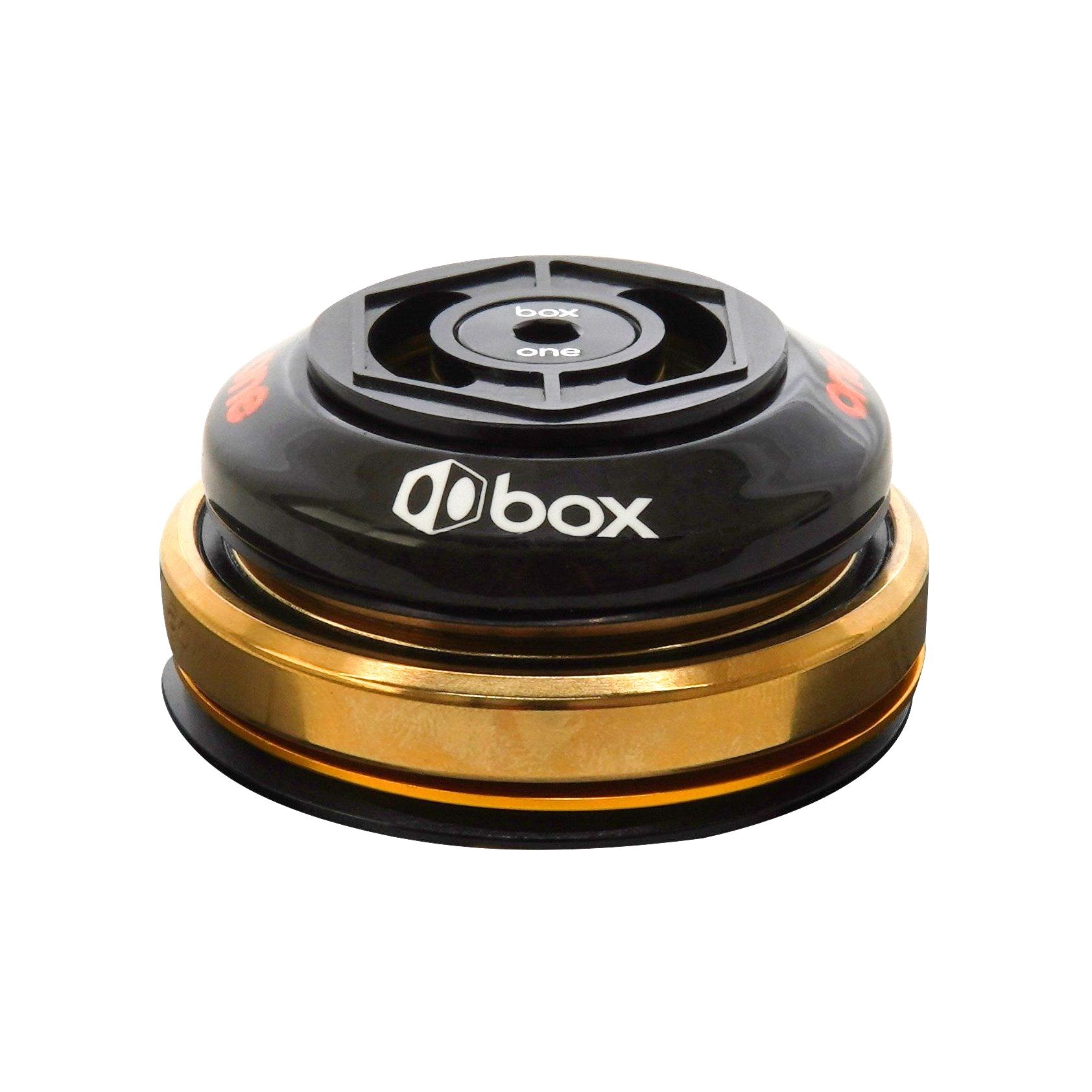

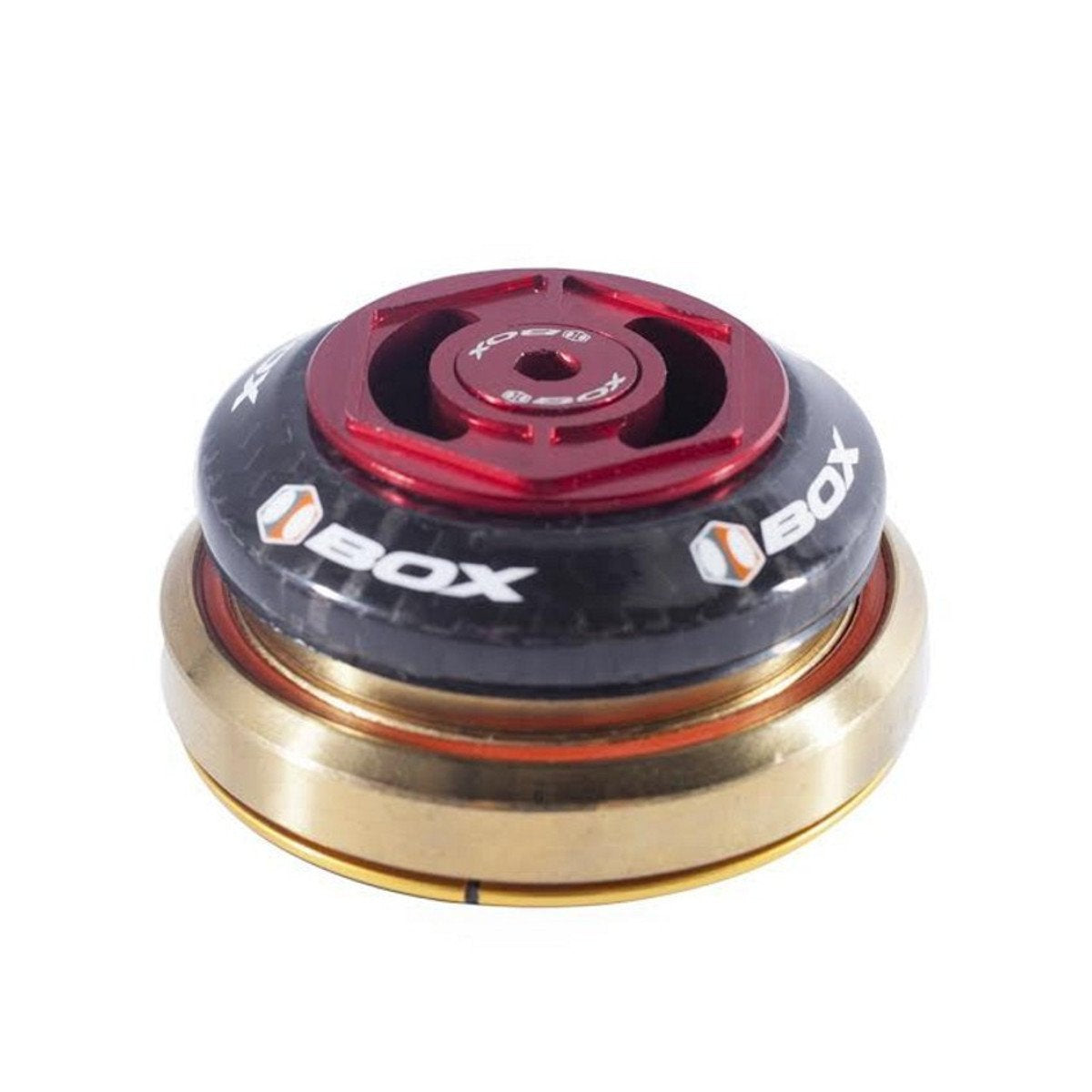

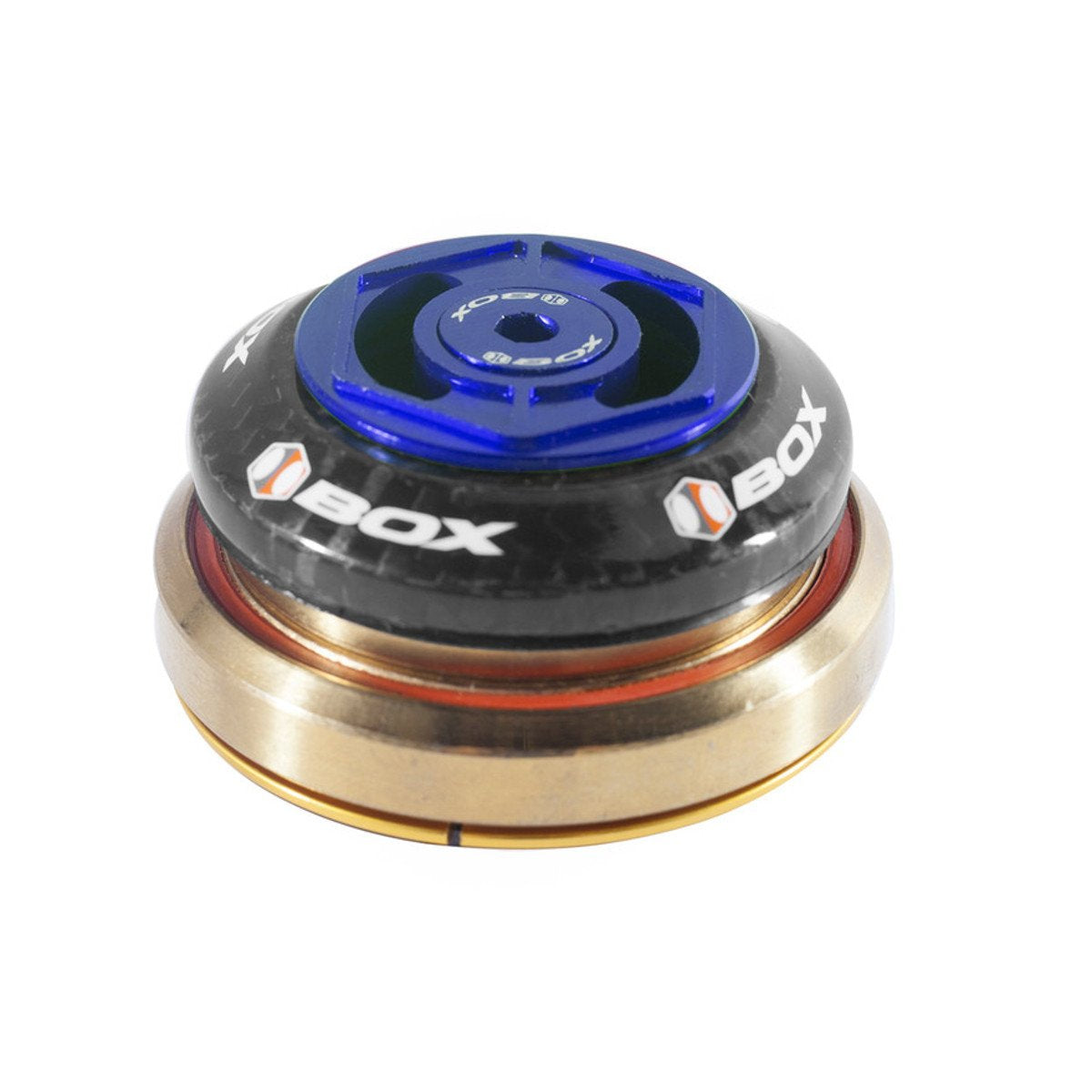

From top to bottom, the Box One™ Carbon Tapered Headset was designed to perform.

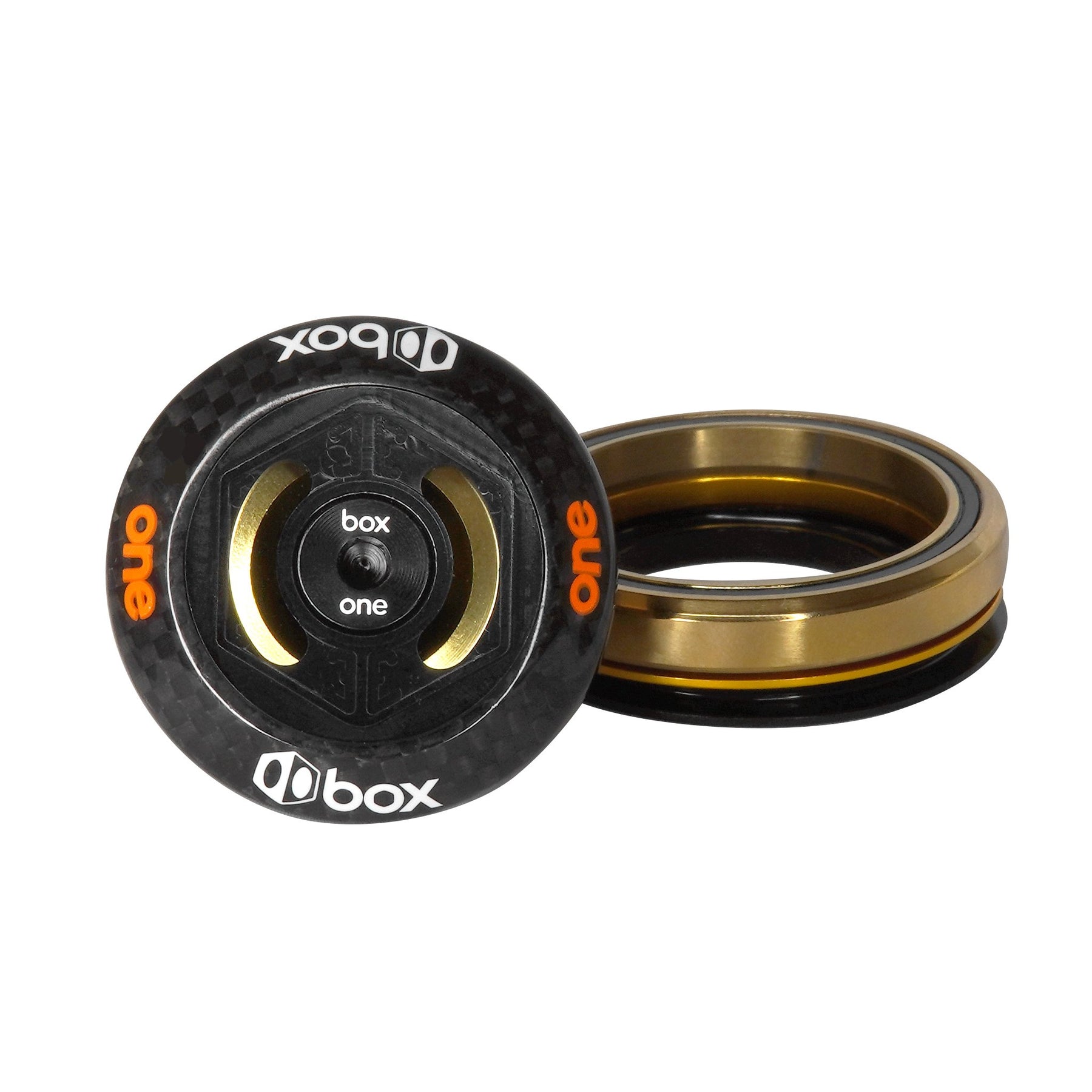

Each unit features a custom CNC-machined aluminum compression cap in the shape of the Box logo with cut-outs to reduce weight.

At the center of the top cap is an anodized aluminum bolt that threads into a gold anodized aluminum expander plug. This expander eliminates the need for a star nut and works with all 1-1/8-inch steerer tubes—even carbon fiber steerer tubes.

The top bearing cover is crafted from carbon fiber, which adds style and shave weight.

At the heart of the headset are two super-smooth, titanium-nitride coated, sealed, 45×45 bearings. The titanium coating results in a low friction coefficient, increased corrosion resistance, and smoother rolling bearings.

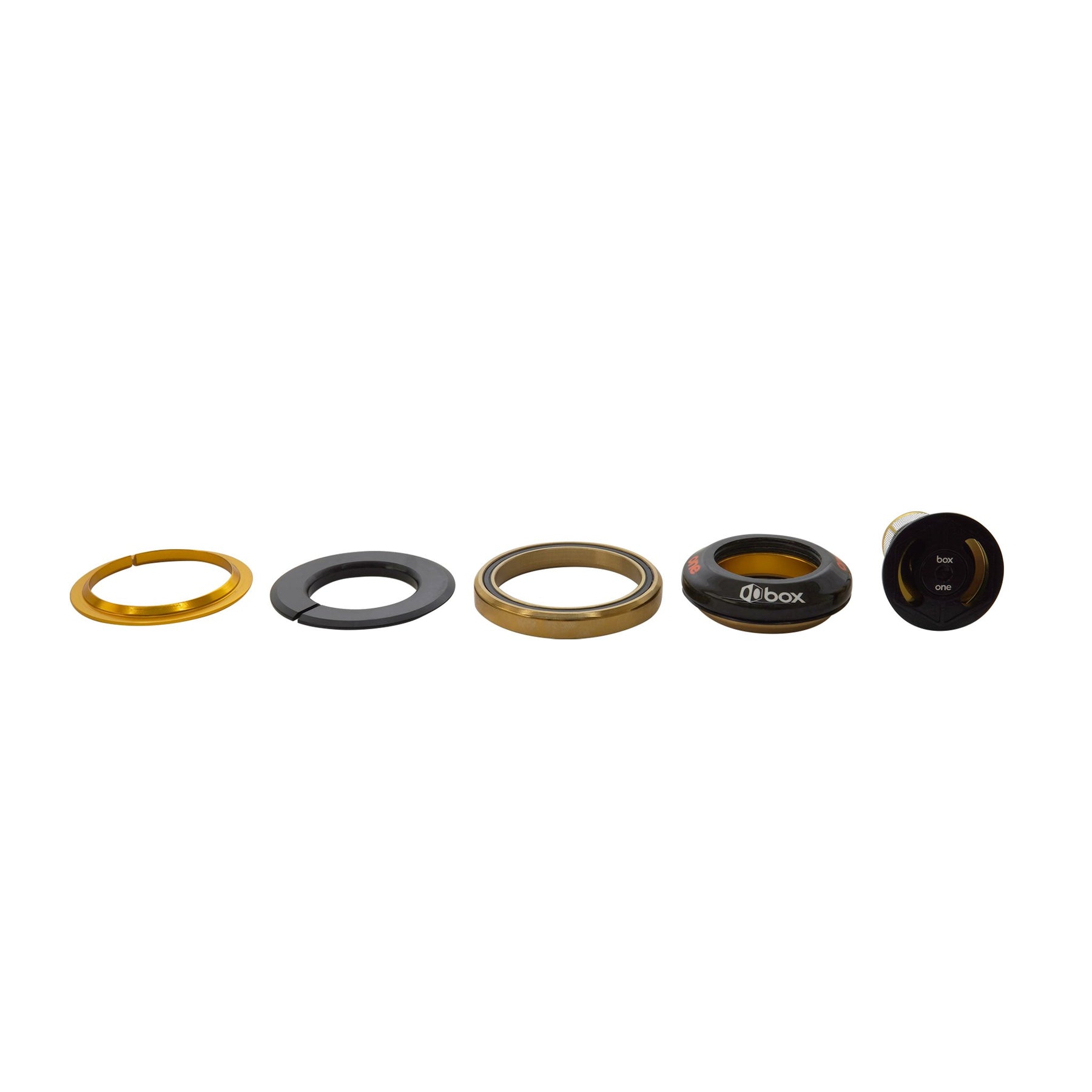

A split crown race makes installation and removal from forks super easy. Box 1.5-inch headsets are intended for tapered frames and forks and include an adapter crown race that allows you to run a fork with a straight 1-1/8-inch steerer tube.

FEATURES

  • Carbon Fiber Bearing Cover
  • Titanium-Nitride Coated Sealed Bearings
  • Aluminum Expansion Plug
  • 1.5" and 1-1/8" Crown Races Included
  • SPECIFICATIONS

    Bearing Angle 45° x 45°
    Material Aluminum, Carbon-Fiber
    Recommended Torque 9-10 Nm (Expander), 1.5 Nm (Compression Cap)
    SHIS IS 42/28.6 | IS 52/40 (IS 52/30 w/ adapter)
    Weight 107 grams / 3.8 ounces or 111 grams / 3.9 ounces (w/adapter)



     COMPATIBILITY



  • Box One X5 Fork
  • Box One X2 Fork
  • Box One XL Fork
  • Frames with an Integrated and Tapered Head-Tube
  •
