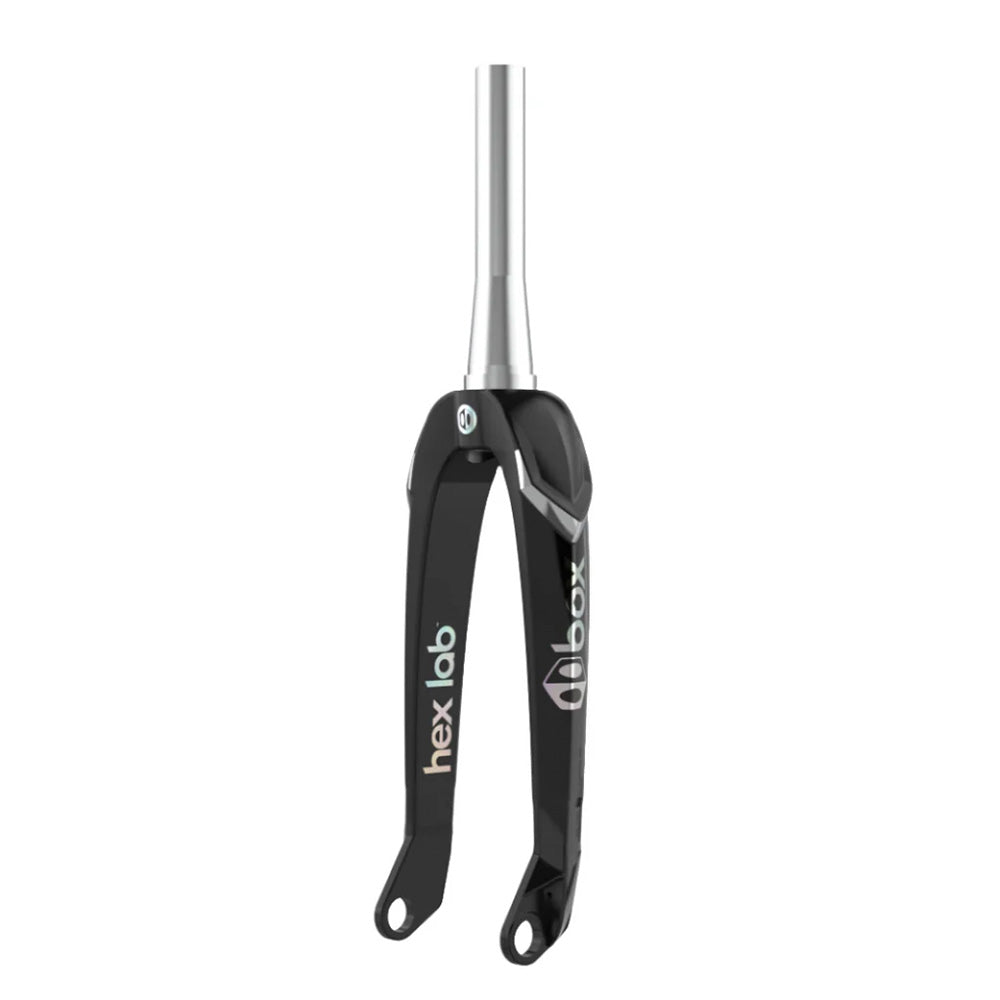

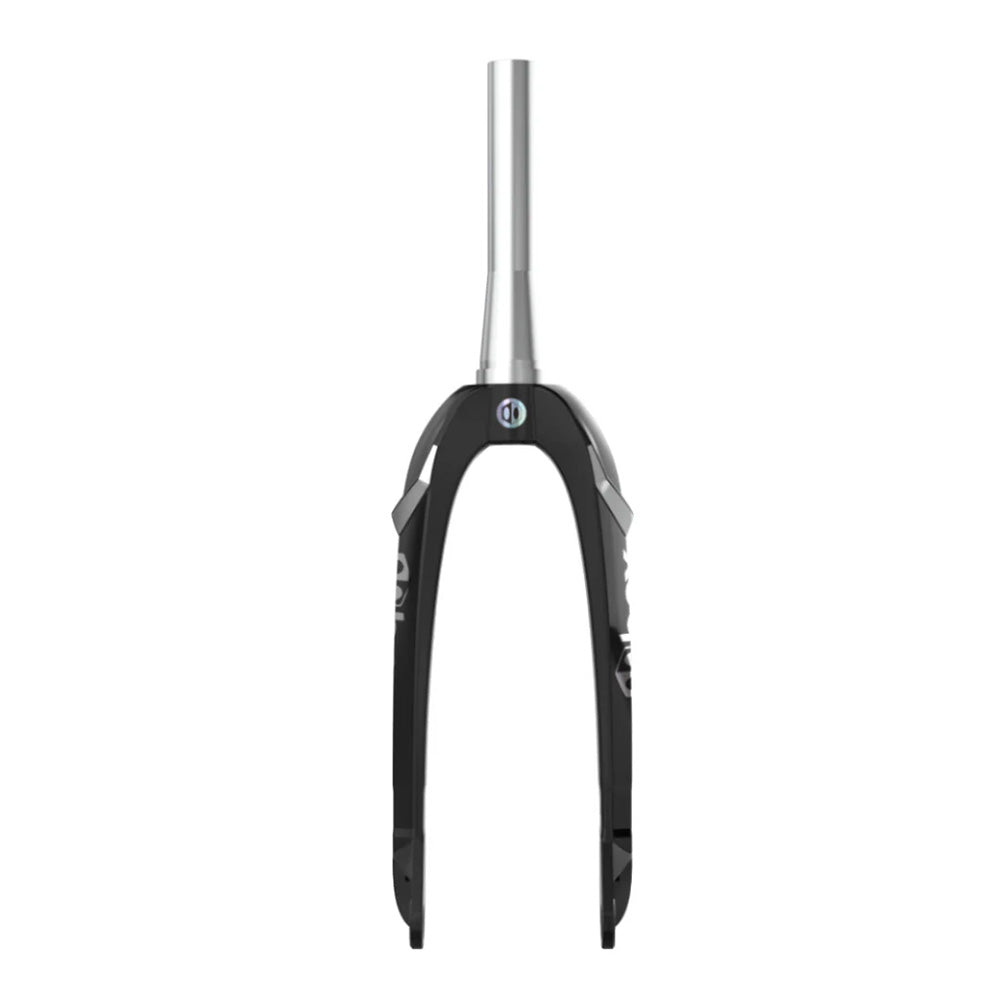

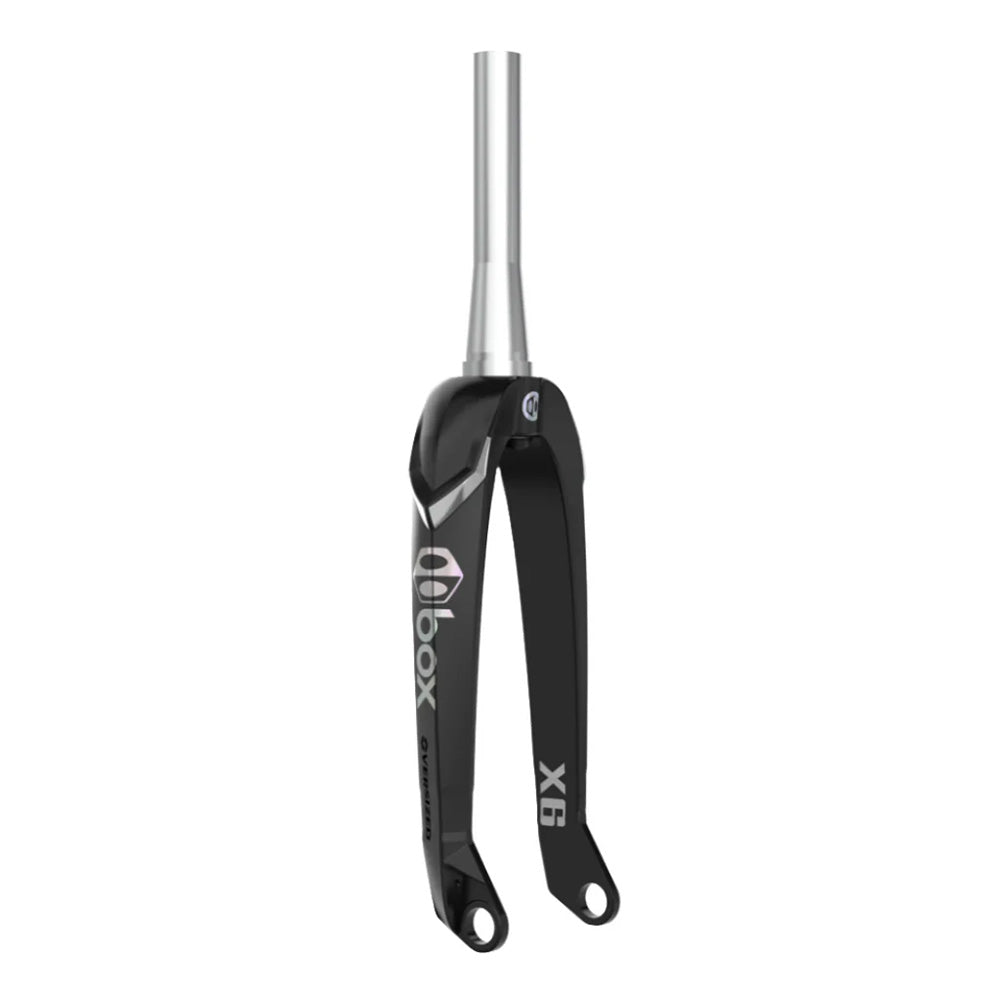

All Box One forks are engineered and crafted using Oversized Technology. These forks are the single most important component in the quest for bike control. Box moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.
Key differences: This model fork showcases cutting-edge Oversized Technology, featuring a 1.5 to 1-1/8 inch titanium steerer tube for unparalleled strength and precision. Designed with increased tire clearance and larger hips, it delivers enhanced stiffness and performance. The inclusion of robust 20mm thru axle cold-forged dropouts ensures maximum durability and stability. Say goodbye to deflection and hello to superior control and reliability.
Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard
• Legs: High Modulus Unidirectional Carbon Fiber
• Steerer: 6Al-4V Titanium
• Butterfly & Dropouts: 6061-T6 Aluminum
• Legs: Vacuum Mold
• Steerer: Extruded & CNC
• Butterfly & Dropouts: Cold-Forged
• Height: 20”
• Steerer: 1-1/8" tapers to 1.5"
• Offset: 32mm
• Dropouts: 20mm
• Axle to Crown: 302.6mm
• 20”: 615g/21.7oz
