BOX
BOX TWO ALLOY EXTERNAL BB 68/73MM
COLOR
BOX TWO ALLOY EXTERNAL BB 68/73MM
24MM / BLACK
Full Tilt Bike Co Isanti
101 Isanti Parkway Northwest
Isanti MN 55040
United States
WAREHOUSE
3909 County Road 115
Saint Augusta MN 56301
United States
FULL TILT BIKE CO trailer
4145 E 21st St
Tulsa OK 74114
United States

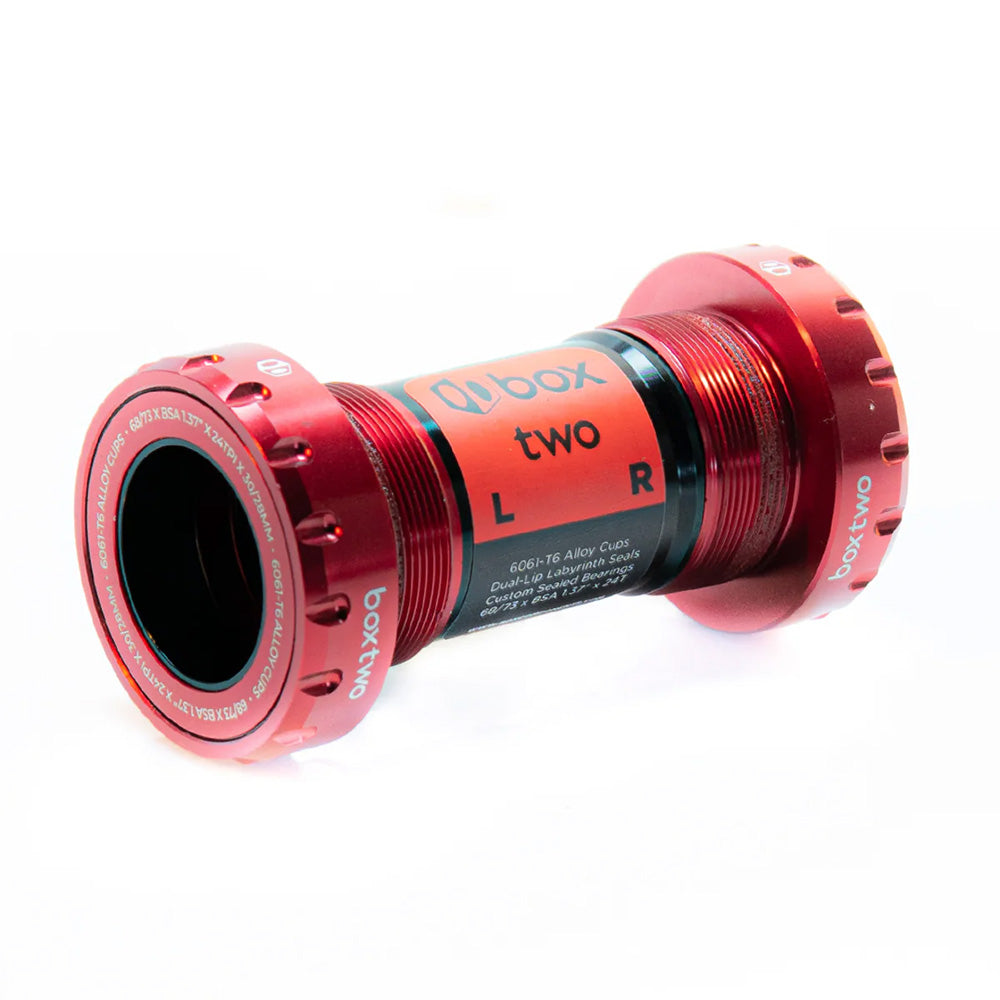

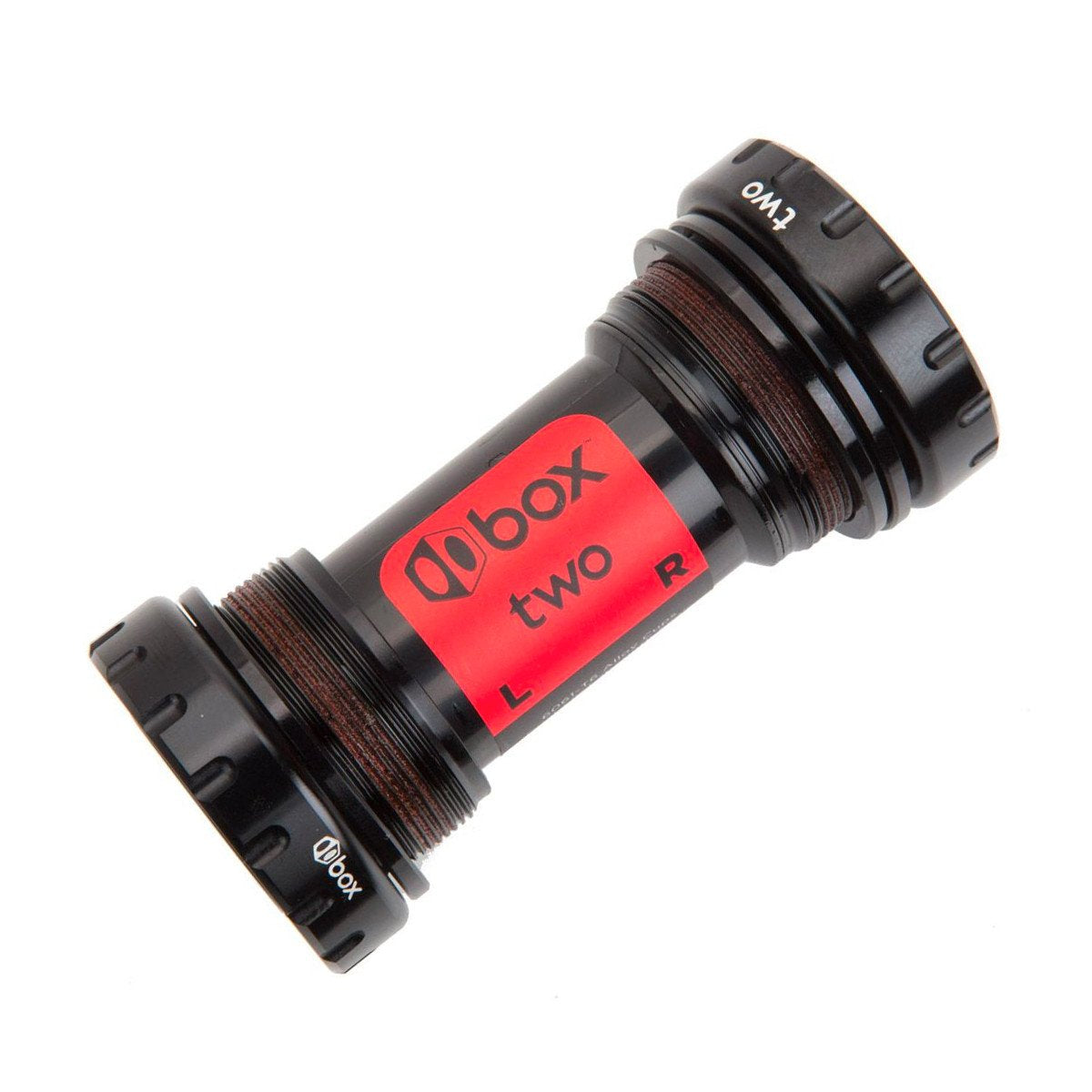

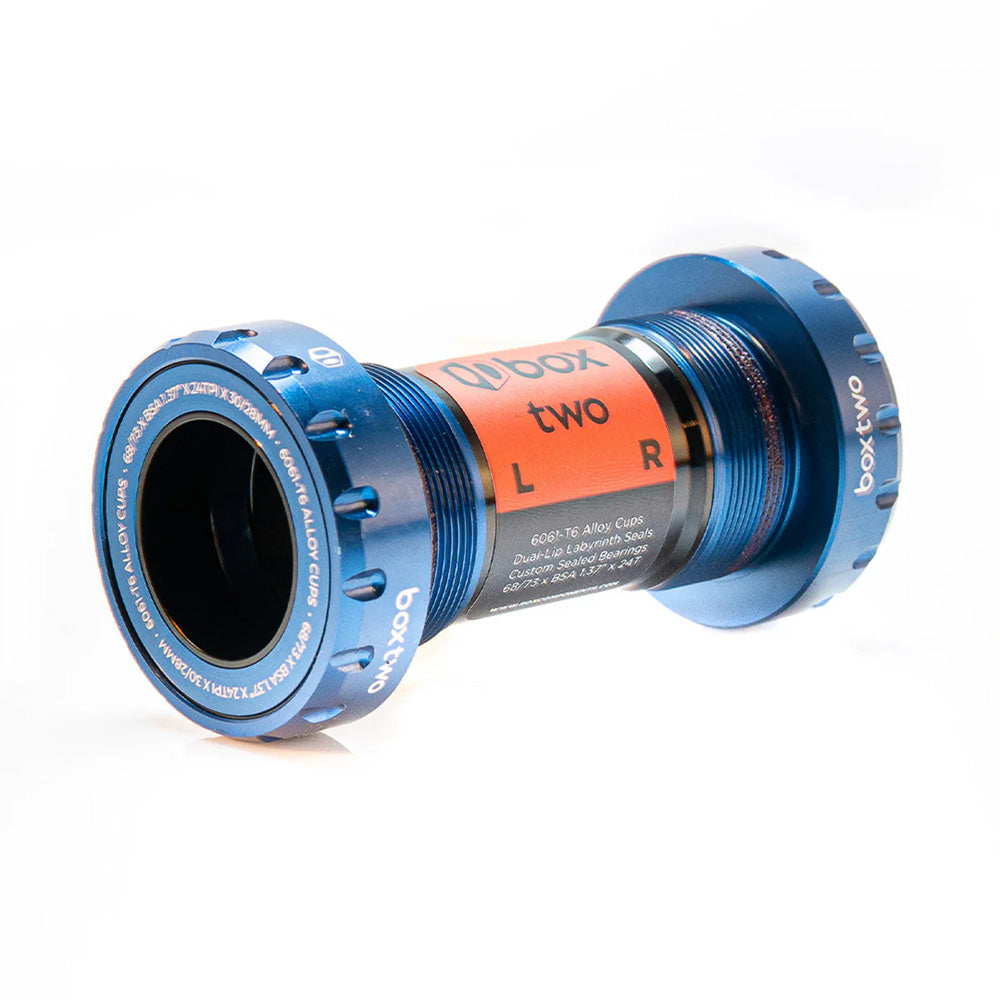

Box Two™ External bottom brackets feature cold-forged, CNC-machined alloy cups, dual-labyrinth bearing covers, and precision sealed bearings. The 24mm variants are the perfect match to Box Three™, Four cranks, and the ultimate upgrade to the budget BBs sold with most cranksets. Box Two™, 24mm External Bottom Brackets, are designed to fit all 24-millimeter crank spindles and frames with 68 or 73 x BC 1.37-inch bottom bracket shells.
Also available in a 30mm version, The Box Two M30 bottom bracket is a slightly less acute embodiment of Oversized technology seen in the M35. Generously sized ABEC-5 bearings help reduce power loss to defection. The larger 30mm cross section is designed to mate up with the rest of the M30 line of Oversized crank sets. (30mm on one side with a tapered 28mm on the other end)
FEATURES
- High-Impact Anodizing
- 24mm Outboard Bearings (24mm version)
- ABS Plastic Sleeve
- Abec-5 Bearings
- CNC-Machined Alloy Cups
SPECIFICATIONS
Compatibility | Box Three™, Box Four™, Shimano HollowTech II, RaceFace X-Type |
Material | 6061-T6 Aluminum |
Shell Width | 68/73mm |
Spindle Type | 24mm |
Thread | 1.37 Inch x 24 TPI (English) |
Weight | 105 grams / 3.7 ounces |
30mm
Spindle Type: Box/Praxis™ M30 only
Shell Width: 68mm/73mm
Compatibility:
• Shell: BSA (Euro) Threaded
• Spindle: Box One™ M30-M, Box Two™ M30-P
Weight (+/- 5%): 110 g / 3.9 oz
