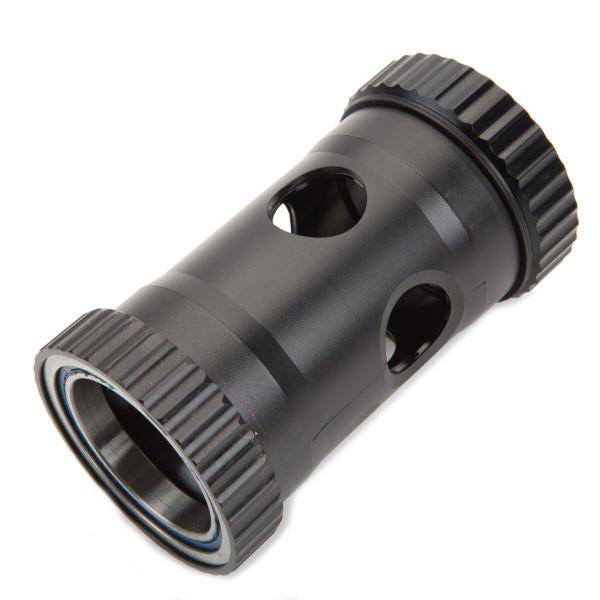

BOX TWO EXTERNAL BOTTOM BRACKET 35MM

BOX

BOX TWO EXTERNAL BOTTOM BRACKET 35MM

Sale price$124.99 USD
Sold out
Color:

Color

Pickup currently unavailable at FULL TILT BIKE CO trailer

BOX TWO EXTERNAL BOTTOM BRACKET 35MM

BLACK

FULL TILT BIKE CO trailer

Pickup currently unavailable

23610 67th Avenue
St. Cloud MN 56301
United States

+13163085435

Several of the upper tier Box bottom brackets were engineered using Oversized Technology. There is no use pushing hard on your pedals if you can’t deliver most of that power to the rear wheel. During the creation of this bottom bracket, Box was obsessed with Power delivery (AKA) pedaling stiffness. To reduce lateral deflection Box chose to oversize the bottom bracket and therefore subsequently enlarged the spindle and the crank arm’s interfaces. This made room for larger bearing rings contributing to a vast increase in contact area. They robbed material from unloaded sections to reinforce the zones of high stress. Not only are you going to be more efficient with power delivery, but you’ll also feel the instant response of acceleration. Seen through another lens, less energy will be required to achieve the same elapsed time.

Key differences: The Box Two M35 bottom bracket takes the oversized effort to an extreme with a colossal 35mm diameter cross section courtesy of Praxis™. That dimension might seem massive, but they’ve also employed the use of Enduro’s burly but smooth gliding precision bearings to support that decision. Remember, you’ll need a modern frame to cope with this kind of technology.

FEATURES

  • ABS Plastic Sleeve
  • BB30 or PF30 Compatible
  • Outboard Bearings
  • Enduro™ Bearings
  • Oversized™ 35mm
  • Oversized Technology™

SPECIFICATIONS

Compatibility Box One™ M35 only
Shell PF30 or BB30 only
Spindle Type Box/Praxis™ M35 only
Weight 138 grams / 4.9 ounces
