Sale price$709.99 USD
COLOR:

COLOR

Quantity:

Pickup available at FULL TILT BIKE CO trailer Usually ready in 24 hours

CHASE EDGE EXPERT XL 2024

CEMENT

FULL TILT BIKE CO trailer

Pickup available, usually ready in 24 hours

23610 67th Avenue
St. Cloud MN 56301
United States

+13163085435

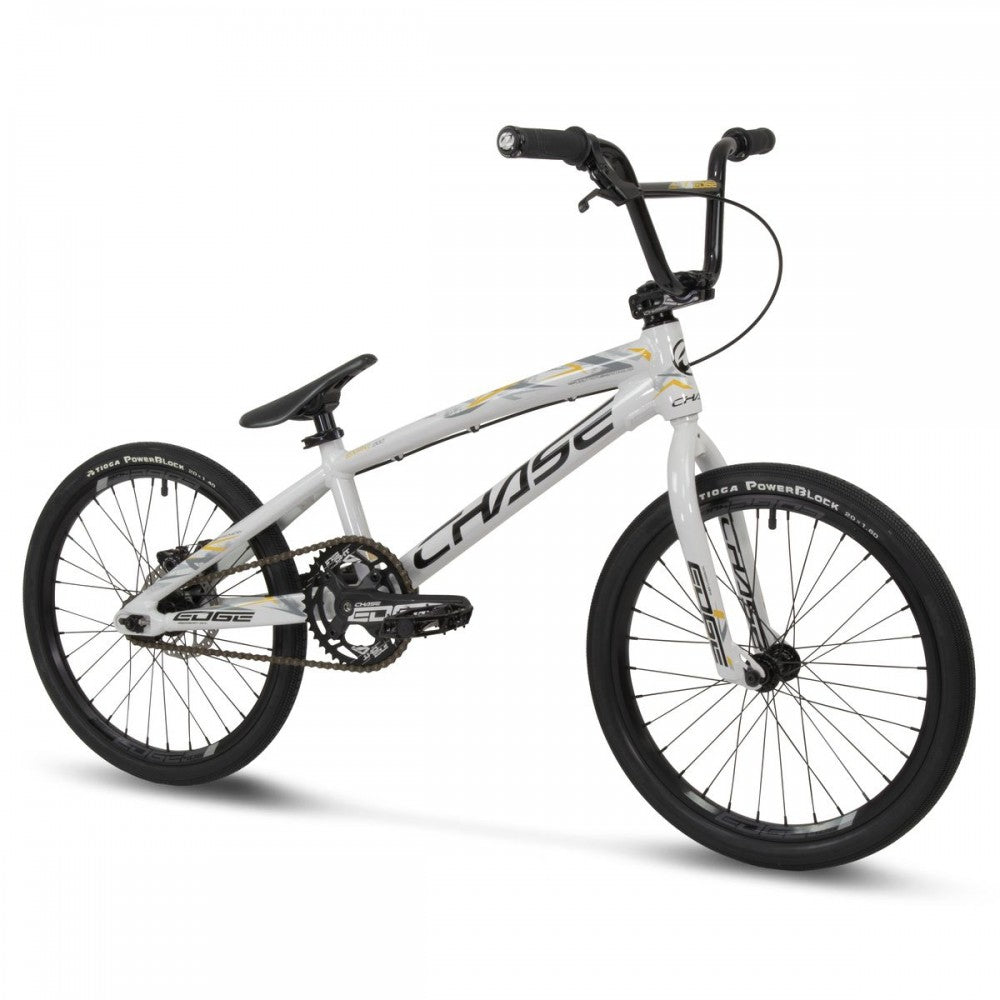

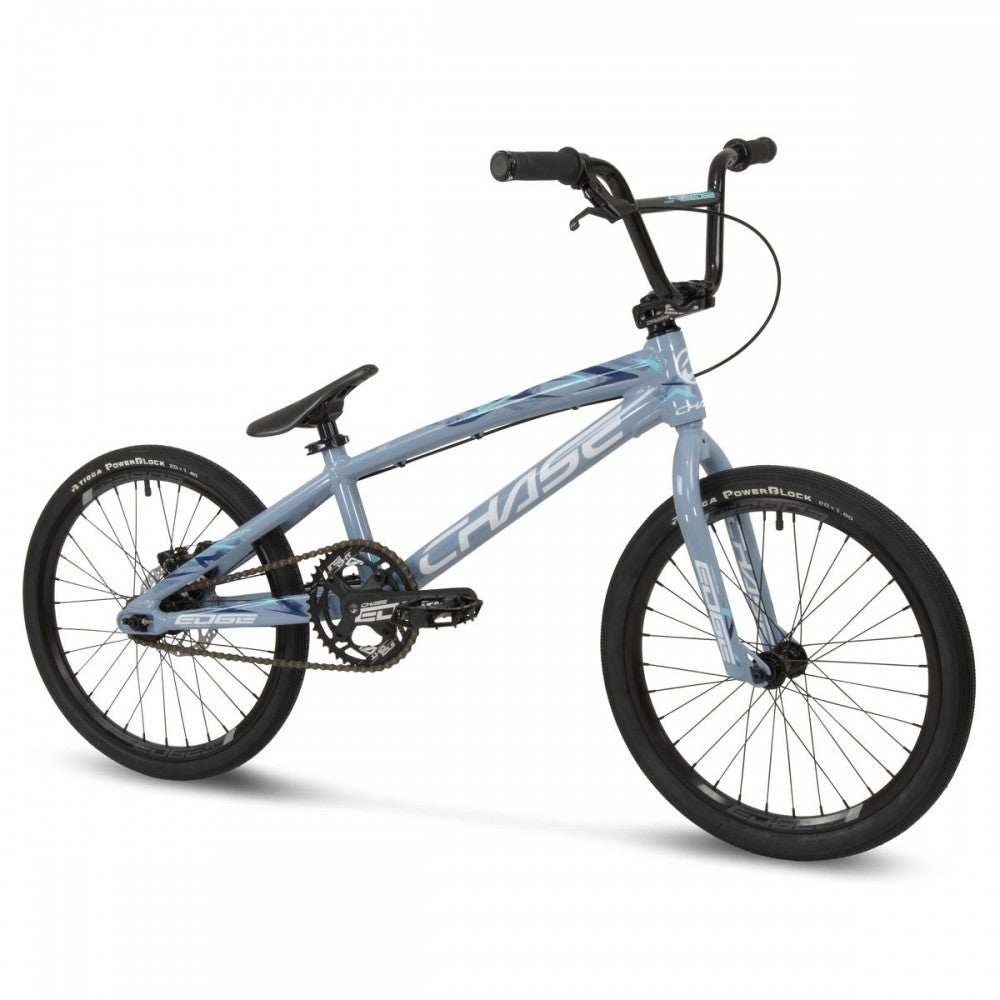

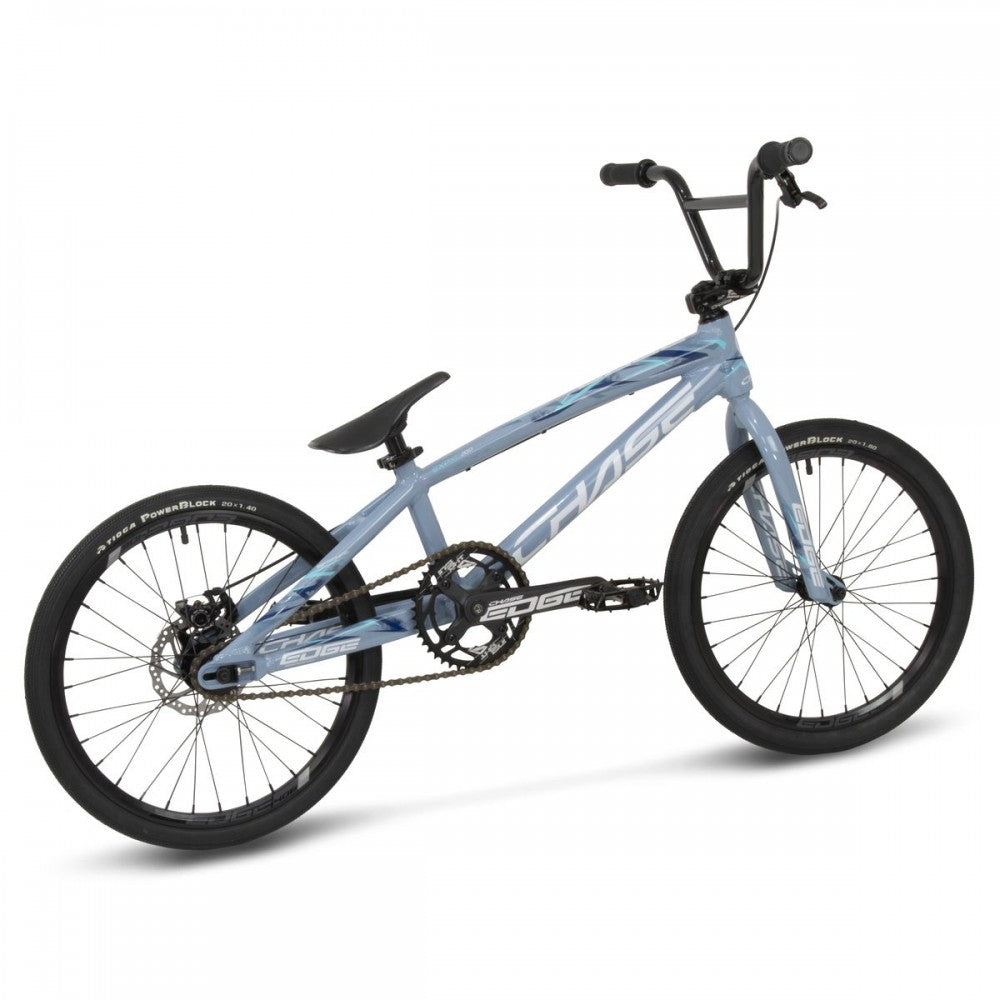

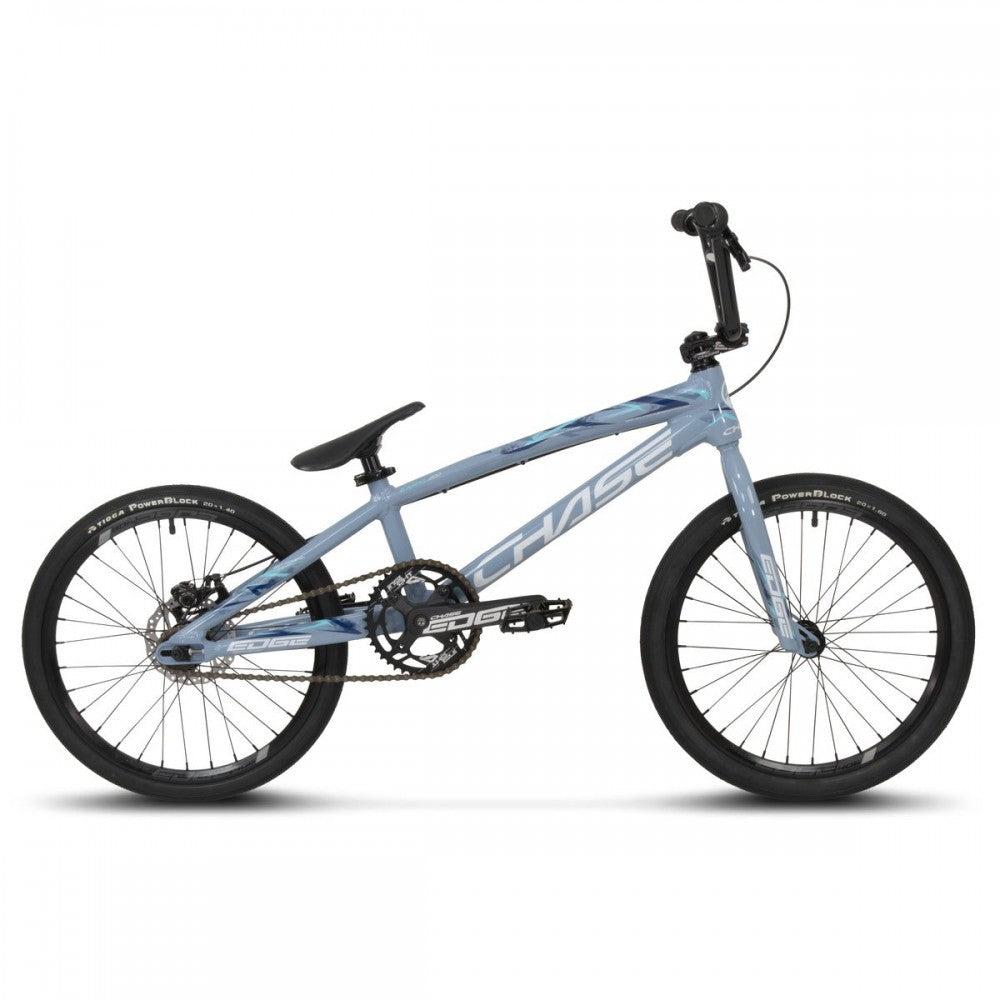

The CHASE Edge is a pure BMX racing machine, ideal for improving and taking it to the next level after starting the BMX Race. Now equipped with a disc braking system and closed rear dropout system, it has a hydroformed triple butted 6061 aluminum frame with integrated headset, a chromoly fork and handlebars, a crankset with INSIGHT chainring, double wall rims with cassette rear hub and TIOGA Powerblock tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes on the market today.

FEATURES:

  • Aluminum 6061-T6 Triple butted frame 20"TT
  • Integrated headtube 1-1/8" and enclosed rear dropouts
  • 100% Chromoly fork and handlebar
  • Mechanical disc braking
  • Chase Edge Alloy Stem 50mm Top Load
  • Chase Edge 3 Piece Crank 170mm, Chromo Chainring bolts
  • Euro ISIS bottom bracket
  • 42T Insight Chainring 4 points BCD 104mm
  • Mini 32H alloy hubs, sealed bearings
  • Rear ISO bracket cassette hub 16T cogs
  • Chase Double Wall Alloy rims 20x1.50"
  • TIOGA PowerBlock tires Wire Bead
  • KMC Z1 chain
  • RECOMMENDED SIZE: 1m44 – 1m55
  • WEIGHT: 8.85Kg without pedal

GEOMETRY

  • Frame Size: Expert XL
  • TT: 20" / 508 mm
  • CS min: 13.5" / 353 mm
  • LR: 1.8" / 46 mm
  • AF: 73°
  • SA: 72°
  • HT: 4.7" / 120 mm
  • SPL: 8.8" / 225 mm
  • BBH: 11.5" / 292.1 mm
  • Wheels: 20×1.50"
