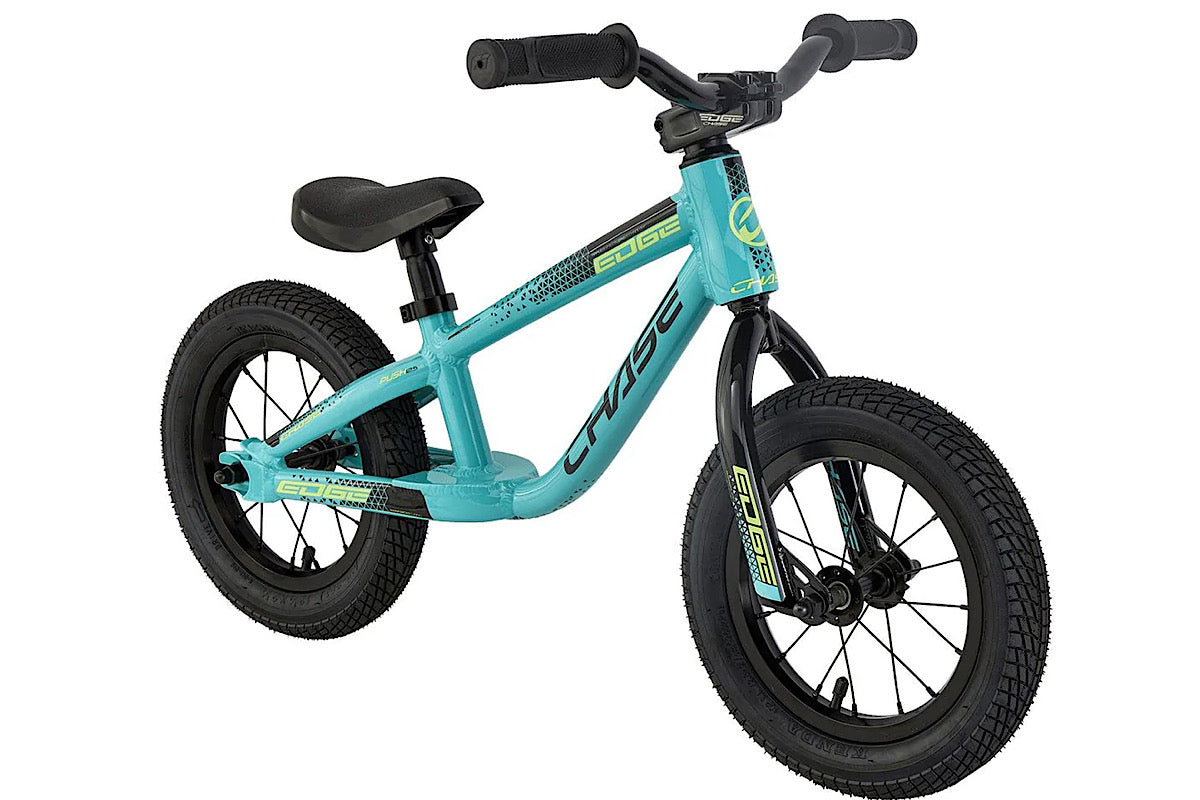

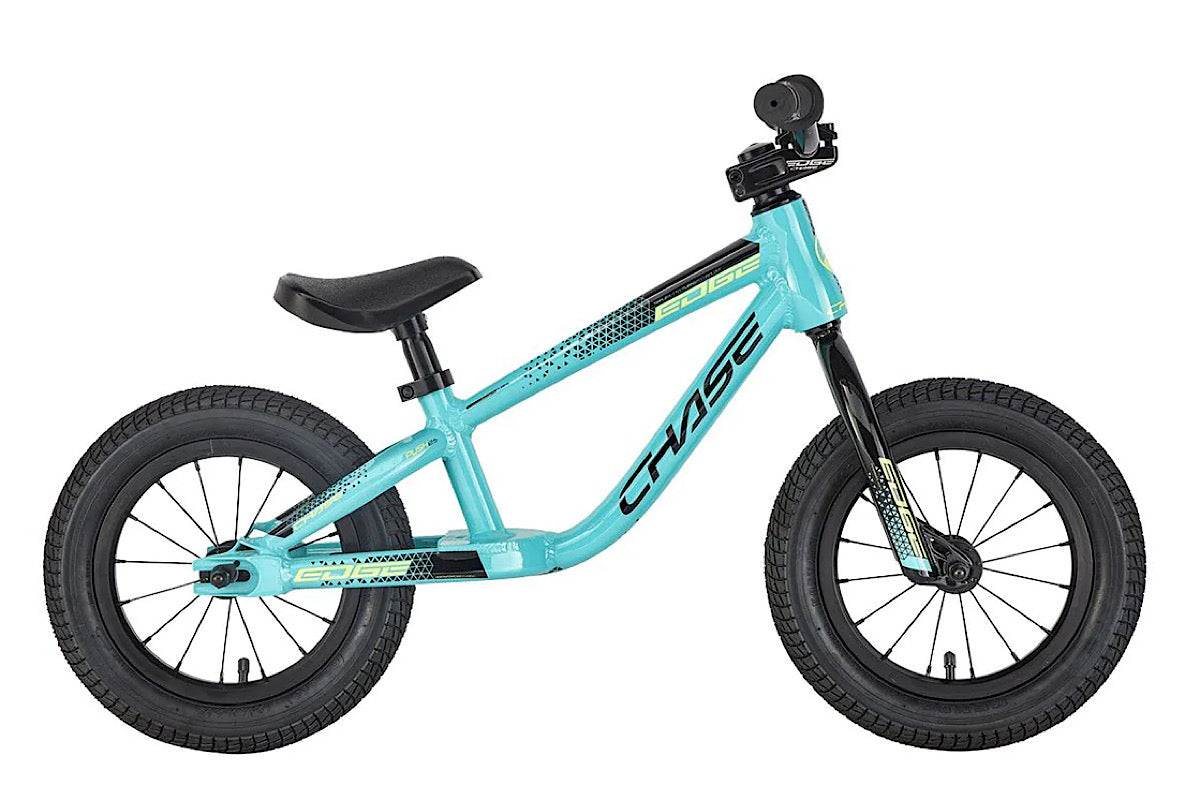

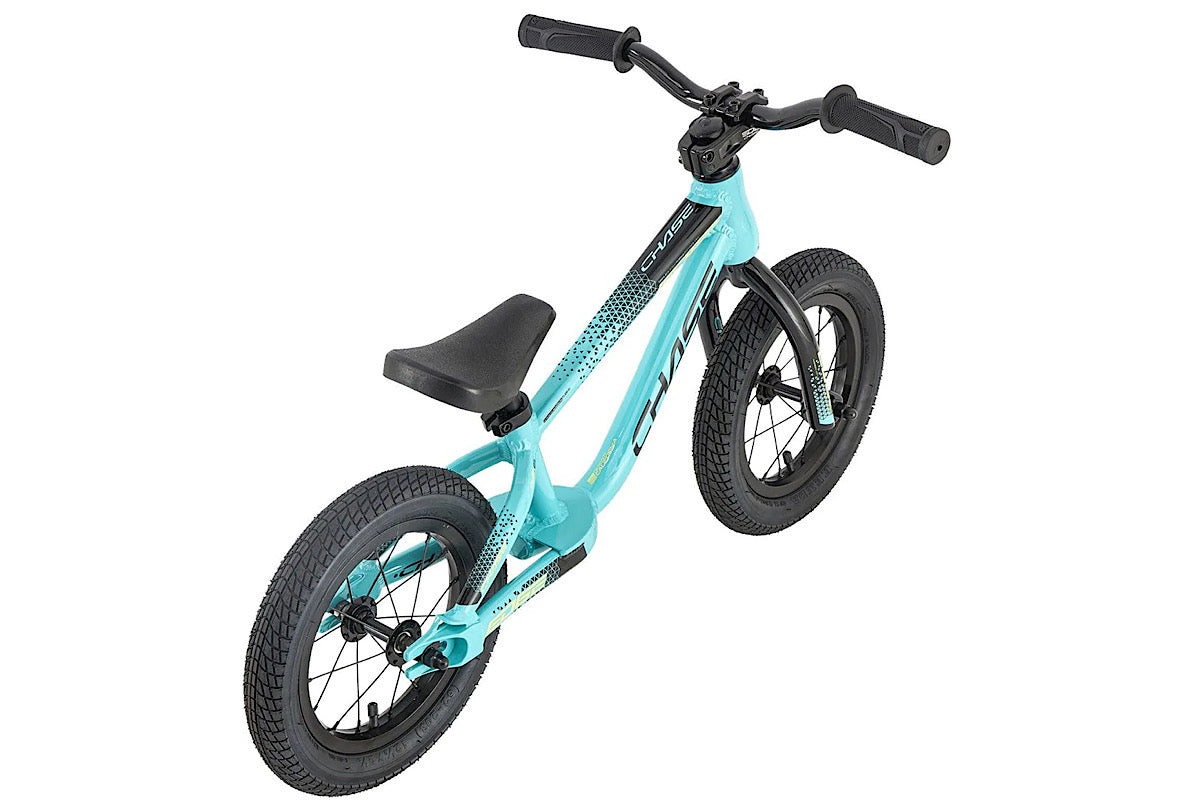

CHASE EDGE PUSH 2023

The Chase Edge Push gives new riders a quality platform to start their BMX experience. Using the Championship-winning Chase Edge as a base, this balance bike comes equipped with Kenda Kontact tires on Chase Edge 012 Rims, Insight grips, a sealed bearing integrated headset and Edge Mini hubs with double contact sealed bearings. The frame is made of sturdy triple-butted and hydroformed 6061-T6 aluminum alloy so it is tough enough to handle the learning process but still lightweight.

SPECIFICATIONS

• FRAME: CHASE Edge Balance 12.5" Top Tube, 6061 T6 Alloy, Integrated 1" Head Tube
• FORK: CHASE Edge Balance Full Cr-mo, 1" Steer Tube With Tapered Blades
• HEADSET: Integrated Sealed Bearing
• HANDLEBAR: CHASE Edge 22.2mm, 1.18" Rise, 18.1" Wide, 6° Back Sweep, 0° Up Sweep
• GRIPS: INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug
• STEM: CHASE Edge 40mm 6061 T6 Alloy Laser Etched Logo
• HUBS: CHASE Edge Mini, 3/8" Axle, 16H, Double Contact Seal Bearing
• SPOKES: 14 Gauge
• NIPPLES: Brass 14Gx5/8"
• RIMS: CHASE Edge 012 Single Wall 16H 12"x1.75" Schrader Valve
• TIRES: KENDA Kontact 12"x2.25"
• TUBES: 12"x1.5"-1.75" Schrader Valve
• SADDLE / SEAT POST: CHASE Edge Mini Combo 25.4x150mm
• SEAT CLAMP: CHASE Edge QR Alloy 28.6mm
• WEIGHT: 9.9 LBS / 4.5 KG WITHOUT PEDAL
• RIDER SIZE: >3' 3" – 3' 5" / >1M – 1M05

GEOMETRY

• Frame Size: Balance
• TT: 12.5" / 311.15 mm
• CS min: 8.5" / 207 mm
• LR: 1.8" / 46 mm
• AF: 70°
• SA: 71°
• HT: 3.35" / 85 mm
• SPL: 5.6" / 142 mm
• BBH: 6.6" / 167.6 mm
• Wheels: 12×2.25"
