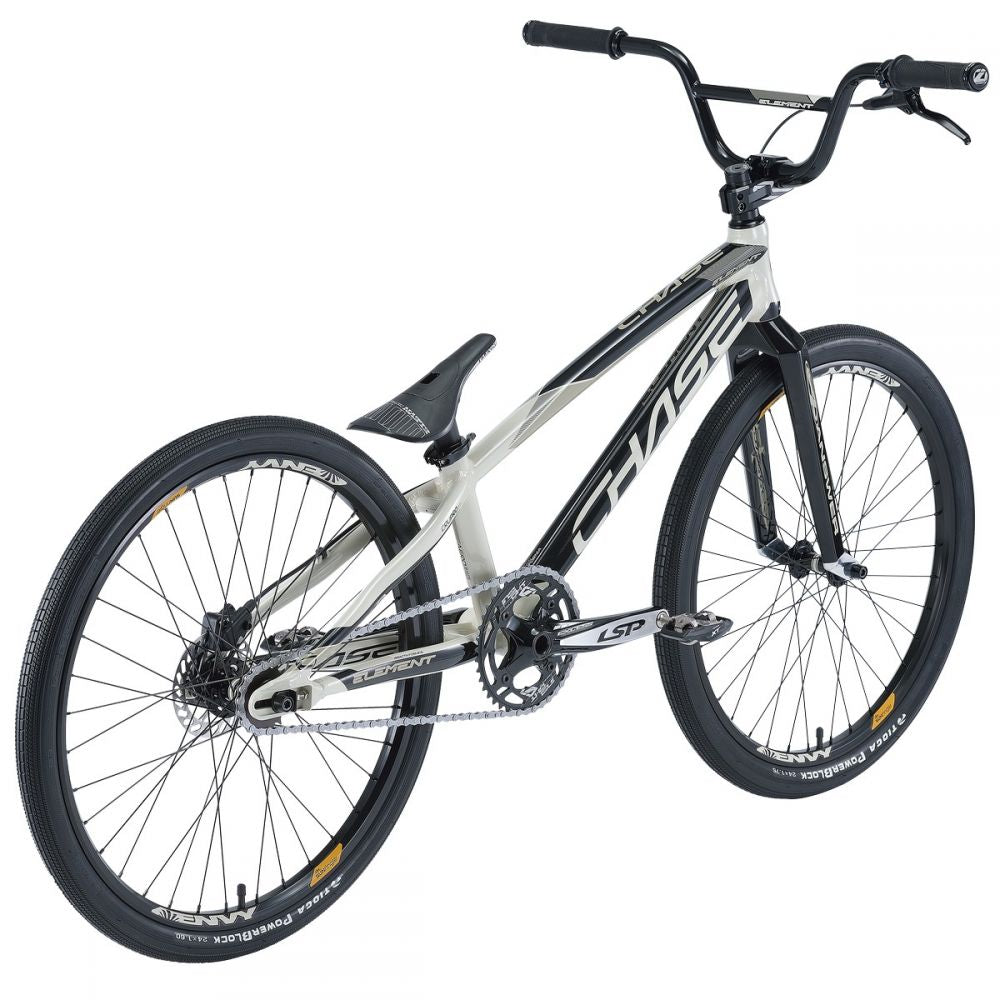

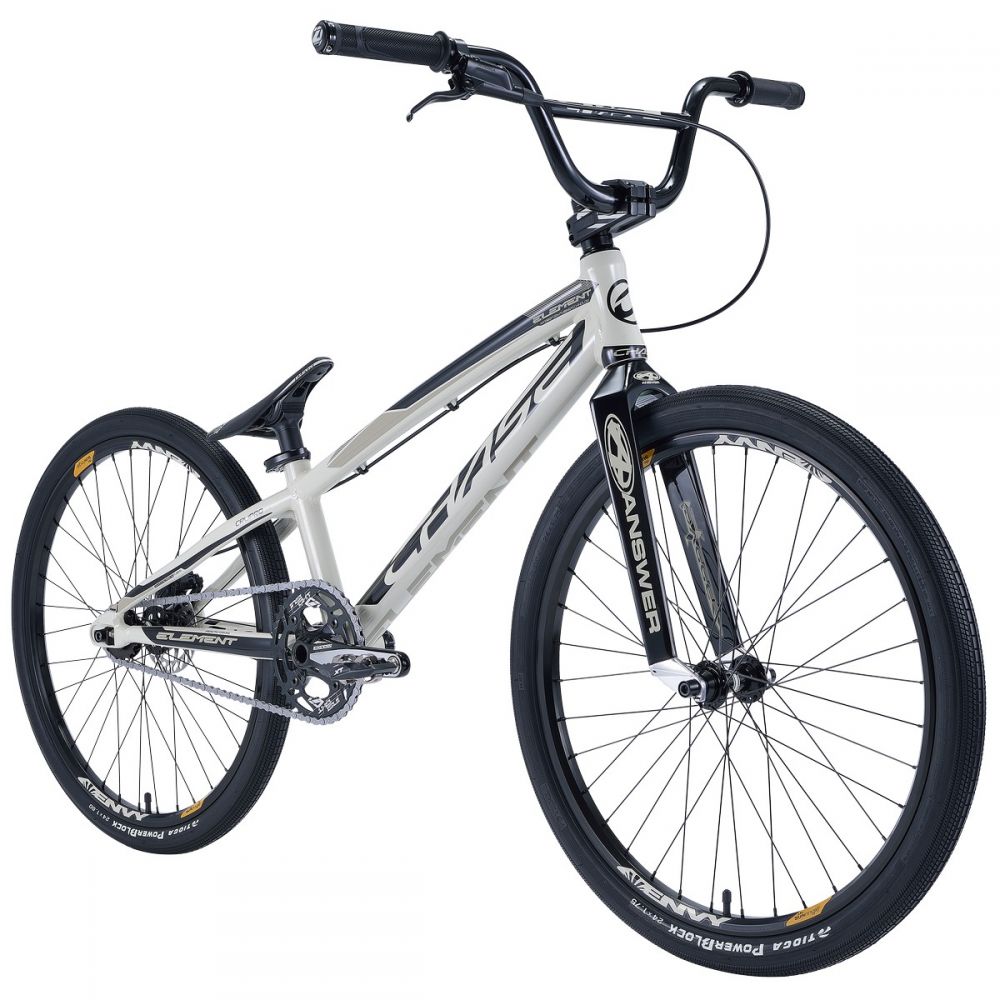

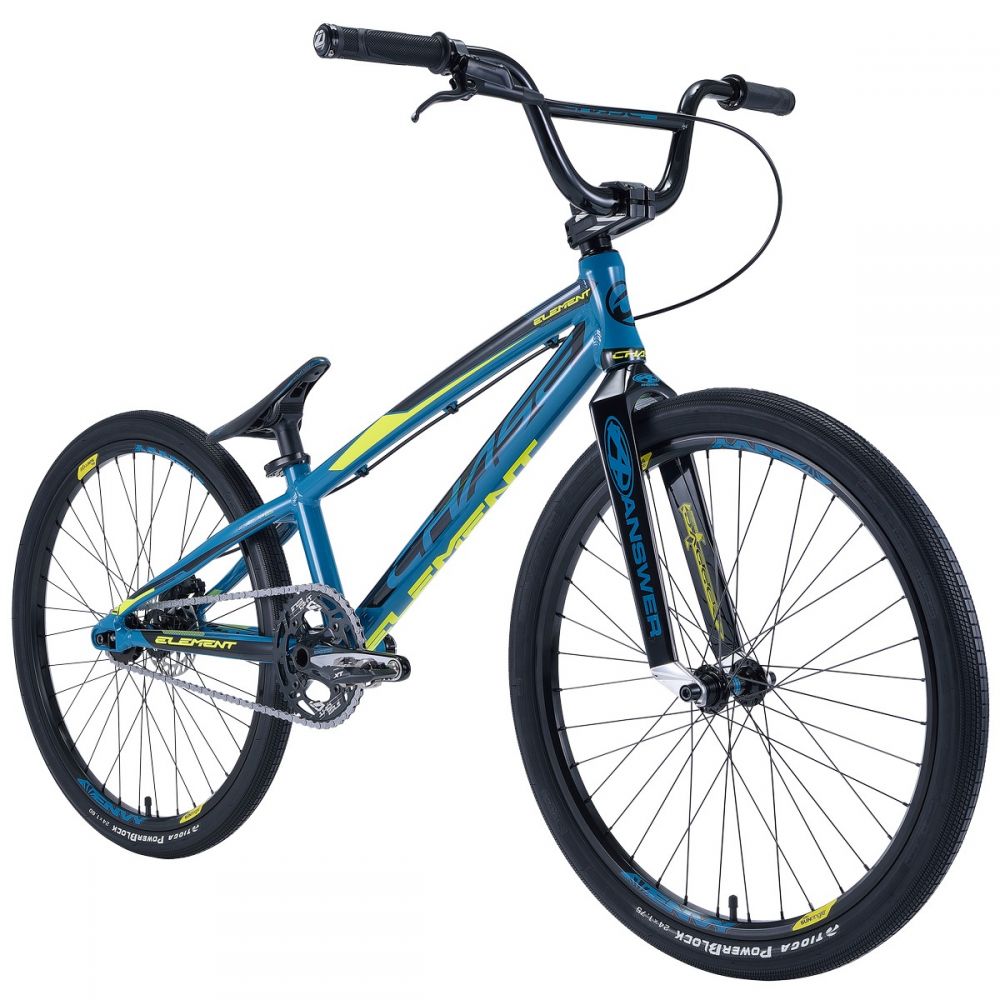

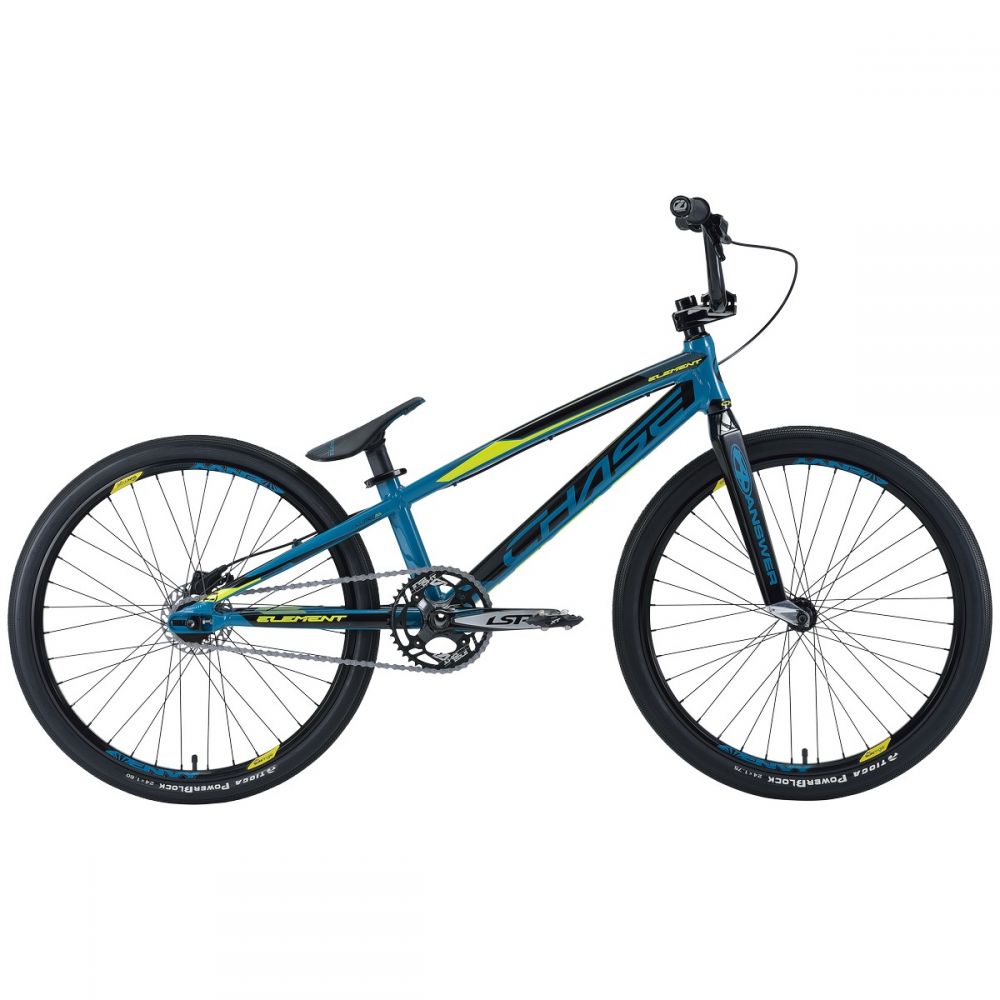

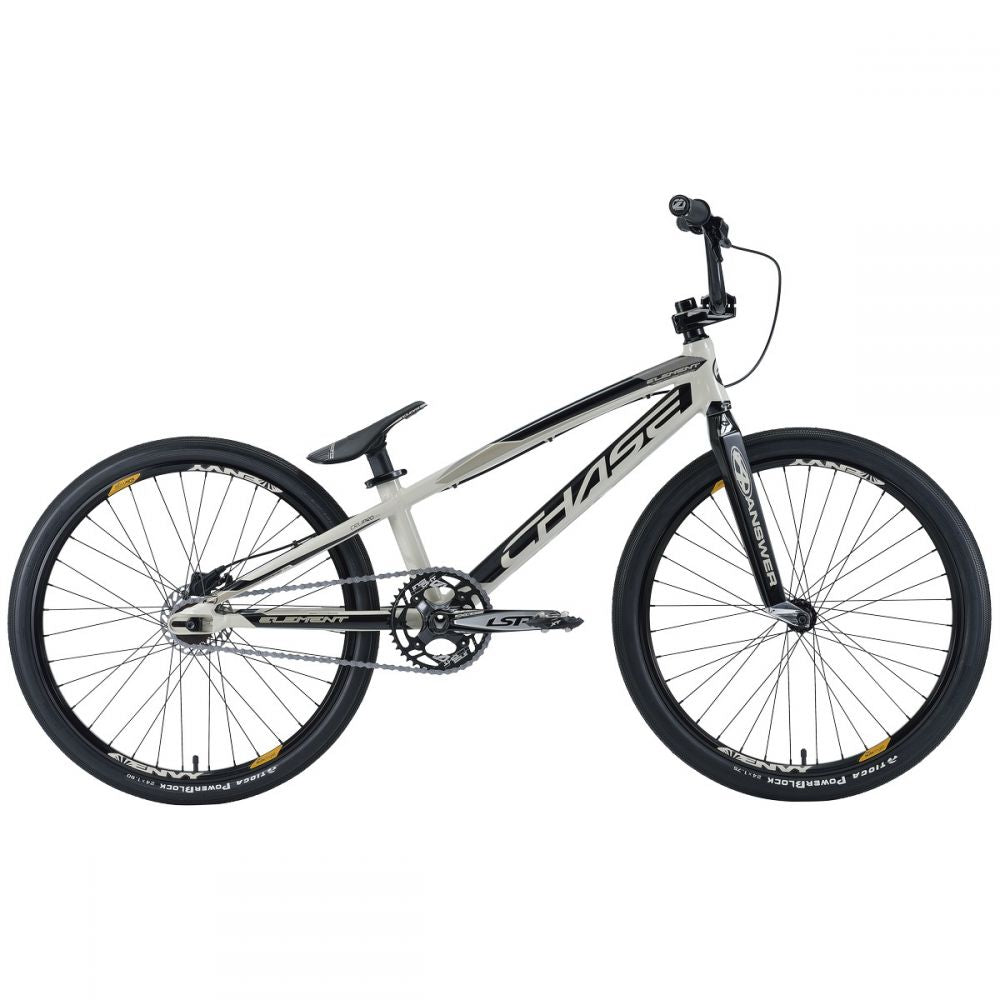

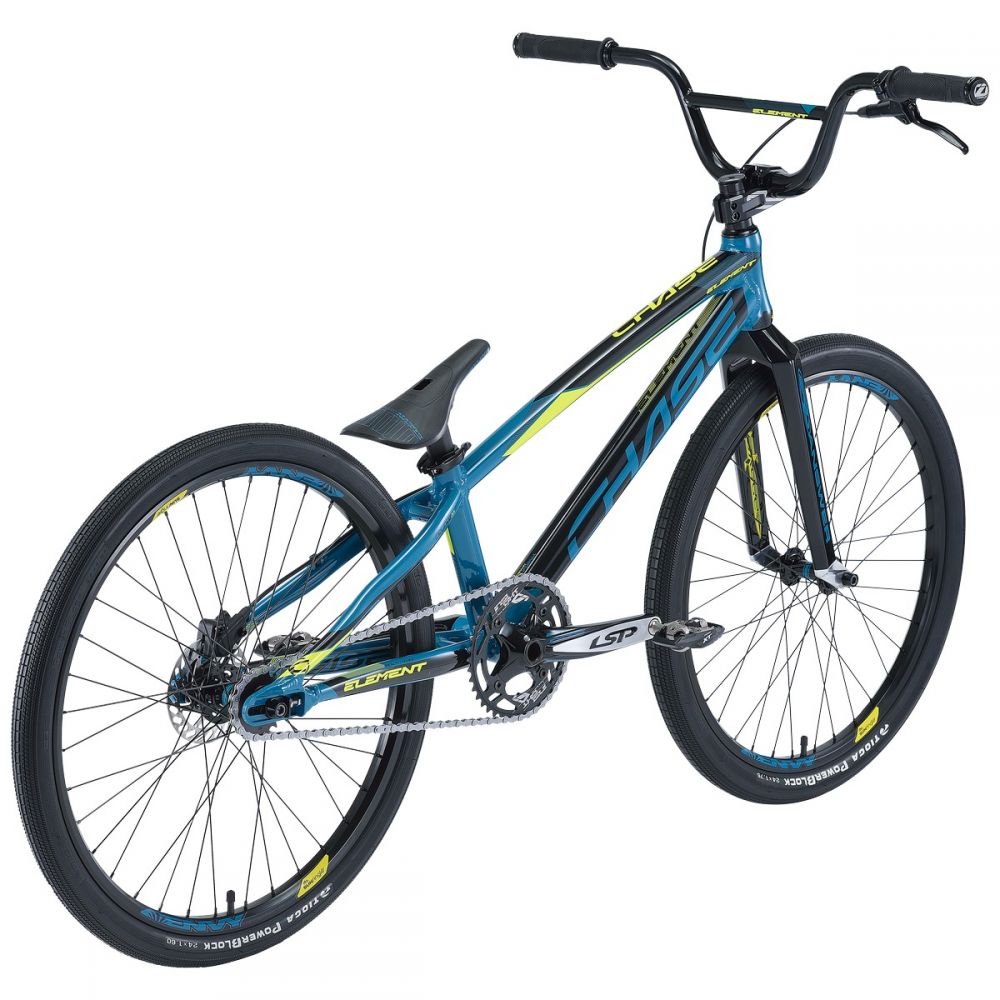

CHASE ELEMENT PRO CRUISER+

The Chase Element complete bike frame uses the same geometry as the Chase ACT Carbon Fiber Frame and Chase RSP race frames. The 2023 Element frame features Hydroformed & butted tubing, an integrated chain tensioner / disc brake mounting system, and a Press Fit BB86 Bottom Bracket. This is one serious race machine.

The Element is offered in 7 different sizes, Expert, Pro, Pro XL, Pro XXL, Pro XXXL, Pro Cruiser & Pro Cruiser + . The BIO FITS sizing helps give you the exact bike size you need to go out and stomp the competition.

The 2023 Element offers incredible features such as Hydroformed Alloy Disc Specific RaceFrame, ANSWER Dagger carbon fiber fork, TIOGA FastR X tires, 31.8mm handlebar & stem, Hydraulic Disc Brakes, Chase Triple Precise clutch cassette hub, SUN RINGLÉ rims, ELEVN Aero Pivotal seat & post, EXCESS LSP crank, BB-86 Press Fit Bottom Bracket, INSIGHT chainring & grips. With all the parts together with this Hi-End frame, we are able to make the ultimate Pro level & best complete race bike out of the box available today for BMX racing!

RECOMMENDED SIZE: 5' 6.9" - 6' 2.8" / 1m70 - 1m90
WEIGHT: 21.7 LBS / 9.85 Kg with pedals

HIGHLIGHT

• FRAME: CHASE Element Pro+ Cruiser 22″ Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: ANSWER Dagger Carbon Pro Cruiser 10mm
• STEM: CHASE Element 31.8mm 50mm
• HANDLEBAR: CHASE Element 31.8mm 5.75″
• CHAINRING: INSIGHT 41T 4 Bolts BCD 104mm
• CRANKSET: EXCESS LSP 180mm, Press Fit BB86
• HUBS: CHASE Element 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 18T cog
• RIMS: SUN RINGLÉ Envy Rims 24×1.75″, 36H, No Brake Surface
• TIRES: TIOGA Fastr X 24×1.75″ Front & Rear
• BRAKES: Hydraulic lever and caliper (BH-59, Mineral Oil, Pads Resin SHIMANO/ELEVN B01S), 120mm disc rotor, Lock Disc Adaptor
• SEAT: CHASE Aero seat post & clamp / ELEVN PC Pivotal seat
• Pedals - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

GEOMETRY

• Frame Size: Cruiser
• TT: 22″ / 558.8 mm
• CS min: 15.25″ / 387.3 mm
• LR: 1.5″ / 38.1 mm
• AF: 73°
• SA: 69.5°
• HT: 4.7″ / 120 mm
• SPL: 9.8″ / 250 mm
• BBH: 12″ / 304.8 mm
• Wheels: 24×1.75″
