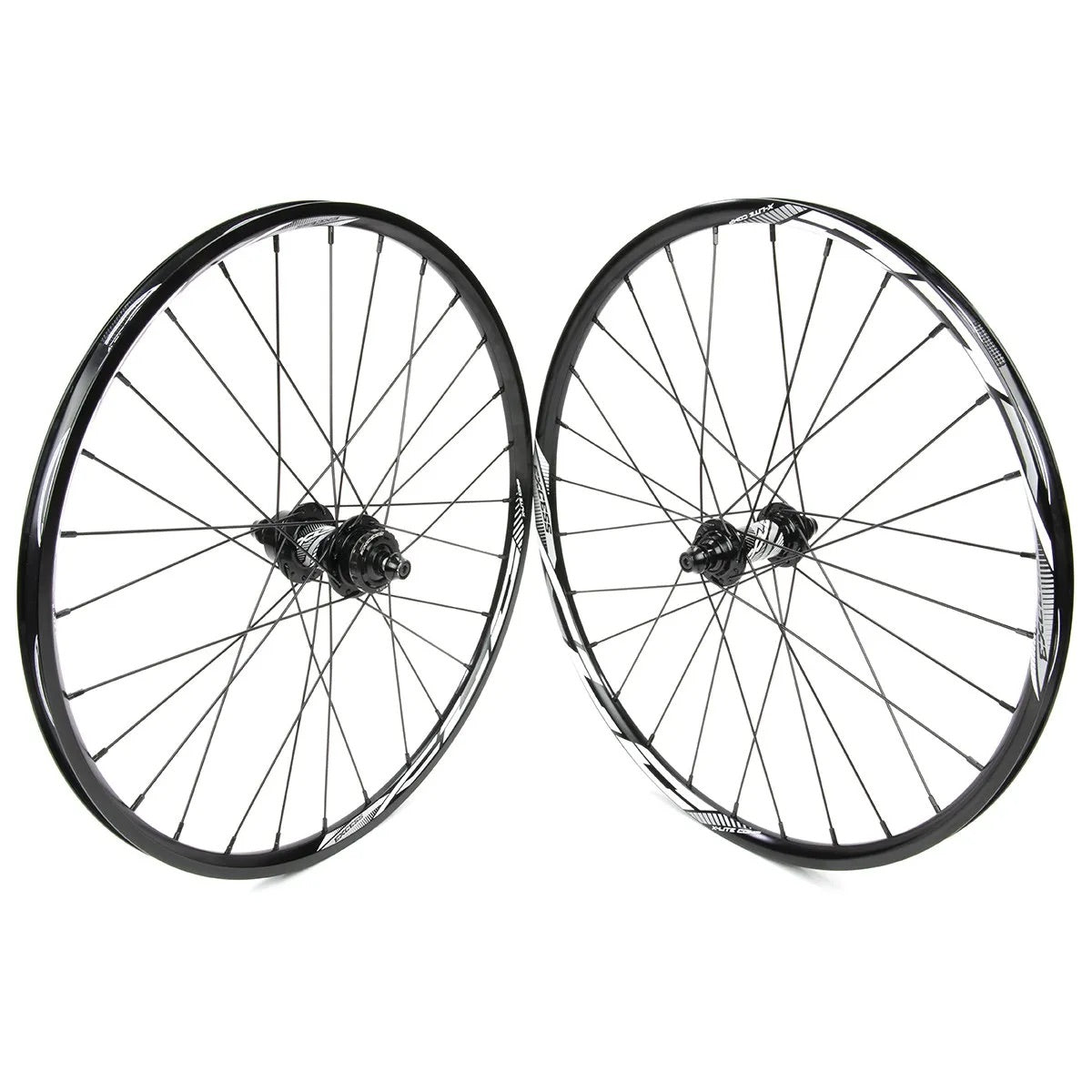

The XLC-2 Mini/Expert 20” Wheelset features Excess rims that offer 2 different rim profiles that feature a low profile, Double walled 6061-T6 Alloy rim with Optimized Internal Geometry for light weight and optimal strength.
Also, a rear Cassette Hub with a 3 pawls system with 5 fin claws, locking into a 120 ratchet cutter ring, giving you that extra torque needed for full power gate starts! The rear hub also offers the option for you to be able to convert it for use with a disc brake! this is achievable by allowing you to be able to accept a disc brake via an optional Disc Center Lock adapter! This gives you the best of both worlds. The Wheels are set up out of the box for V Brakes, but you can upgrade to Disc at anytime without getting a new rear hub!
All the wheels feature new graphics, Black Anodized finish, and 2 unique different Rim Profiles.
Double walled 6061-T6 Alloy rim with Optimized Internal Geometry for light weight and optional strength
Low Profile Aero
Brakeless Surface Profiles Front rim
Machined Brake Track on Brake surface on rear rim
Single process hi-polished, black anodized finish
Angled Nipples Holes
Laced with 14G Stainless spokes & Brass nipples
Included rim tapes

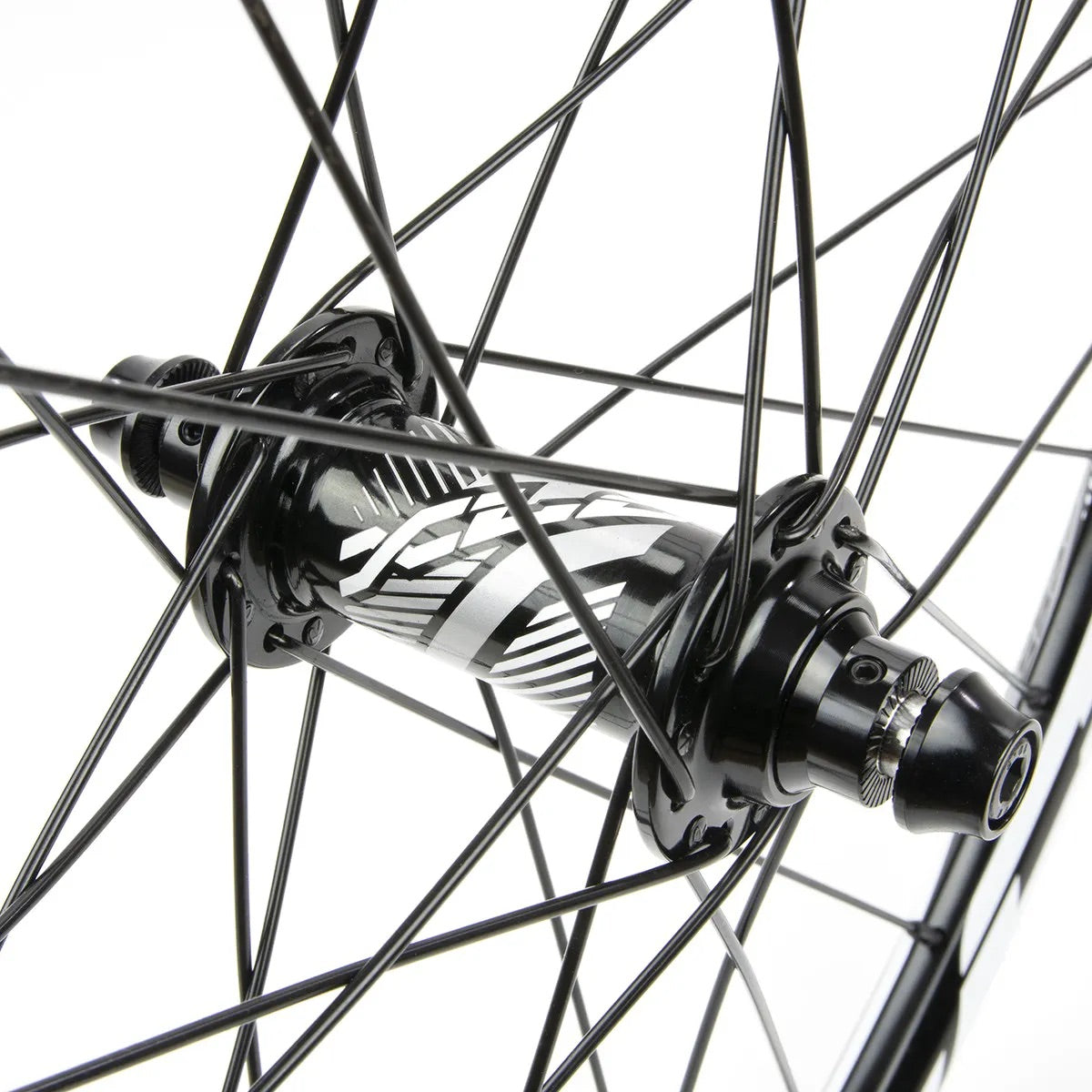

XLC-2 MINI/EXPERT FRONT HUB FEATURES:
2 sealed bearings
Alloy axle / Alloy end caps
M6 bolts with alloy CNC bolts caps

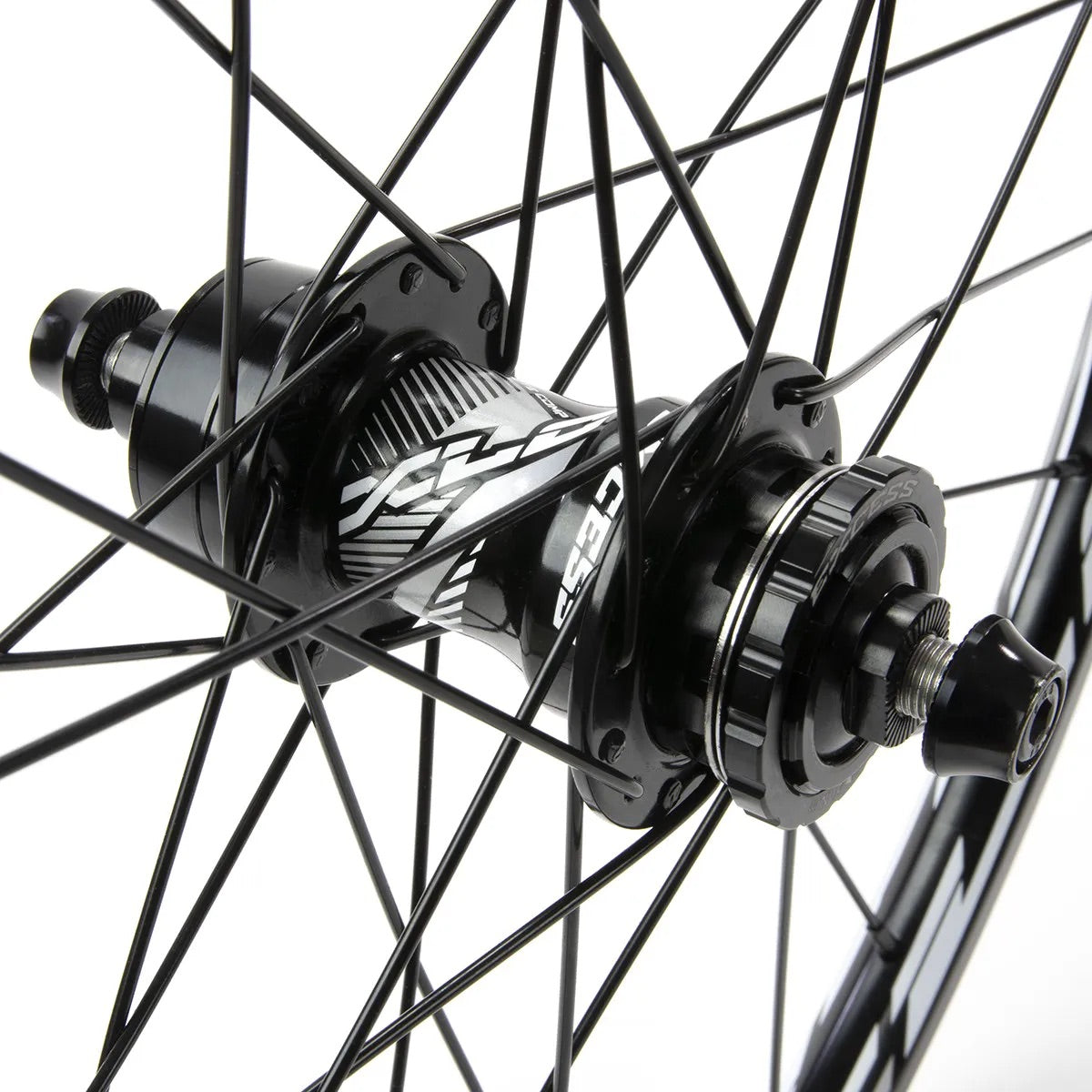

XLC-2 MINI/EXPERT REAR HUB FEATURES:
4 sealed bearings
Alloy axle
M6 bolts with alloy CNC bolts caps
Alloy driver (3 pawls with 5 fin claws engage into a 120 ratchets outer ring), with Chromoly 1x 1mm, 1x 0.5mm driver spacer and lock ring.
Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter.
Rear Cog and Center Lock Disc adapter not included

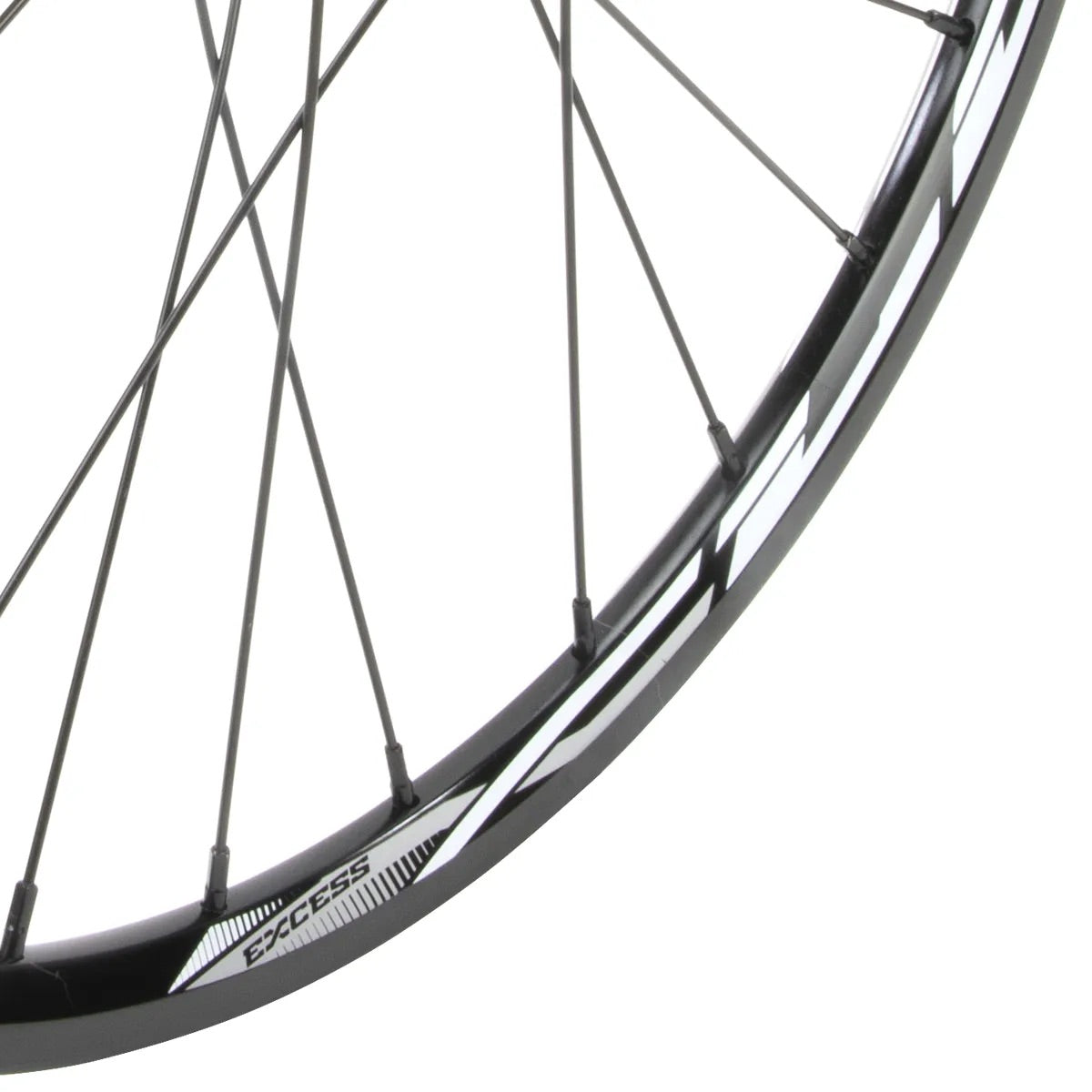

XLC-2 ALLOY RIMS SPECIFICATIONS
SIZE : 20″ X 1-1/8″-1-3/8″
ETRTO: 451mm
ERD: 438mm
Height: 16mm
Internal Rim Width: 13.6mm (front) 14.6mm (rear)
External Rim Width: 19.5mm
Valve : F/V Presta
RIMS DRILLING:
28 Holes
SPOKES LENGTHS:
Front: 215mm
Rear: 212/214mm
WEIGHTS:
FRONT: 595g
REAR: 797g
