IKON
IKON MINI/JUNIOR FORK 3/8" DO
COLOR
IKON MINI/JUNIOR FORK 3/8" DO
20" / BLACK/GREY
Full Tilt Bike Co Isanti
101 Isanti Parkway Northwest
Isanti MN 55040
United States
FULL TILT BIKE CO trailer
700 41st Avenue North
St. Cloud MN 56303
United States
WAREHOUSE
700 41st Avenue North
St. Cloud MN 56303
United States

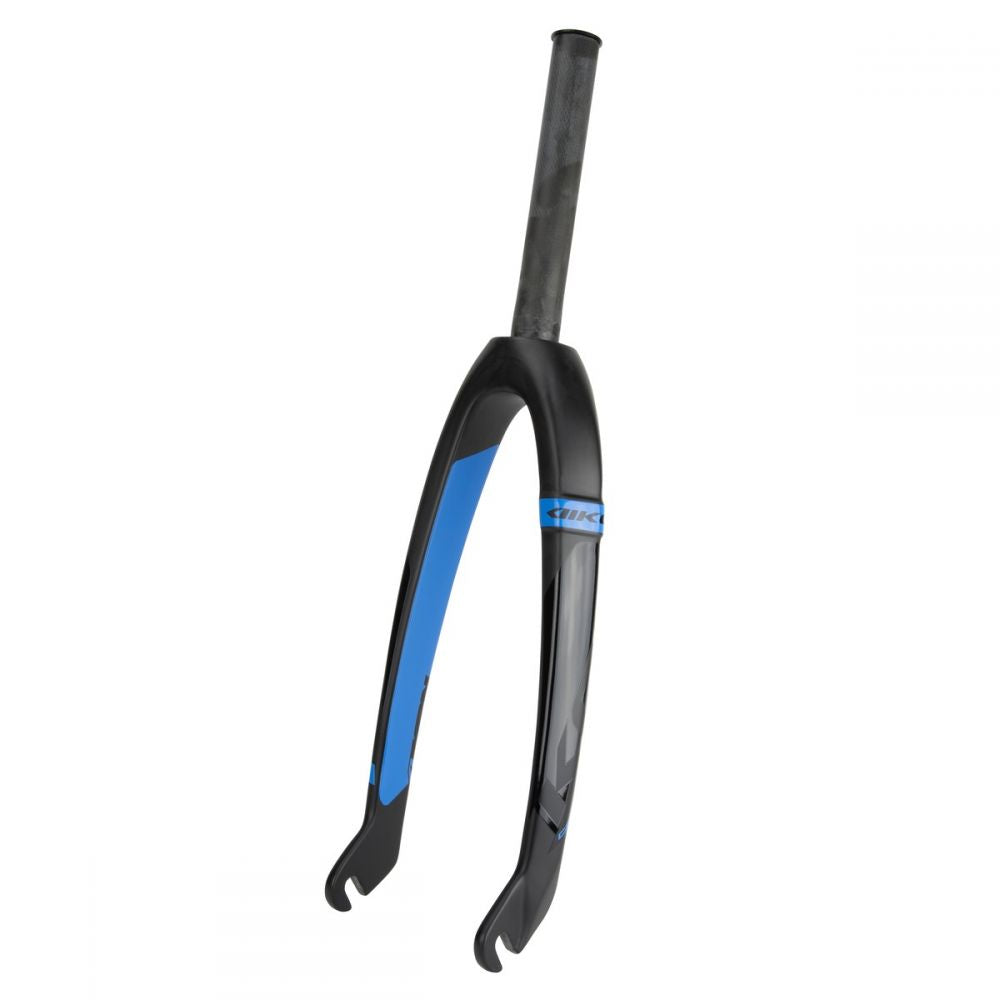

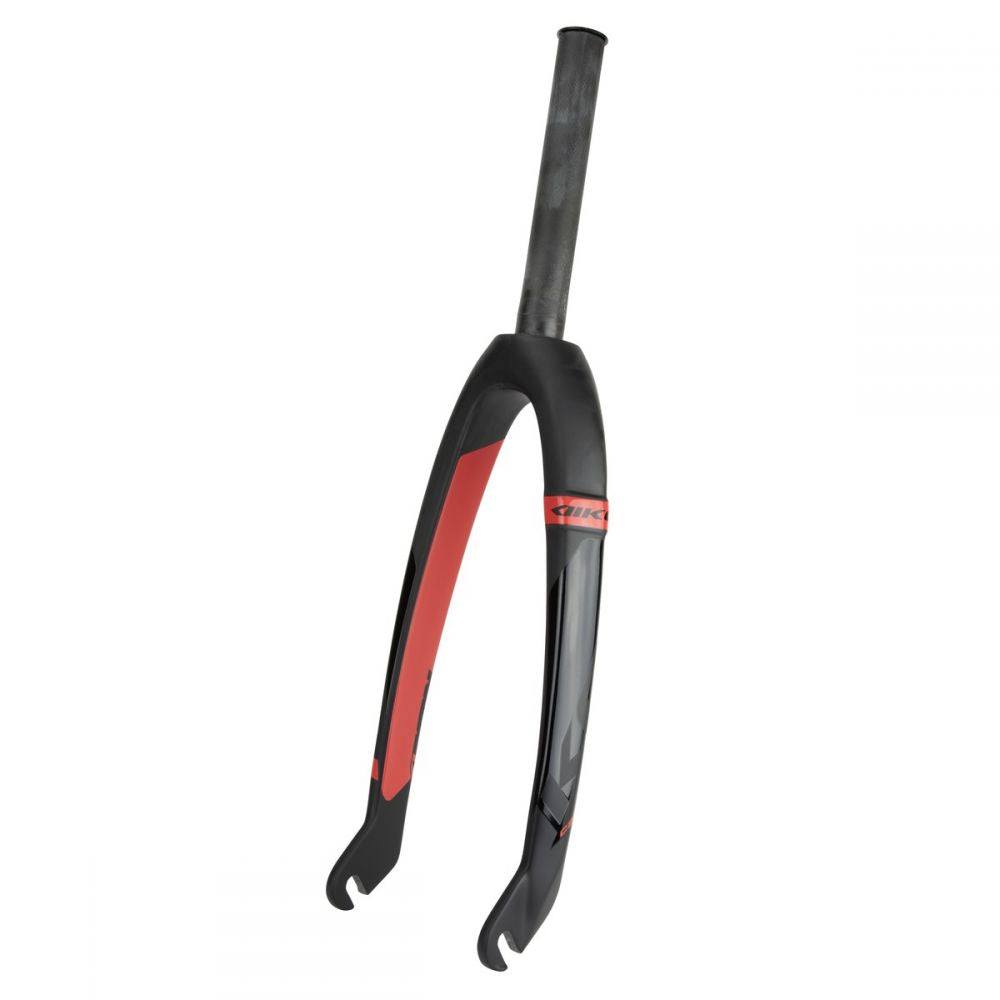

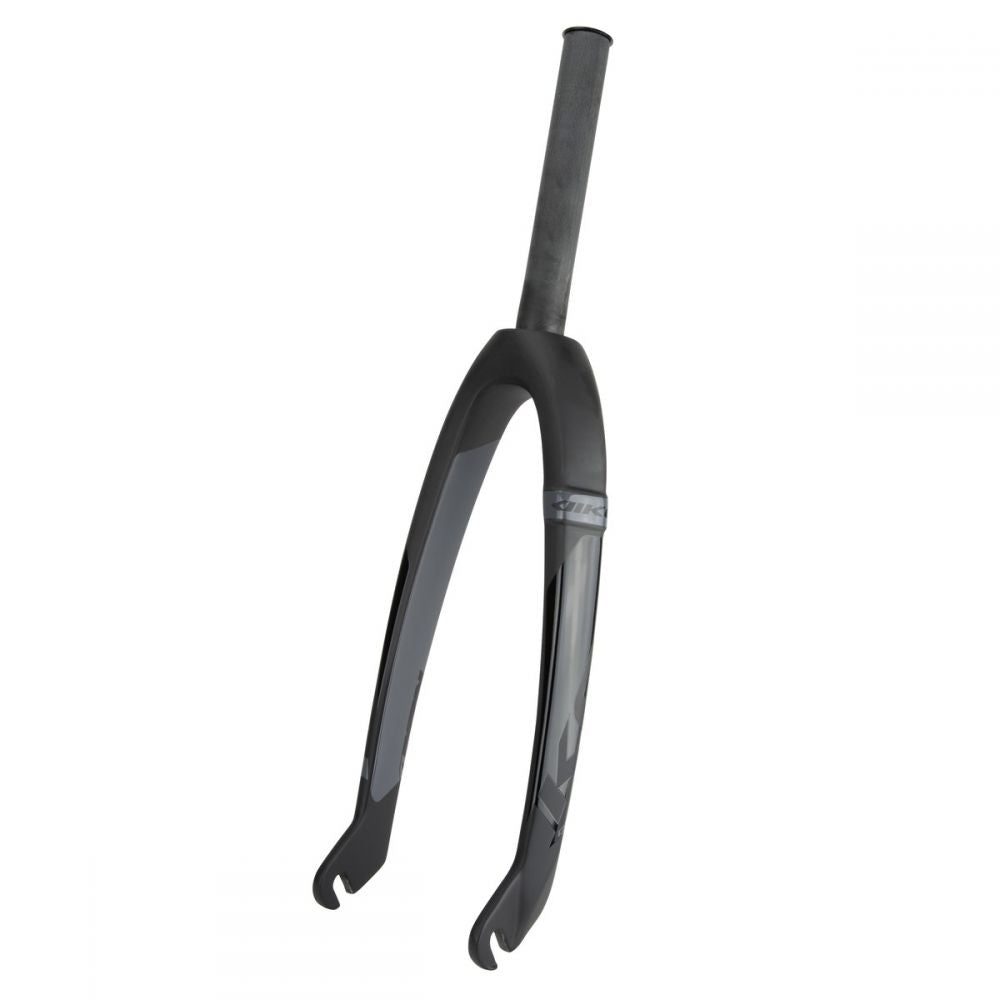

The IKON 1” fork is the ultimate BMX race fork for the little racers of BMX! The IKON 1” fork features a full Toray UD Carbon Steer tube as well as Full Toray UD carbon construction including the 10mm drop outs. This helps make the IKON 1” fork one of the lightest forks available for BMX racing. The IKON 1” fork comes with an 7075 T6 Alloy lock cap and the steer tube has a treaded Alloy insert thats integrated into the steer.
Fork Info
- IKON unique designed Tapered fork legs, with embossed features on the legs.
- 1” Full Toray UD Carbon Steer Tube - 165mm in length
- 305mm axle-to-crown
- 28mm drop-out offset
- 10mm Carbon dropouts
- 304 Grams or 10.7 oz fork weight
- 0.3 oz or 8 Gram Anodized Black 7075T6 Alloy top-cap weight
- Rider Weight Limit : 99 lbs / 45 Kg
- Maximum axle tightening torque : 6 N.m
Fork works with 1” internal Diameter Headset. - Many Headsets in the 1” internal diameter bearing size are offered for both 1” or 1 1/8th head tubes. Check with your frame specs when ordering a headset. Lower Bearing Race is needed to be used with the 1” IKON fork.
