MONGOOSE

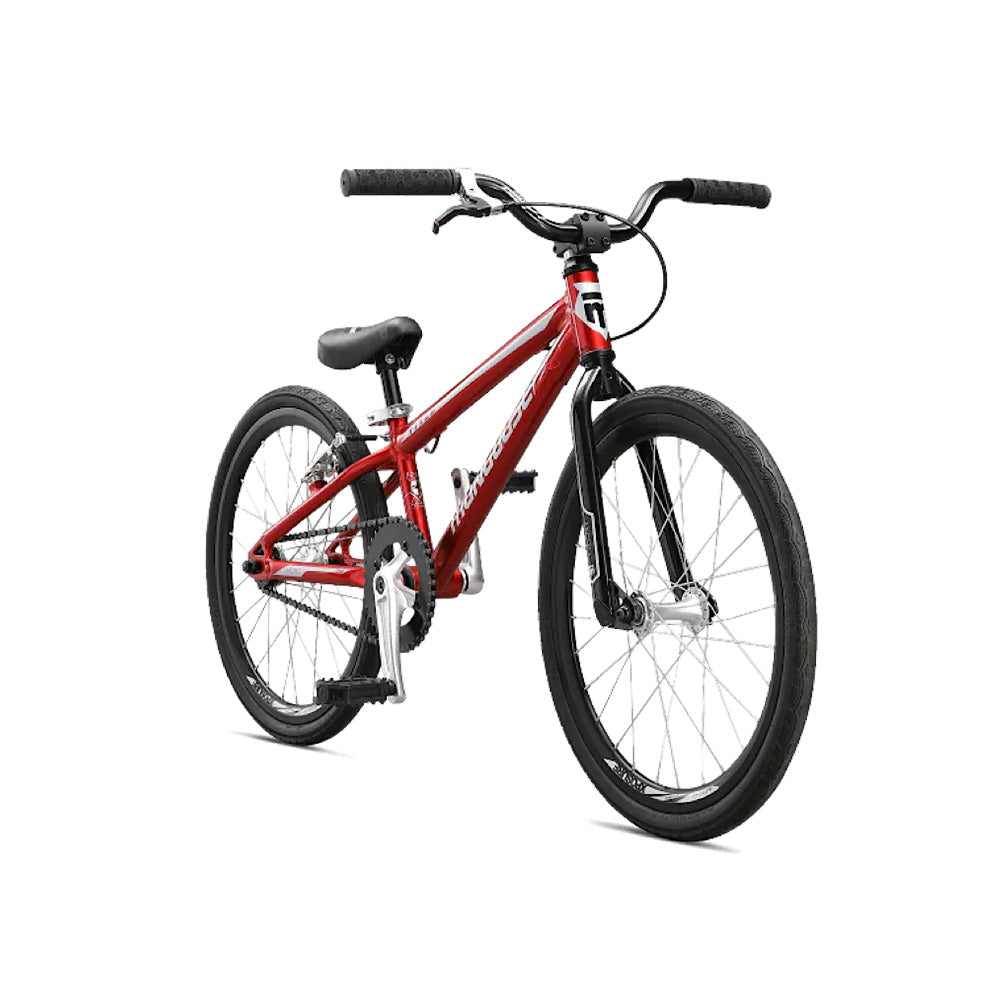

MONGOOSE TITLE MINI 2022
Color
MONGOOSE TITLE MINI 2022
RED
FULL TILT BIKE CO trailer
3909 County Road 115
Saint Augusta MN 56301
United States
Lightweight Tectonic T1 aluminum frame, integrated headset, and internal cable routing. 17.5" top tube length and frame weight of 2.69 lbs
Drivetrain features 140mm 3-piece tubular chromoly cranks with a 39T chainring and euro cartridge bottom bracket.
Arisun XLR8 20" x 1-1/8" tires mounted on Xposure aluminum double wall rims with aluminum ball bearing front hub and 16T cog freewheel rear hub.
Hi-Ten steel handlebar (2.5") and fork, 30mm stem, sealed bearing headset, and alloy V-brake and brake levers, Suggested rider height is 4'2" to 4'10".
GEOMETRY & SIZING
| MINI | |
|
HEADTUBE ANGLE (DEGREE) |
73 |
|
SEAT TUBE ANGLE (DEGREES) |
71 |
|
TOP TUBE LENGTH (MM) |
444 |
|
SEAT TUBE LENGTH |
220 |
|
STANDOVER HEIGHT (MM) |
502 |
|
HEADTUBE LENGTH (MM) |
90 |
| CHAINSTAY LENGTH (MM) | 343 |
| FORK OFFSET (MM) | 34 |
| BOTTOM BRACKET DROP (MM) | 9.5 |
| WHEELBASE (MM) | 834 |
| STEM LENGTH (MM) | 30 |
| BAR WIDTH (MM) | 570 |
| SEAT POST SIZE (MM) | 22.2 |
