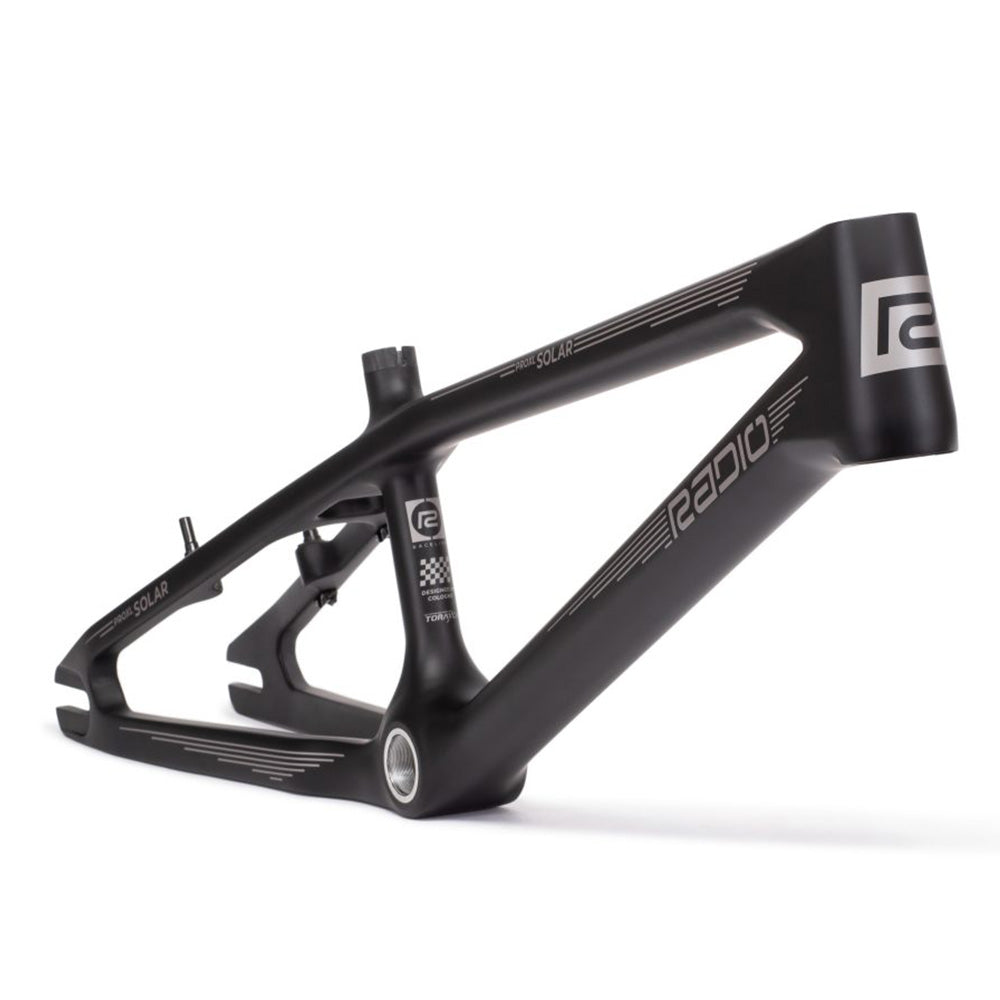

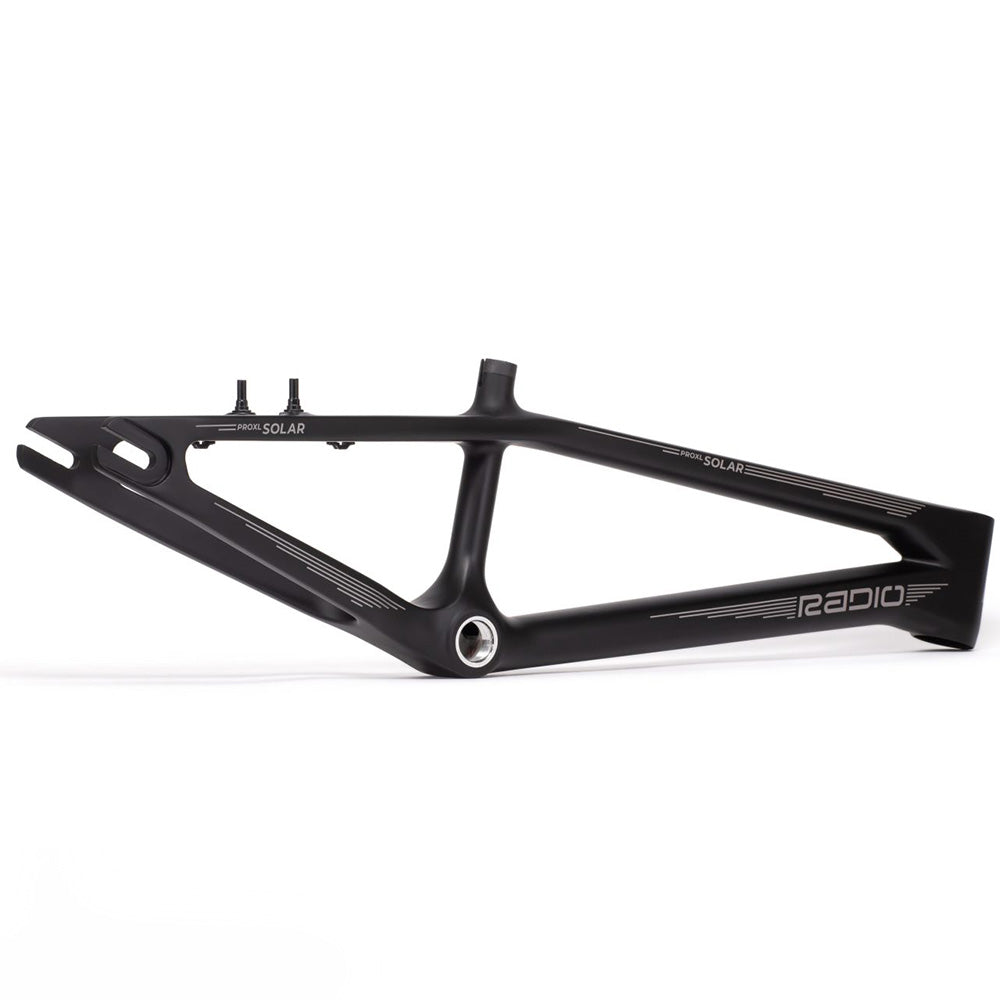

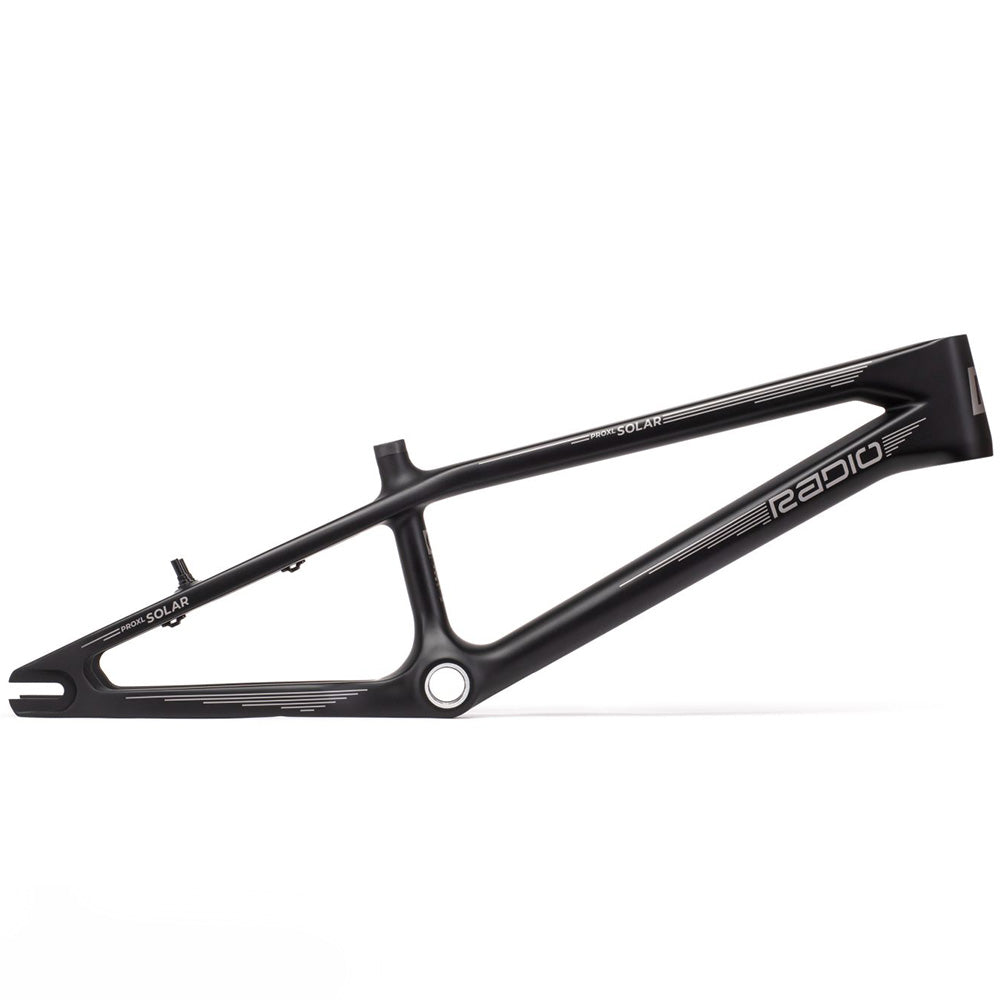

RADIO RACELINE SOLAR RACE FRAME MATTE BLACK

Material high-performance TORAYCA carbon fiber

Top Tube Length (actual) 21.25” (540mm)

Top Tube Length (effective) 22.5” (571mm)

Chainstay Length (min.) 14.5” (368mm)

Dropout Size 15mm

Head Tube Angle 74.5°

Seat Tube Angle 71°

Head Tube Size (full int.) tapered 1-1/8” – 1.5” (120mm)

Seat Post Size 27.2mm

Seat Tube Length 238mm

Bottom Bracket Type Euro, threaded, BSA 68mm

Bottom Bracket Height 11.6″ (EU)

Wheel Size 20″ x 1.75″

Rider Area TBA

Extras Inc. • full monocoque technology

• internal cable routing

• laboratory tested for superior strength and
stiffness

Weight 1.165kg/2.57lbs
