SUPERCROSS VISION F1 20" CARBON CHASIS

Sale price$1,999.99 USD
SIZE:PRO XXL
COLOR:

COLOR

Quantity:

Pickup available at FULL TILT BIKE CO trailer Usually ready in 24 hours

SUPERCROSS VISION F1 20" CARBON CHASIS

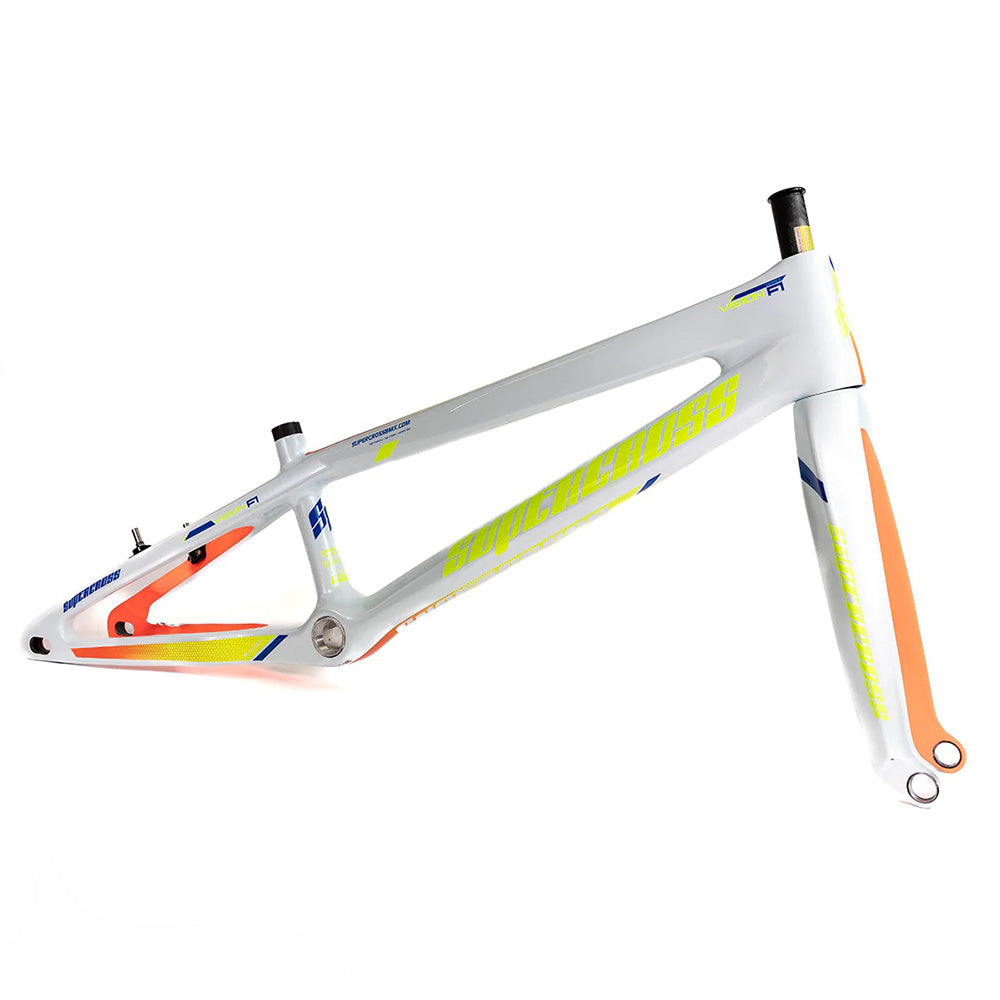

PRO XXL / SUNRISE PEARL

FULL TILT BIKE CO trailer

Pickup available, usually ready in 24 hours

23610 67th Avenue
St. Cloud MN 56301
United States

+13163085435

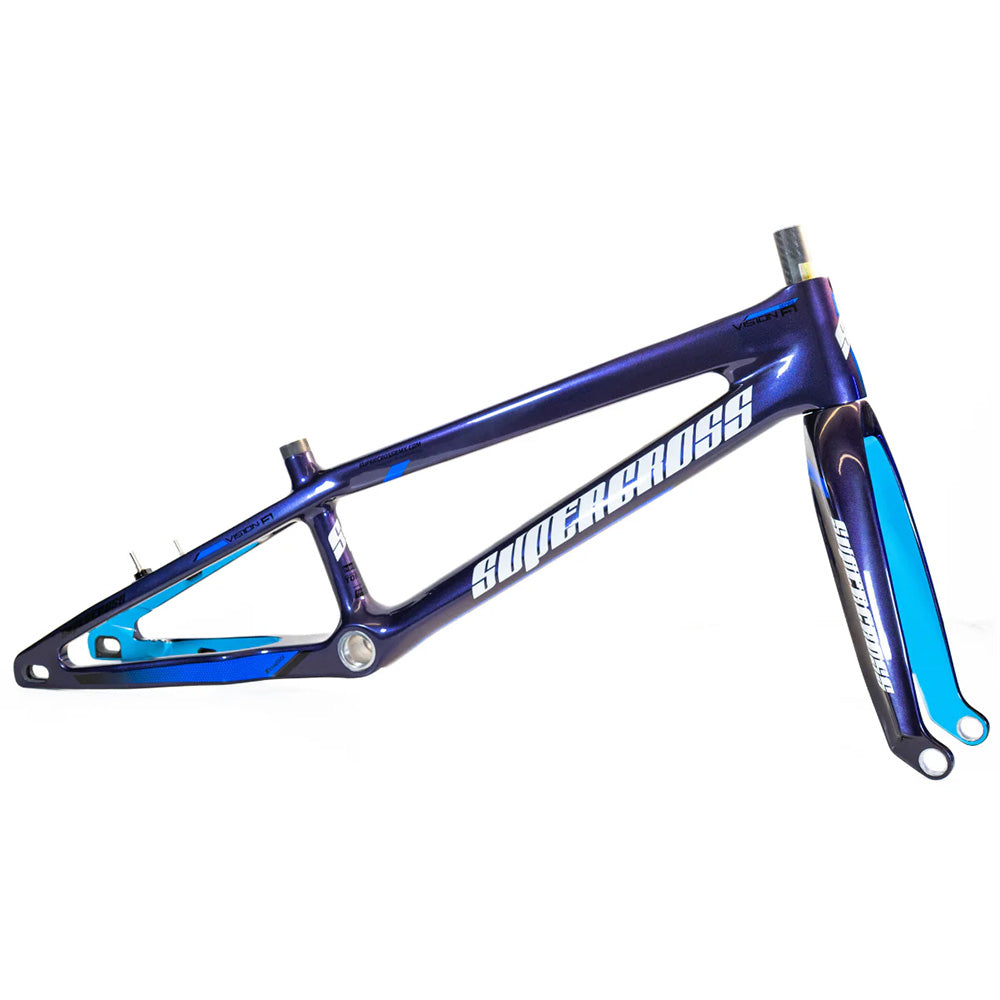

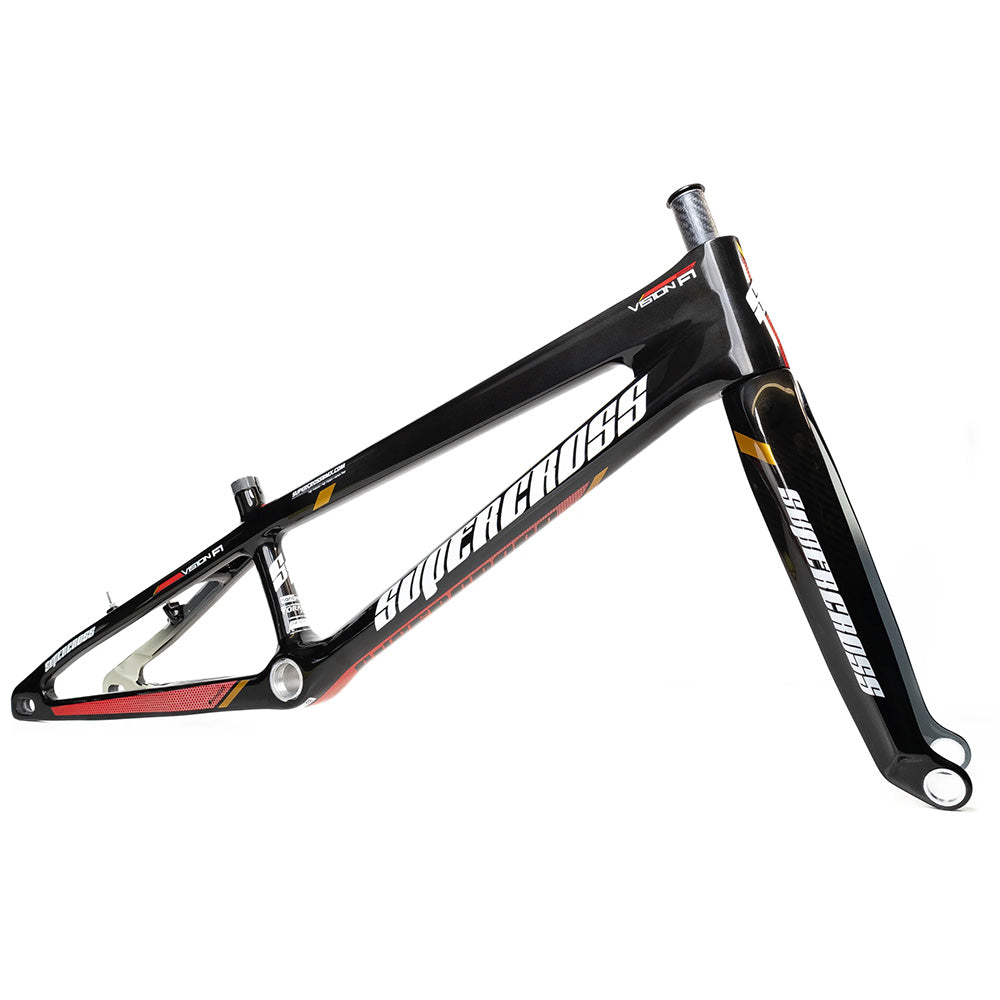

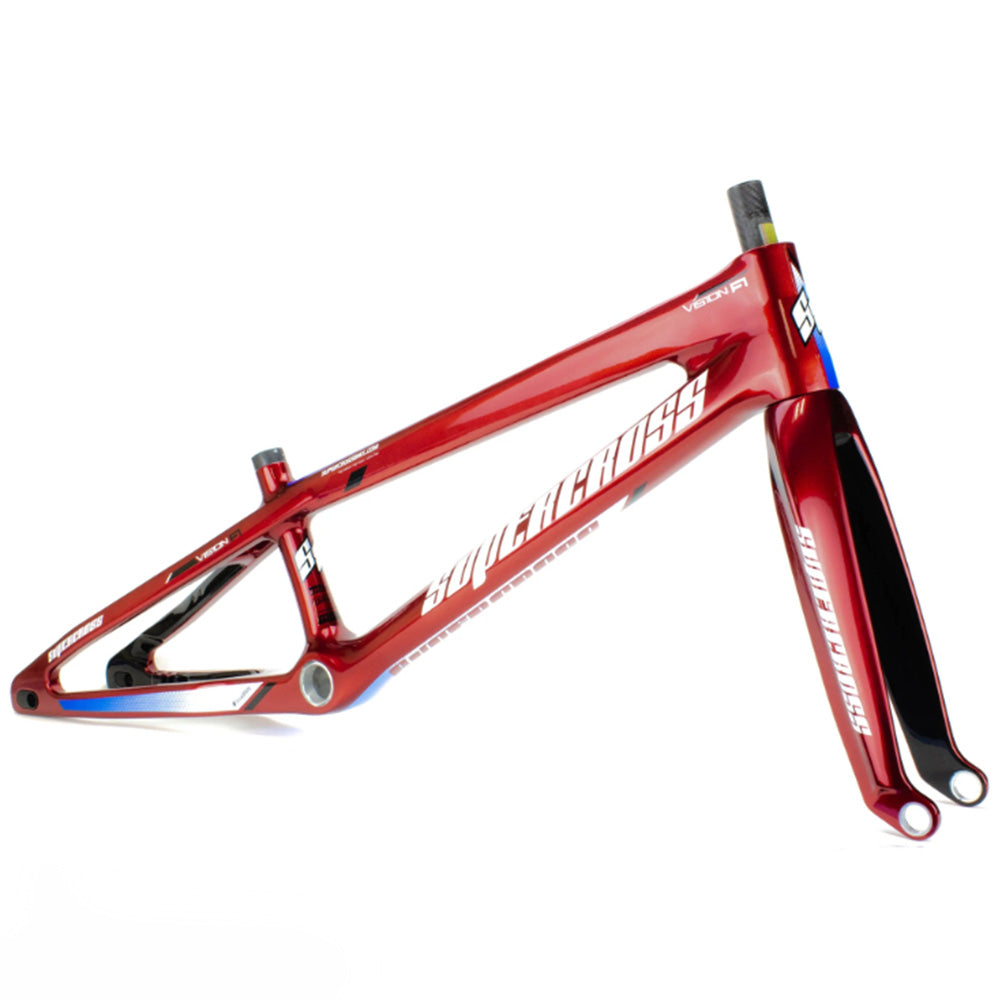

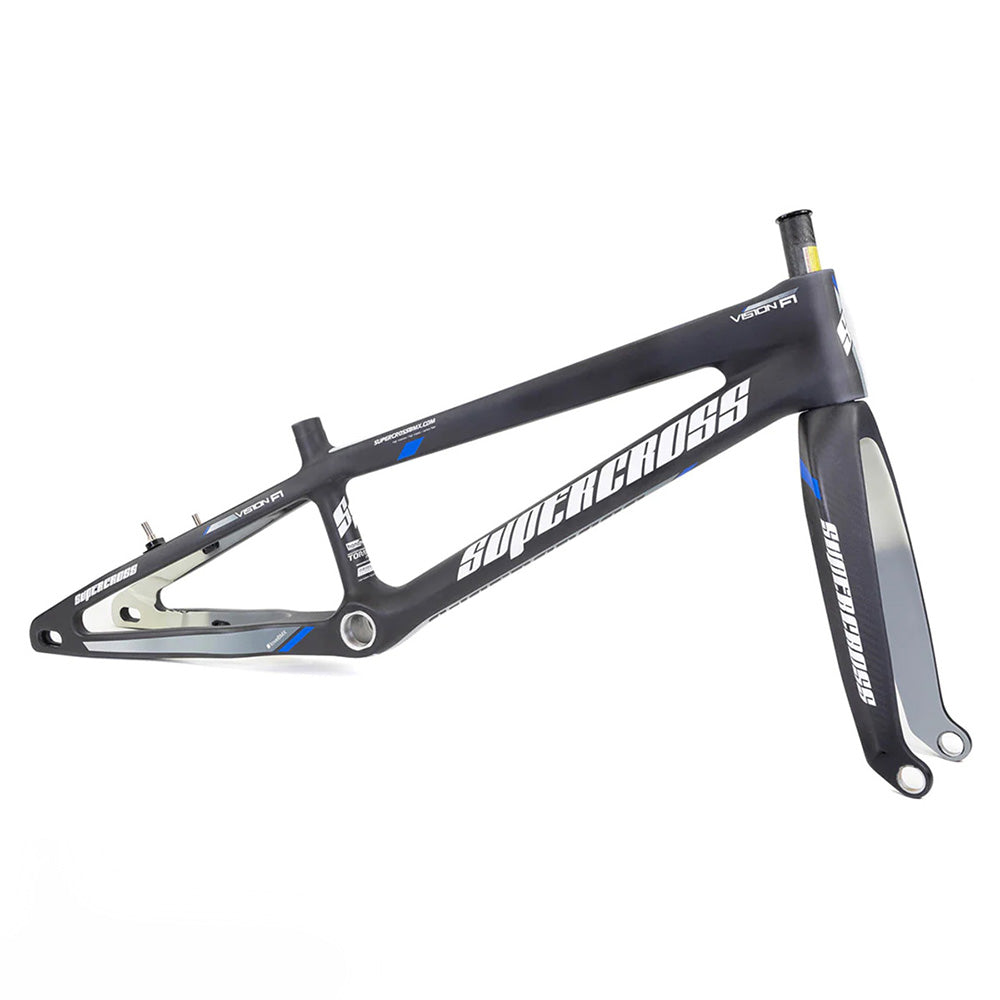

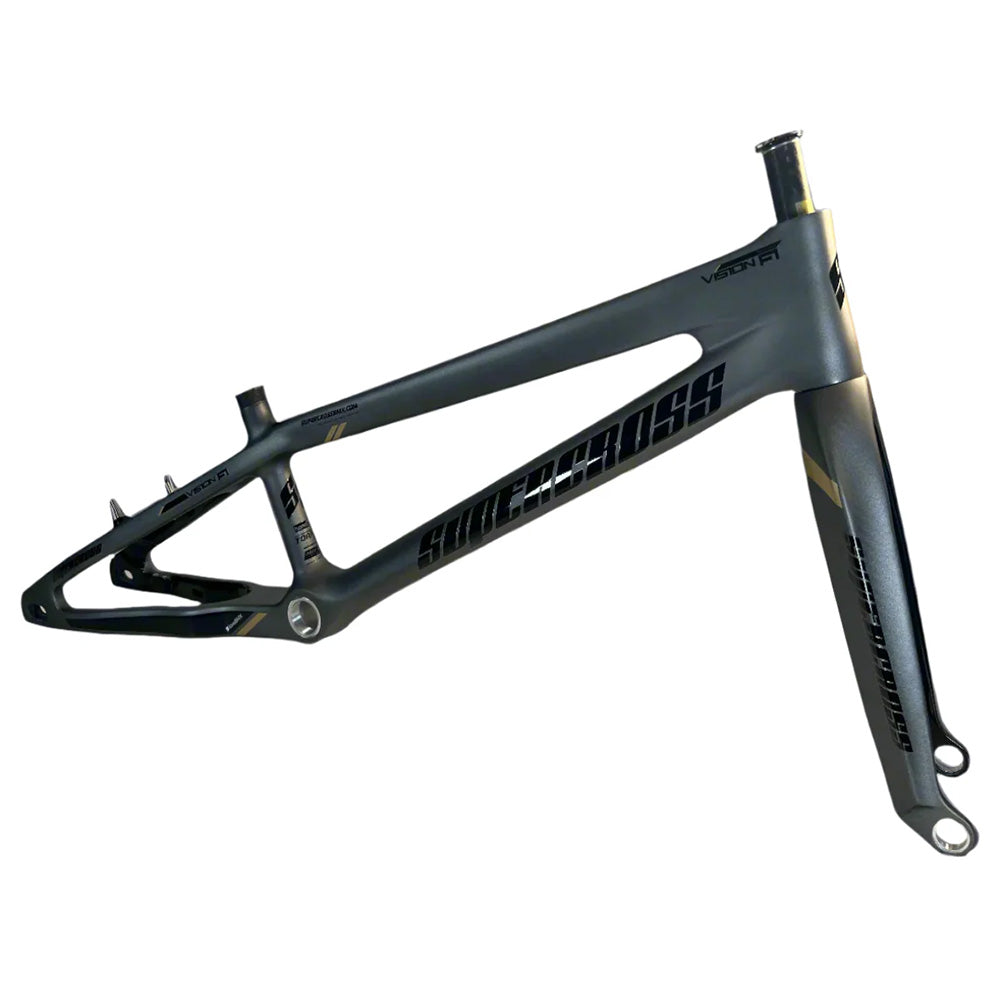

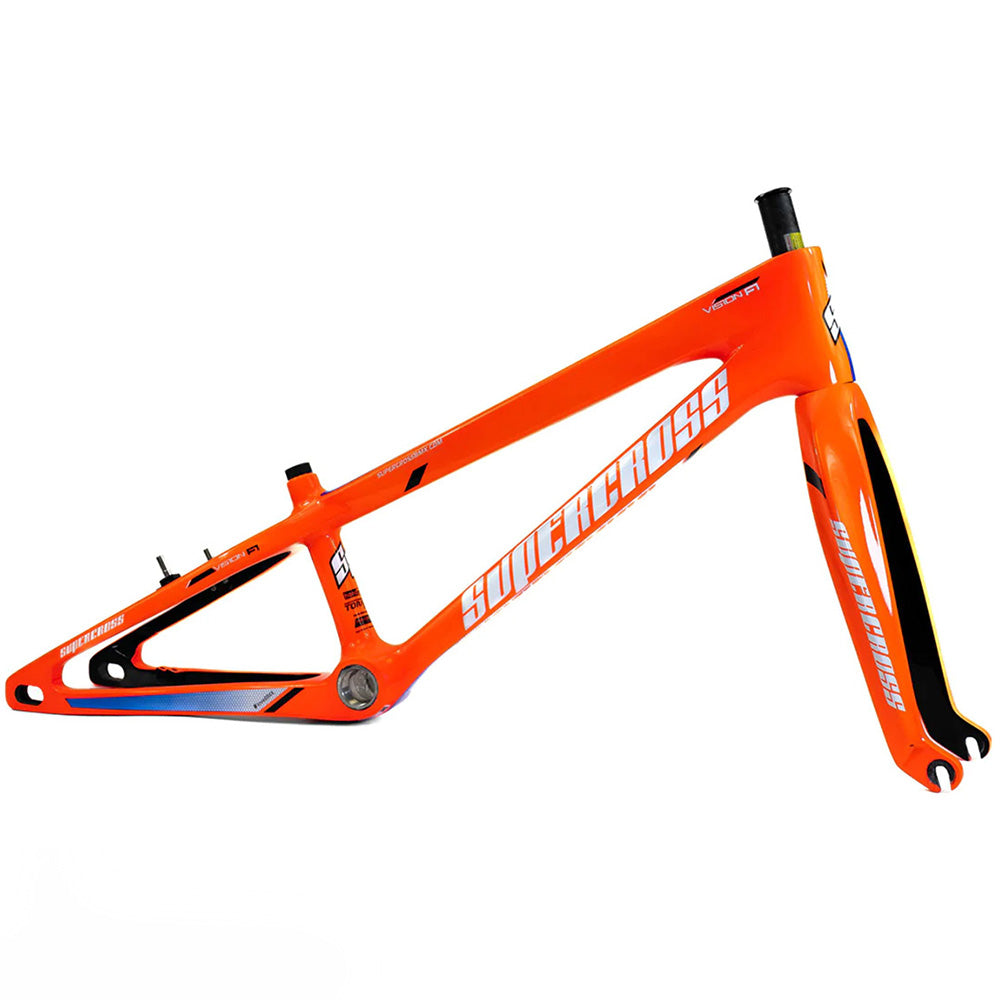

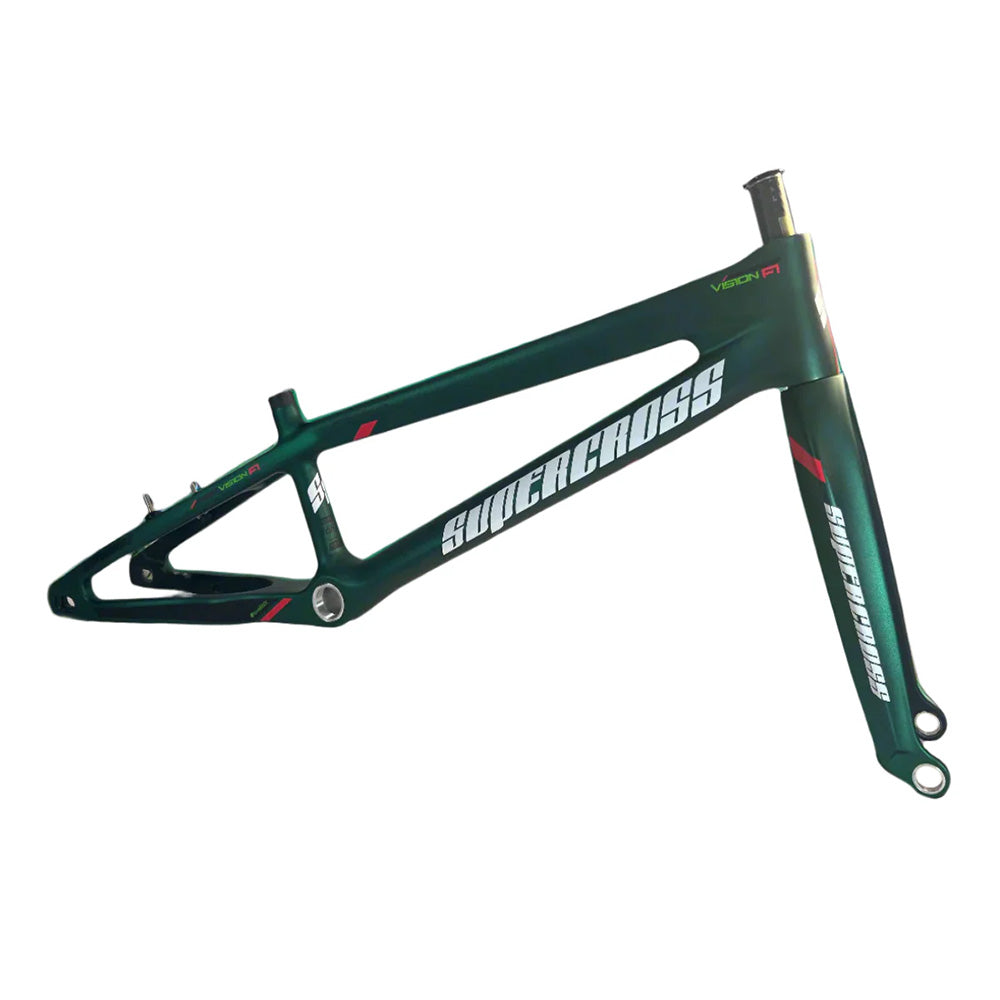

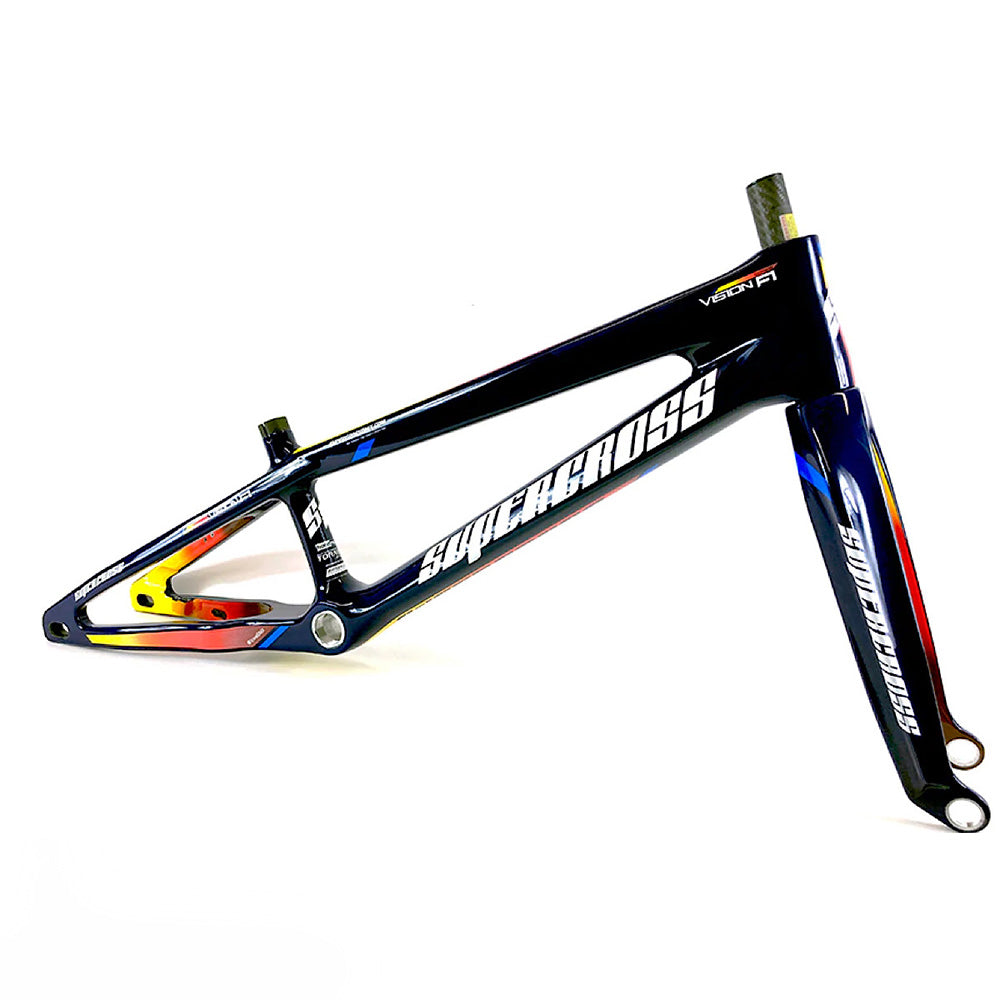

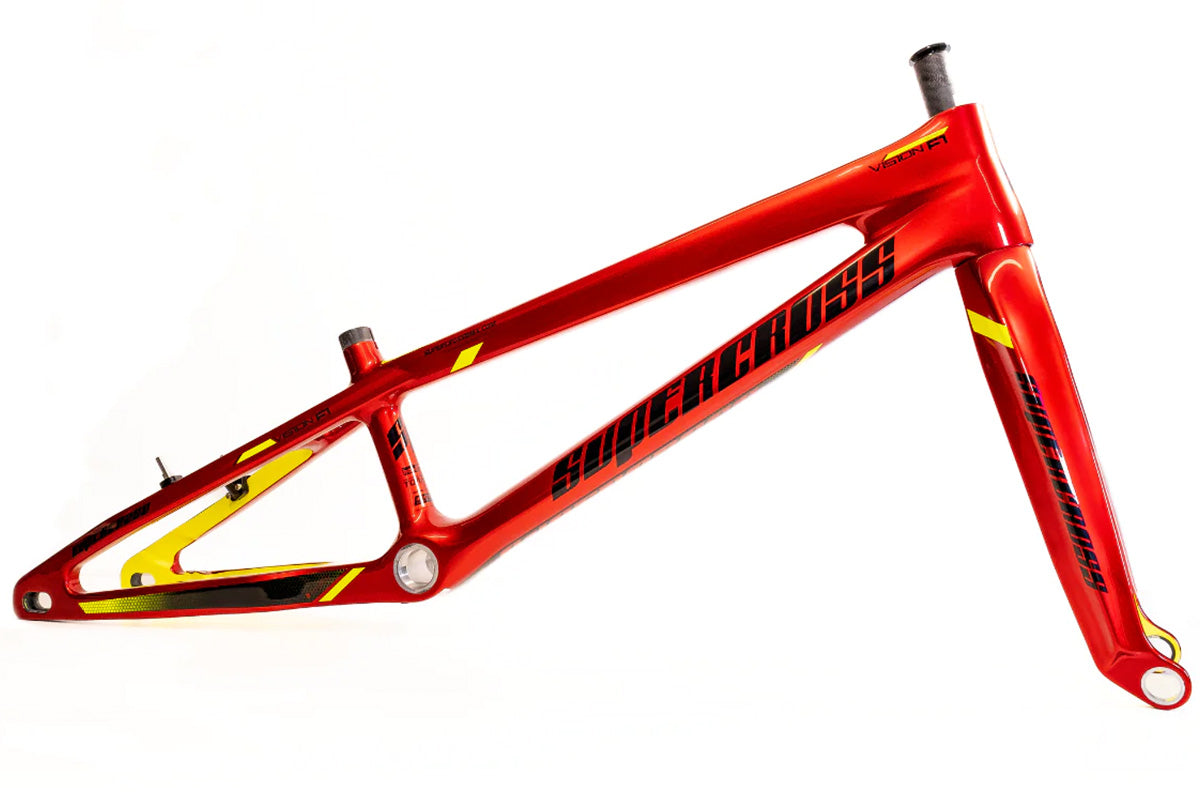

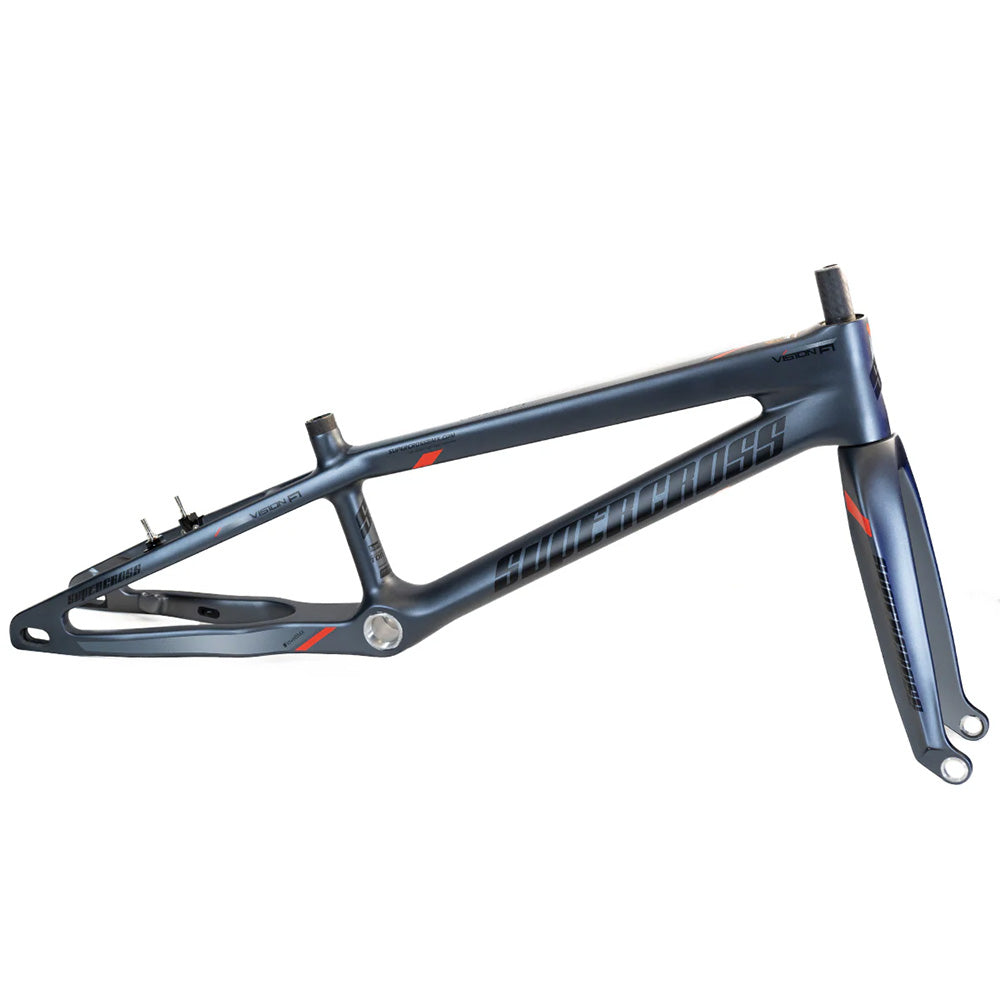

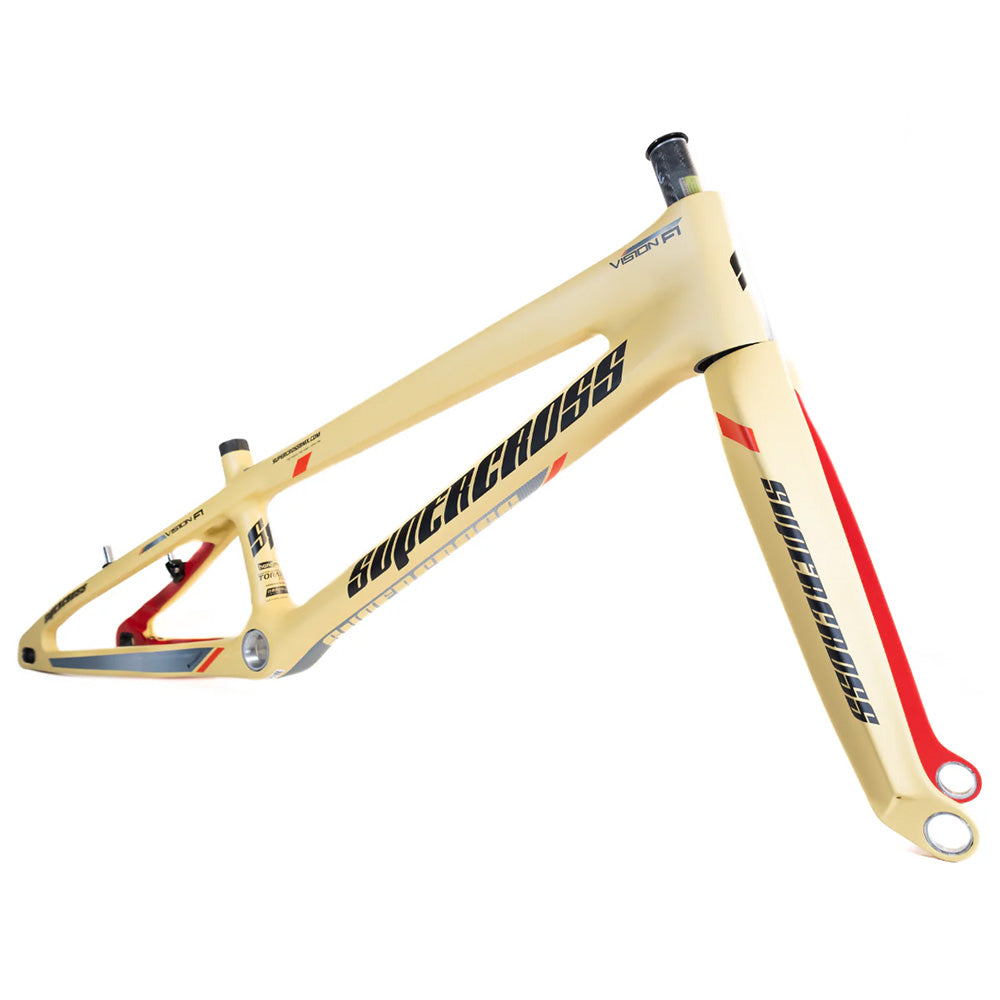

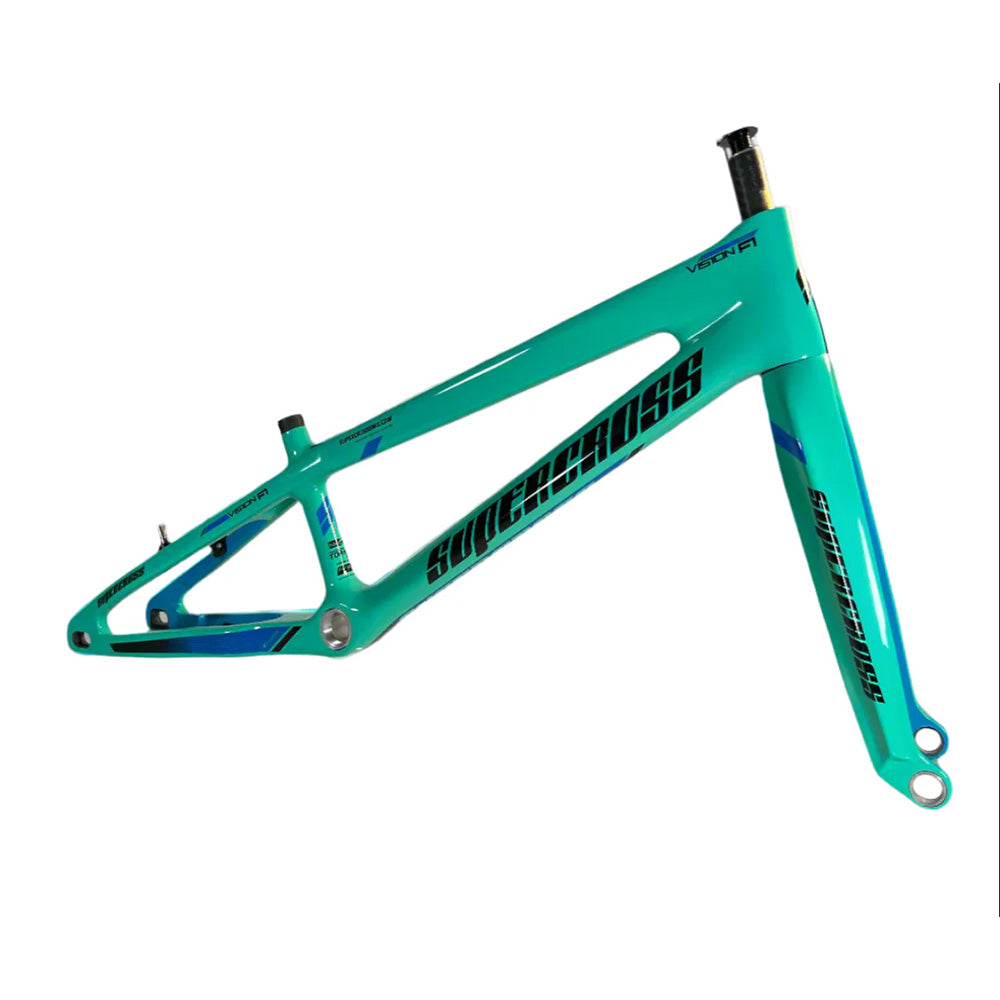

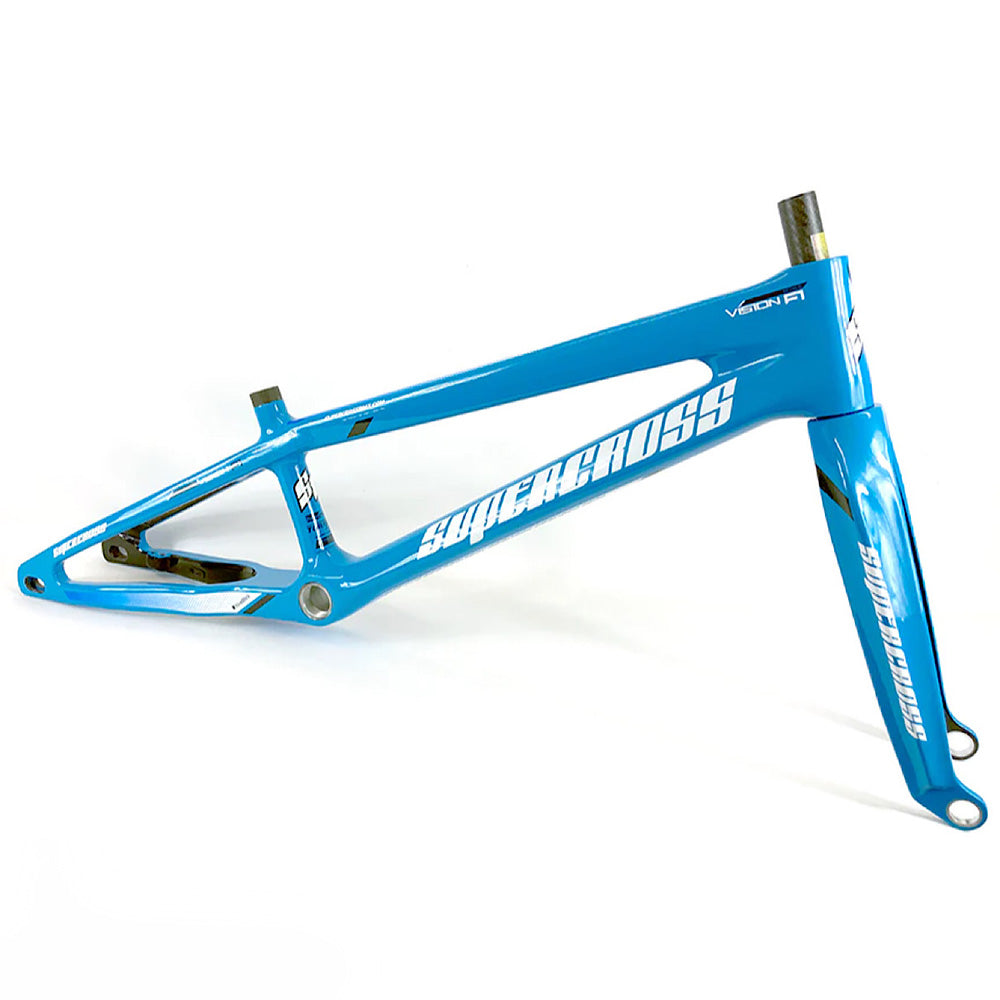

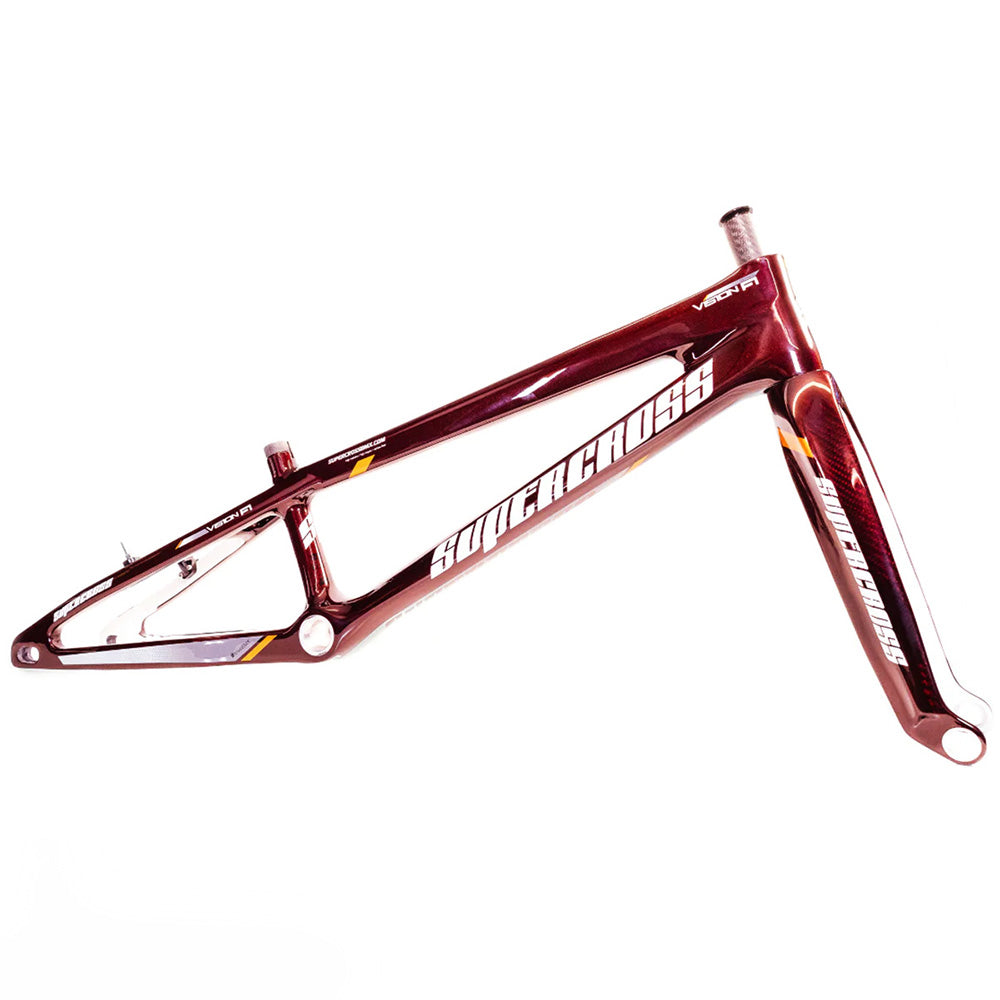

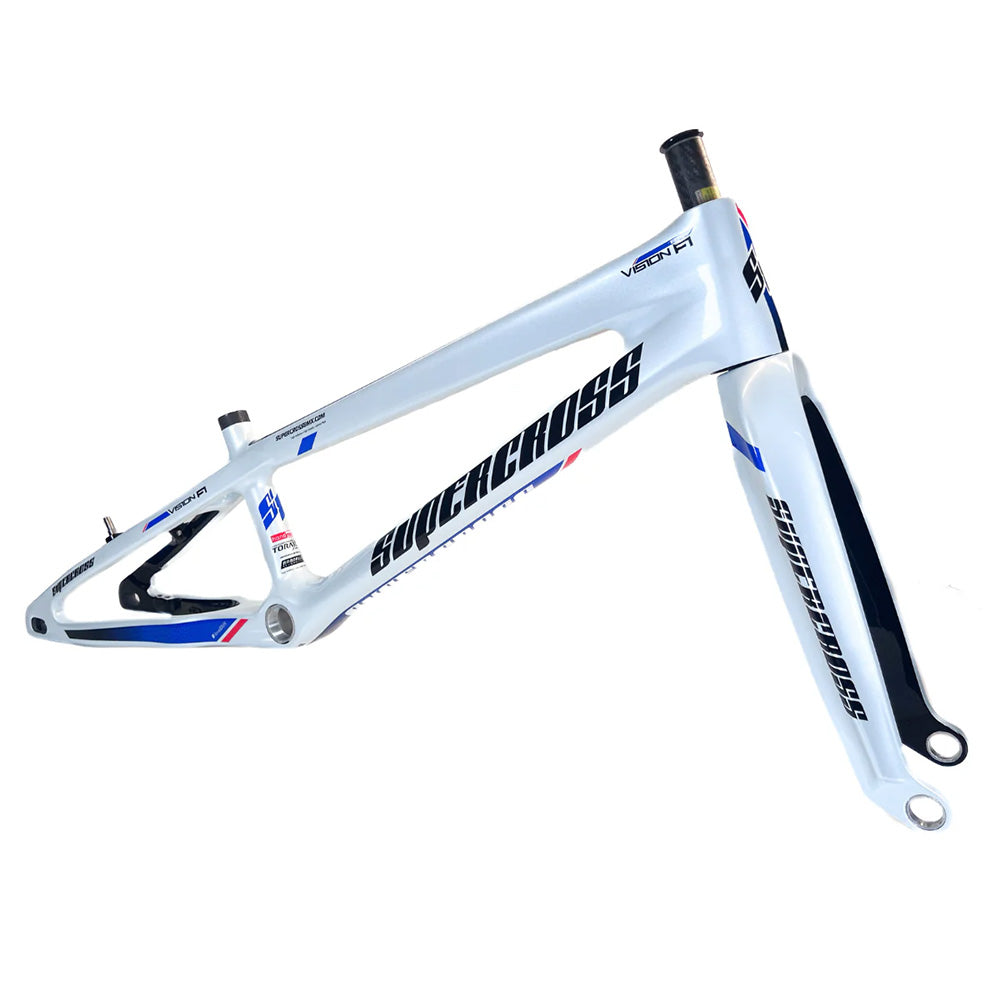

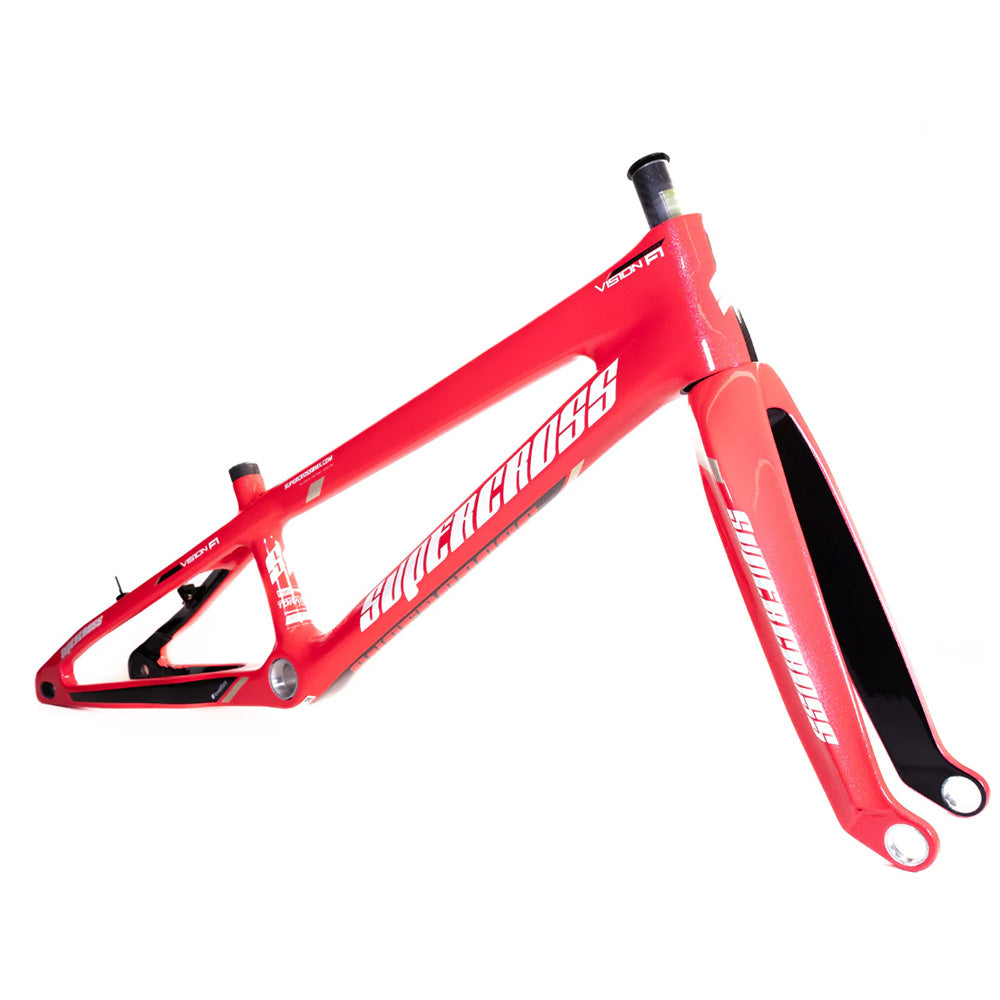

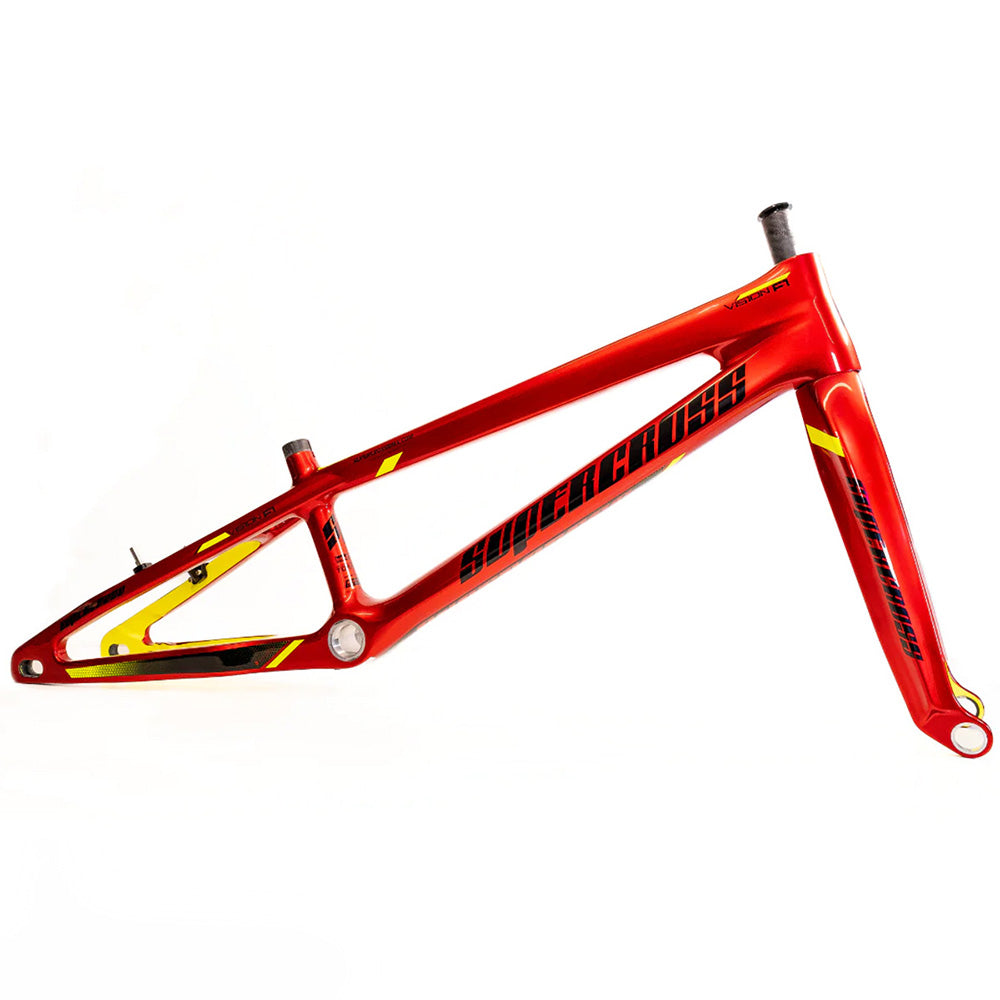

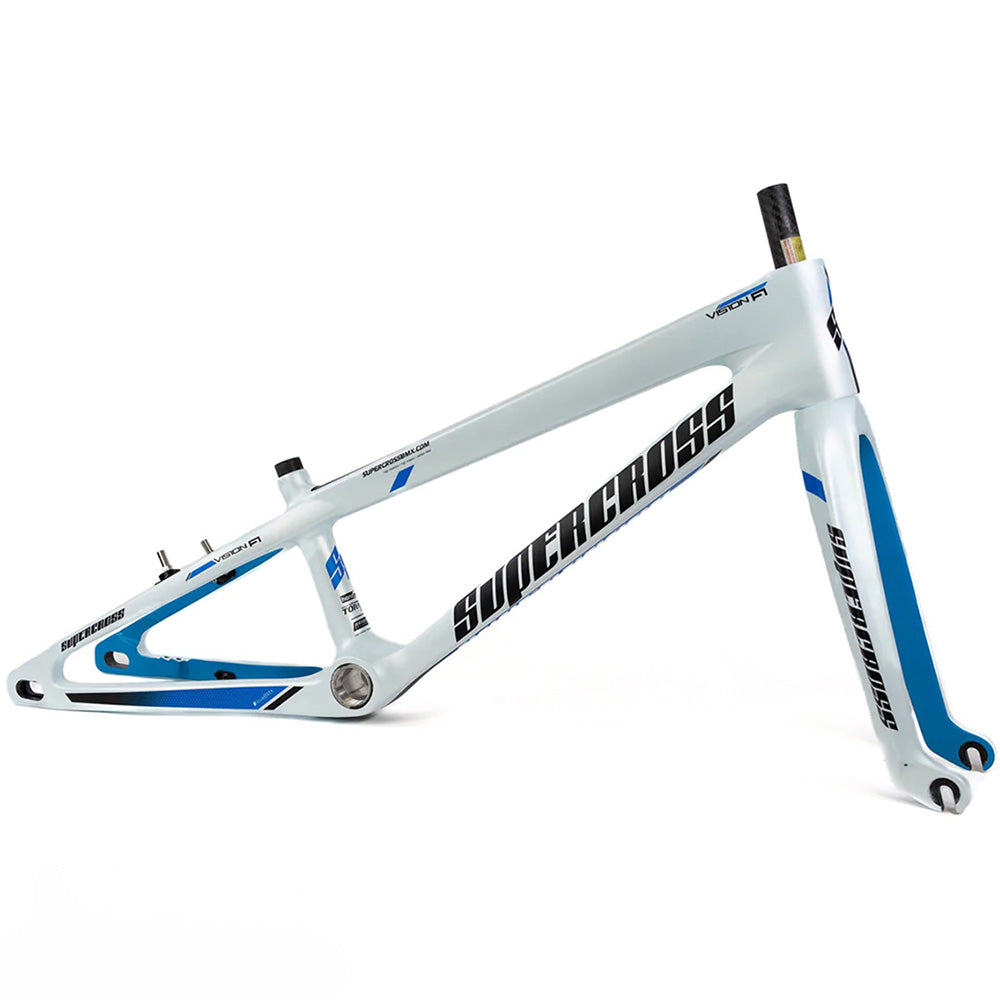

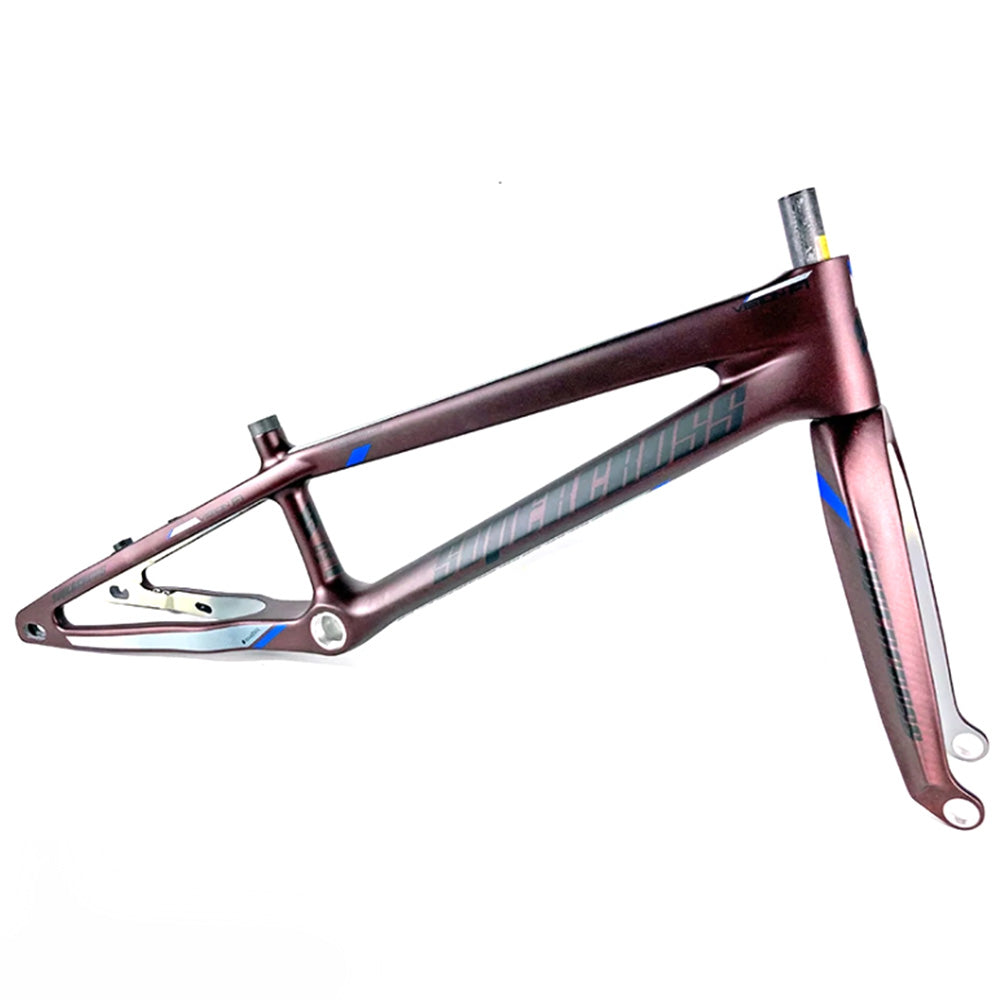

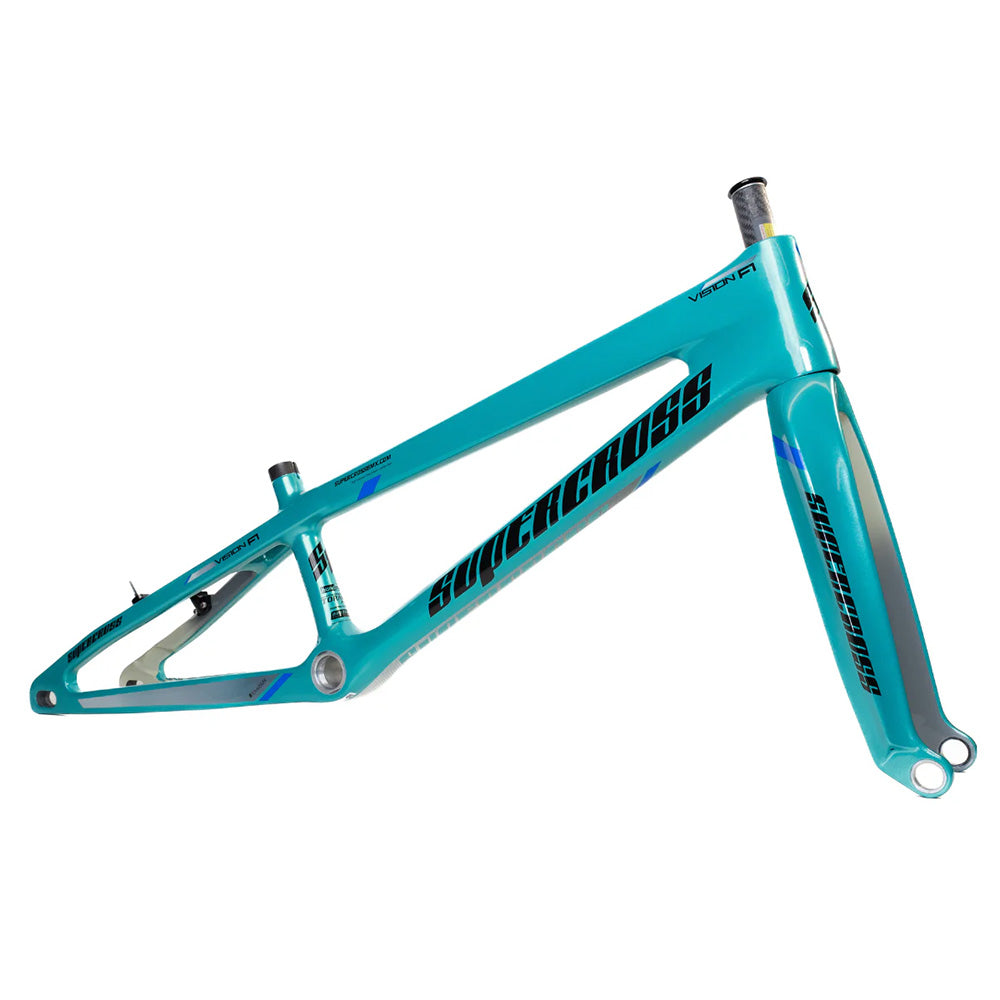

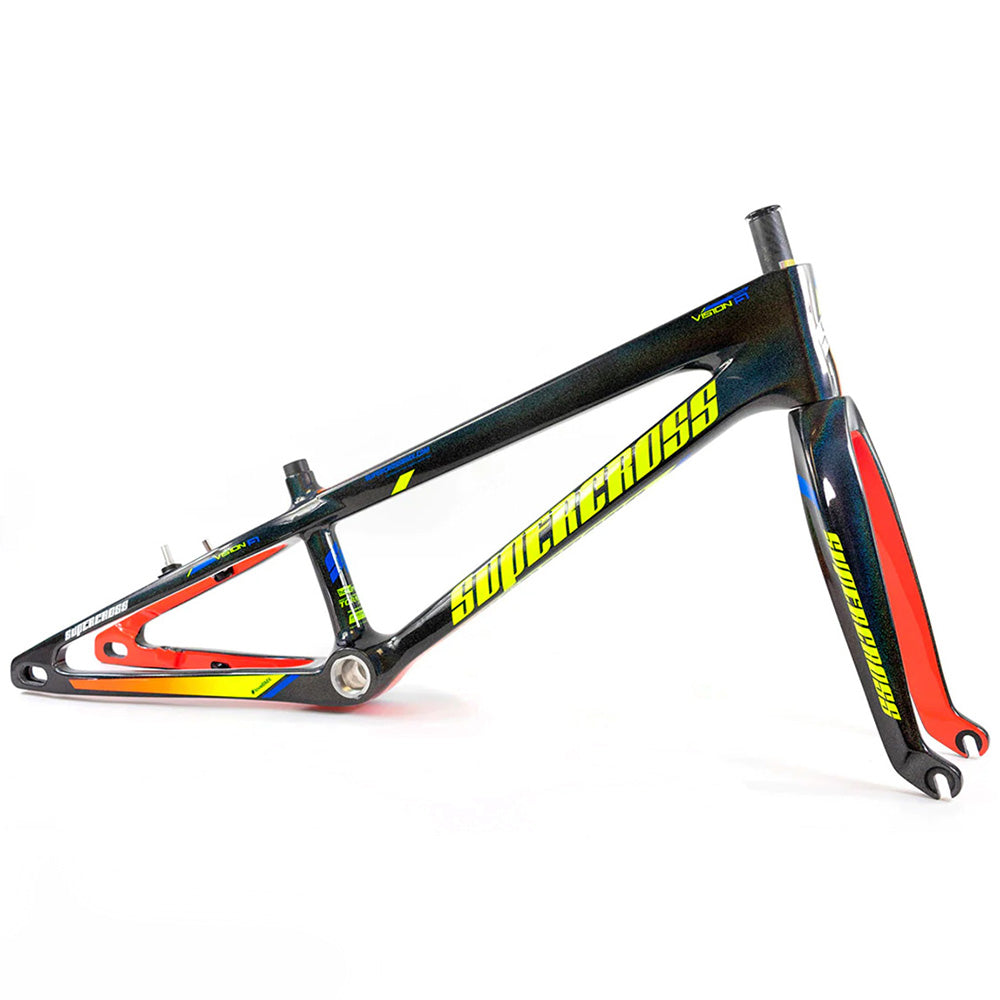

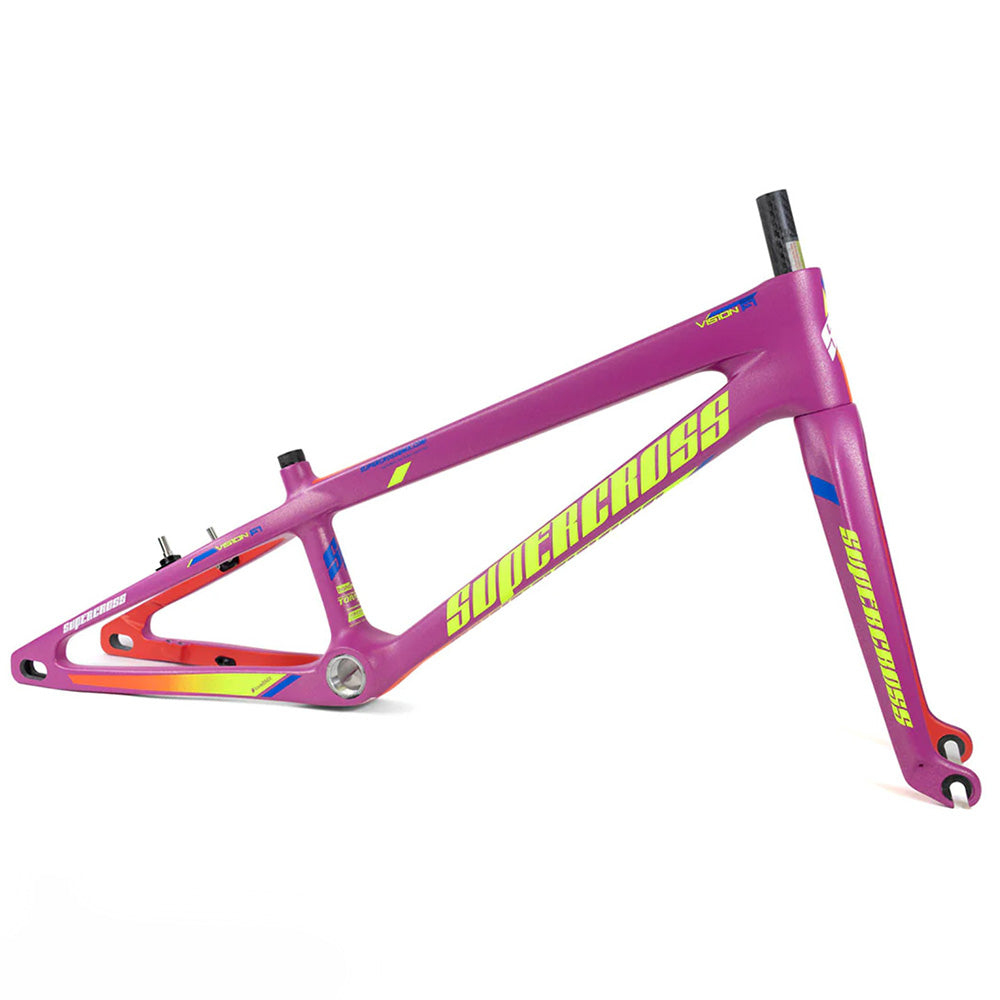

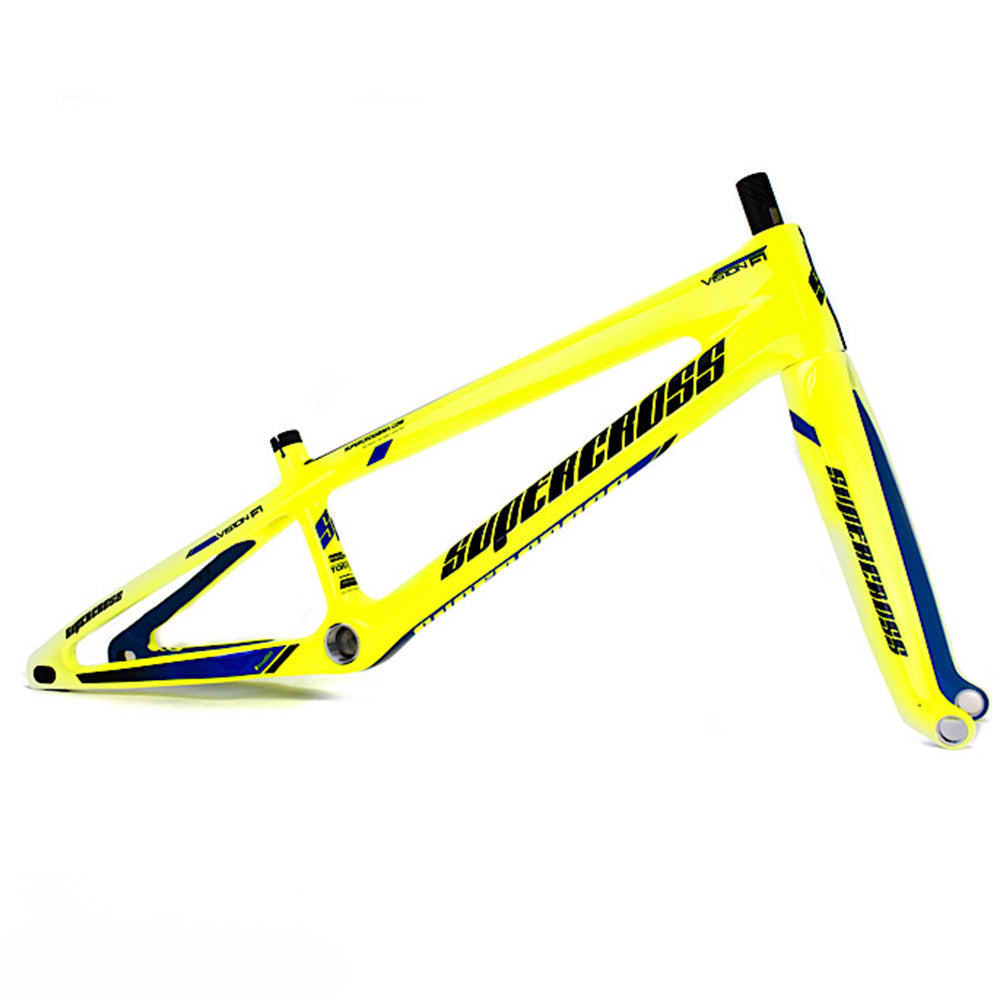

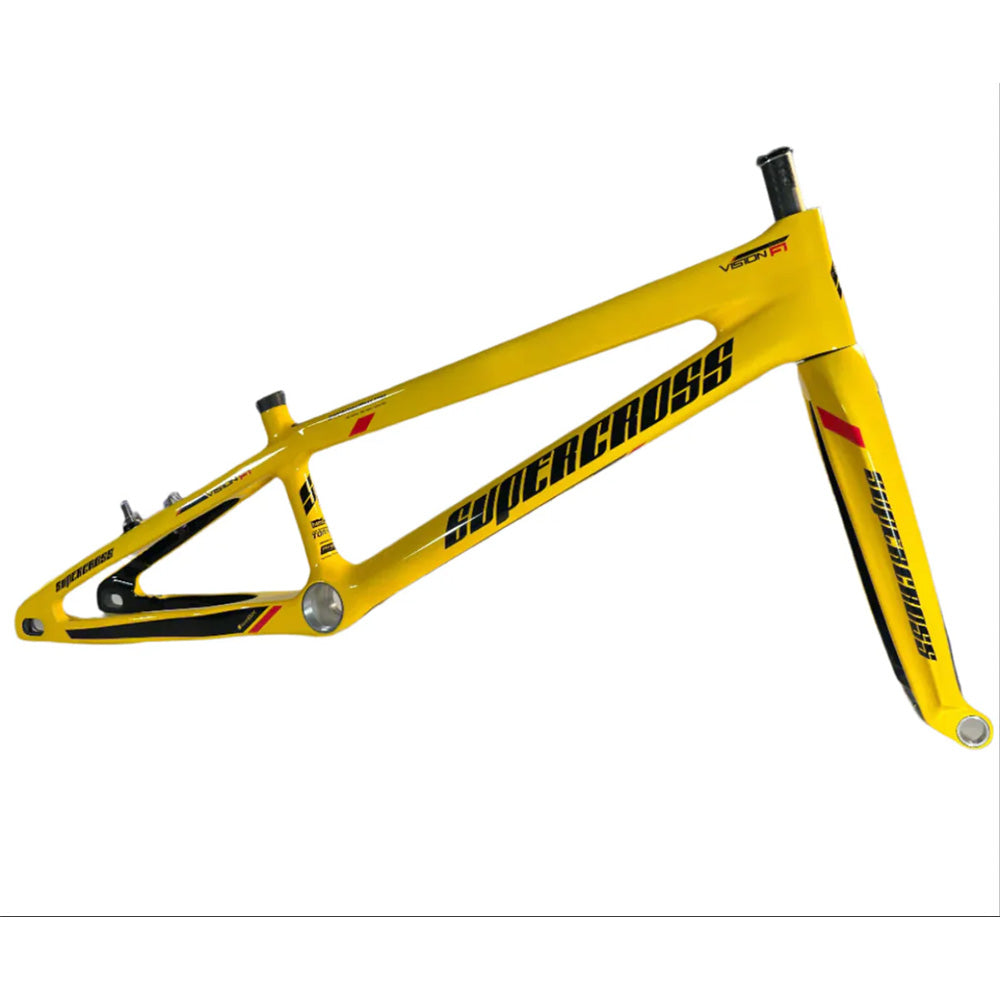

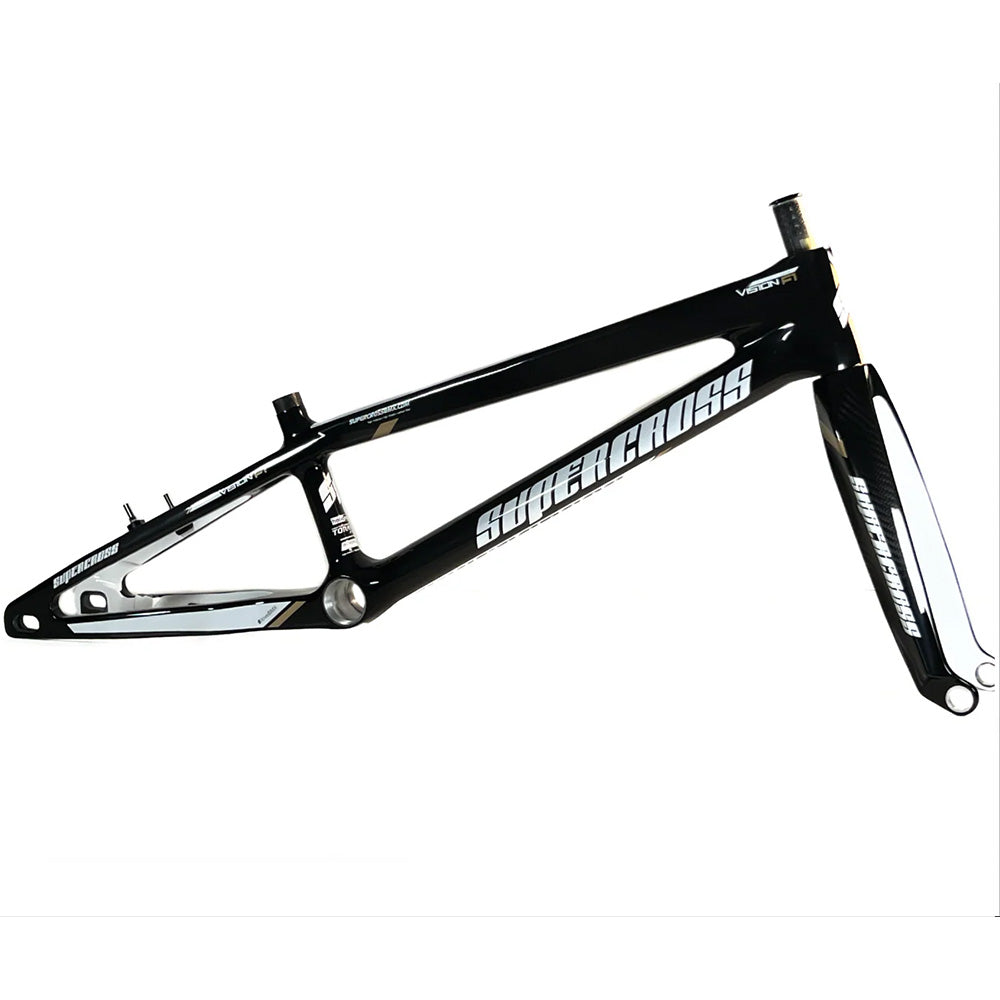

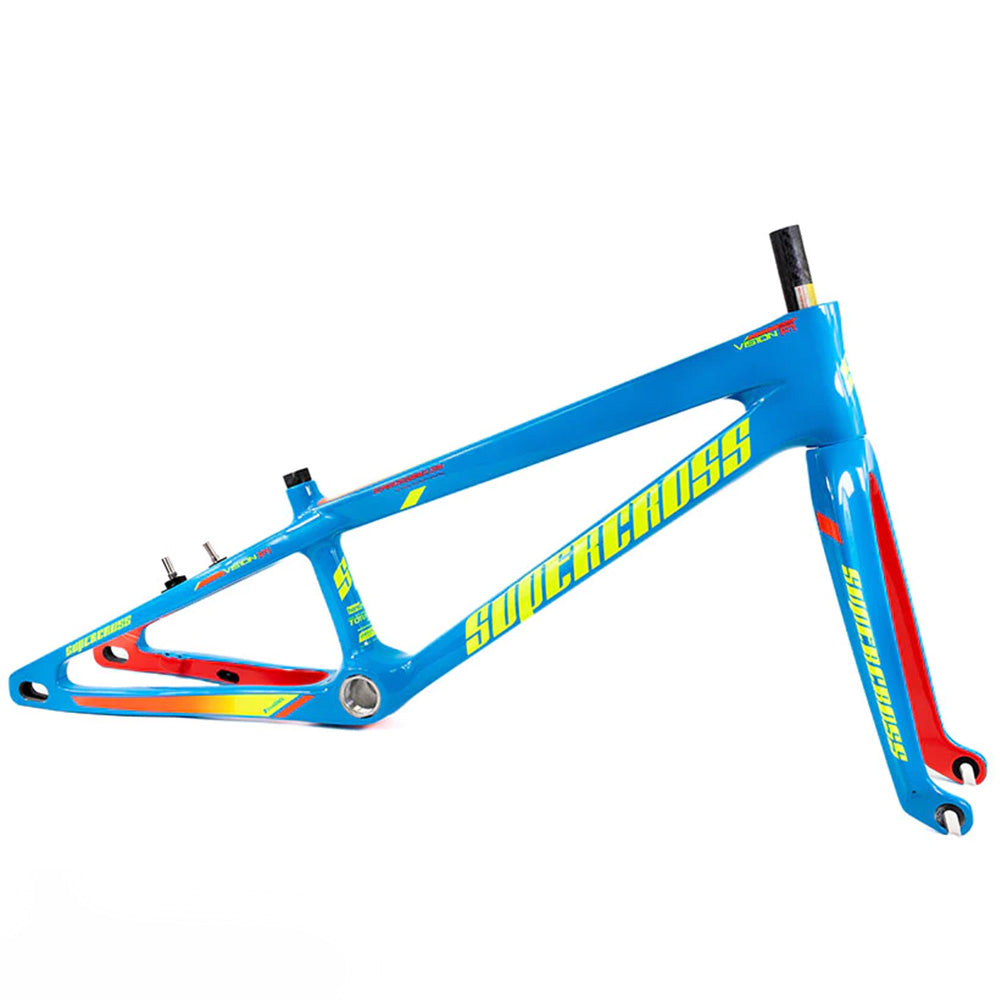

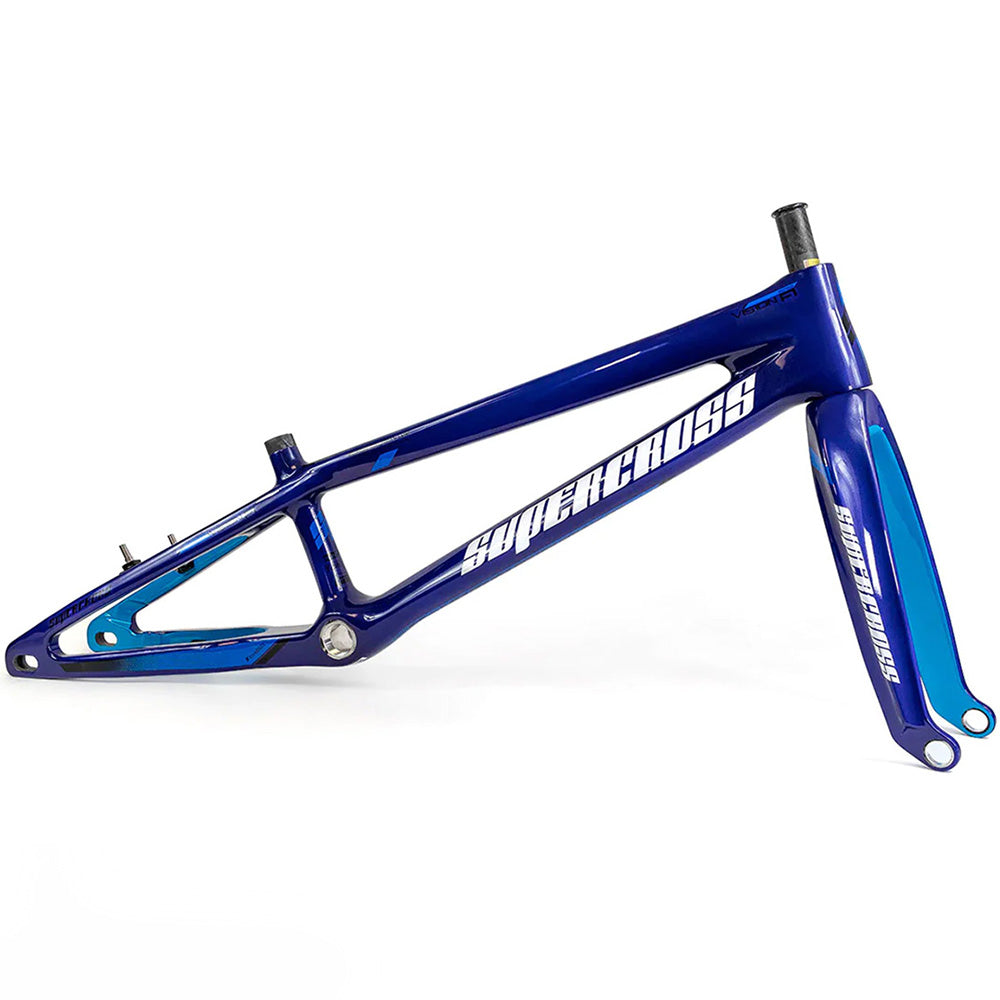

The Latest carbon fiber chassis from Supercross BMX. This package includes the VISION F1 frame, Carbon fiber fork, Speedline headset, adapters, and so much more!

The VISION F1 Chassis Kit is lighter and stronger than previous Supercross Carbon frames. As always, it's presented in various colors to match any style.


Each Supercross BMX VISION F1 Chassis Kit Contains:

- VISION F1 Frame

- Matching color Fork

- Sealed Bearing Headset

- Steer Tube Top Cap

- 20mm Adapters

- Hydraulic Disk Brake Adapter Kit

- Mechanical Disk Brake Adapter Arm

- Removable V- Brake Mounts

- 2 Sets of FLIP/CHIP's ( 1-15mm set and 1-10mm ( 3/8" ) set )

- Chain Idler / Guide

This is a complete Racing Chassis that’s ready to replace your current bike or become a base for an entirely new build!



GEOMETRY



SUPERCROSS BMX VISION F1 CARBON RACE FRAME GEOMETRY CHART



VISION F1 Carbon Pro Pro Plus Pro XL Pro XXL Pro XXXL
A. Top Tube Length 20.5" 20.75" 21.25" 21.75" 22.25"
B. Chainstay length 15.0" 15.0" 15.2" 15.2" 15.2"
C. Steertube Angle 74.5º 74.5º 74.5º 74.5º 74.5º
D. Seat Tube Angle 70º 70º 70º 70º 70º
E. Bottom Bracket Height 11.6" 11.6" 11.6" 11.6" 11.6"
Seat Post Size 27.2mm 27.2mm 27.2mm 27.2mm 27.2mm
Headset Type 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated 1 1/8" - 1.5" Integrated
Wheel Size 20" X 1.75" 20" X 1.75" 20" X 1.75" 20" X 1.75" 20" X 1.75"



VISION F1 Carbon Junior Expert Expert XL Expert XXL
A. Top Tube Length 18.5" 19.5" 20" 21"
B. Chainstay length 12.5" 13.75" 14.0" 14.25"
C. Steertube Angle 73.5º 74º 74º 74º
D. Seat Tube Angle 70º 70º 70º 70º
E. Bottom Bracket Height 10.7" 11.2" 11.2" 11.25"
Seat Post Size 22.2mm 22.2mm 22.2mm 22.2mm
Headset Type Campy Integrated Campy Integrated Campy Integrated Campy Integrated
Wheel Size 20" X 1" 20" X 1 3/8" 20" X 1 3/8" 20" X 1 3/8"
